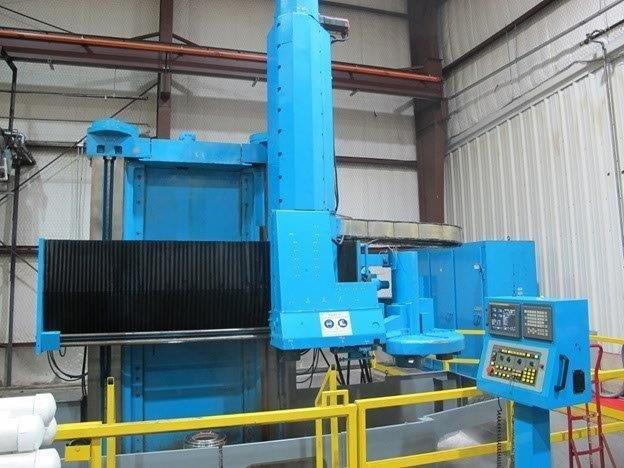

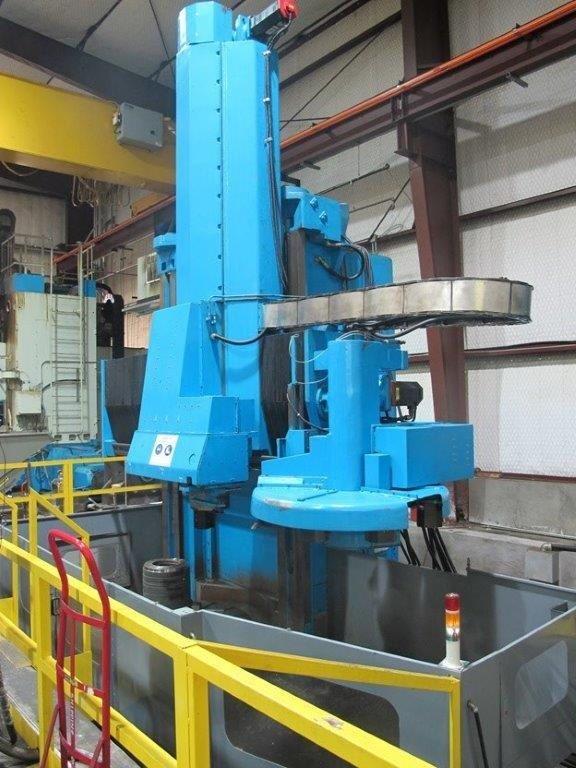

Remfg Bullard Dyna-Tape 56" HC

Vertical Boring Mills, VTL, VBM, CNC • Stock #30877

Machine Highlights

Fanuc 21i-TB, 56" Chuck, 68" swing, 85" under rail, 320 rpm, 75 hp, Ram head, 16 atc, 71" Ram Stroke

YearRemfg

ManufacturerBullard

ModelDyna-Tape 56" HC

ControlFanuc 21i-TB/crt

Stock #30877

Call (256) 980-1200

Specifications

Capacity:

Table Diameter56 "

Maximum Swing68 "

Maximum Height Under Rail85 "

Spindle:

Spindle Speed: Minimum2 rpm

Maximum320 rpm

Motor75 hp

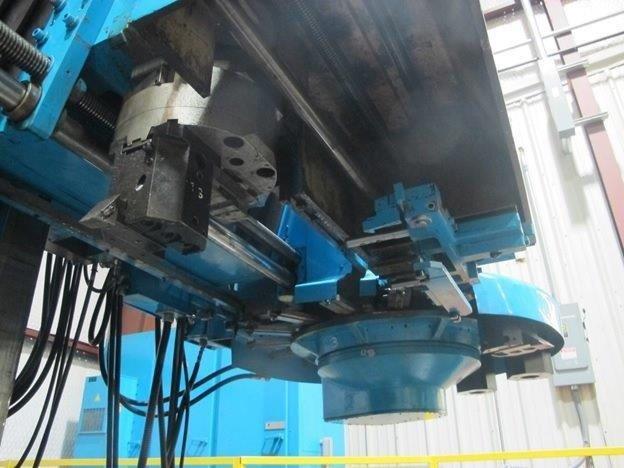

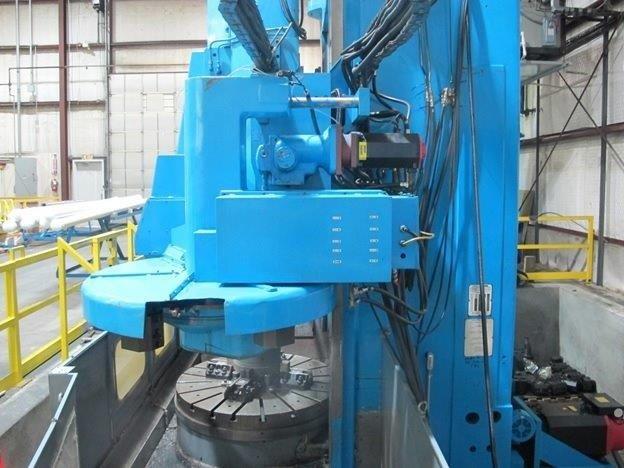

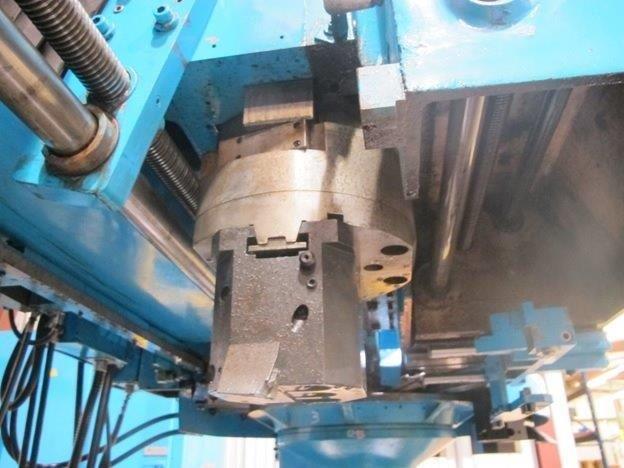

Ram Head

X-Axis (Longitudinal) Travel- "

Z-Axis (Veritcal) Travel71 "

Tool Changer:

Number of Positions16 atc

Equipment & Options

Equipped With:Fanuc 21i-TB CNC Control

56" 4-Jaw Chuck

16 Position Automatic Tool Changer

Chuck Guarding

Way Covers on Cross Rail

Fanuc Servo Drives and Motors

75 hp Fanuc AC Table Drive Motor

Large Quanity of Tool Holders

Machine Overview

This Remfg Bullard Dyna-Tape 56″ HC CNC Vertical Boring Mill / VTL provides substantial capacity for large-diameter turning applications. Its major specifications include 56″ table diameter, 68″ maximum swing, 85″ height under rail, speeds up to 68″, 75 hp main motor, and 16 atc-position tool changer.

The machine is equipped with Fanuc 21i-TB/crt. Additional equipment and options include Fanuc 21i-TB CNC Control, 56″ 4-Jaw Chuck, 16 Position Automatic Tool Changer, Chuck Guarding, Way Covers on Cross Rail, Fanuc Servo Drives and Motors, 75 hp Fanuc AC Table Drive Motor, and Large Quanity of Tool Holders. This combination makes it a strong candidate for shops seeking a well-equipped used machine with practical production capability.
