2023 Haas VM-6
CNC Machining Centers, Vertical • Stock #31140
Machine Highlights
X-64" Y-32" Z-30", 30 hp, 15000 rpm, 30+1 SMATC, Pcool, HiL, Auger, HSM, WIPS-Renishaw, coolant chiller
▶ VIDEO
Specifications
Equipment & Options
Machine Overview

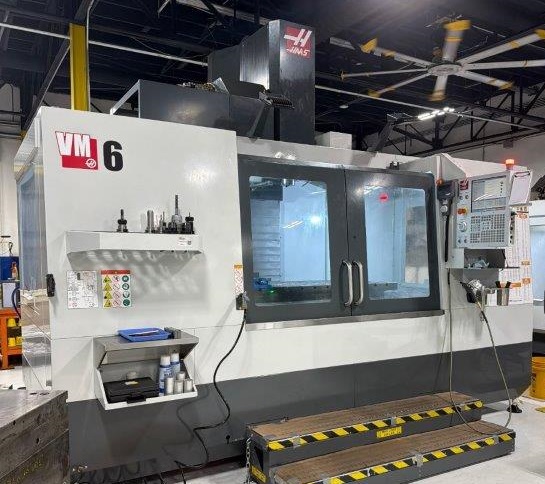

This 2023 Haas VM-6 Vertical Machining Center offers a versatile combination of machining capacity, spindle performance, and production capability. It features 64″ X-axis, 32″ Y-axis, and 30″ Z-axis travels, a 28″ x 64″ work table rated for 4000 lbs, spindle speeds up to 4000 lbs, 30 hp spindle power, and a 30+1 atc automatic tool changer, providing a capable platform for precision machining and general production work.

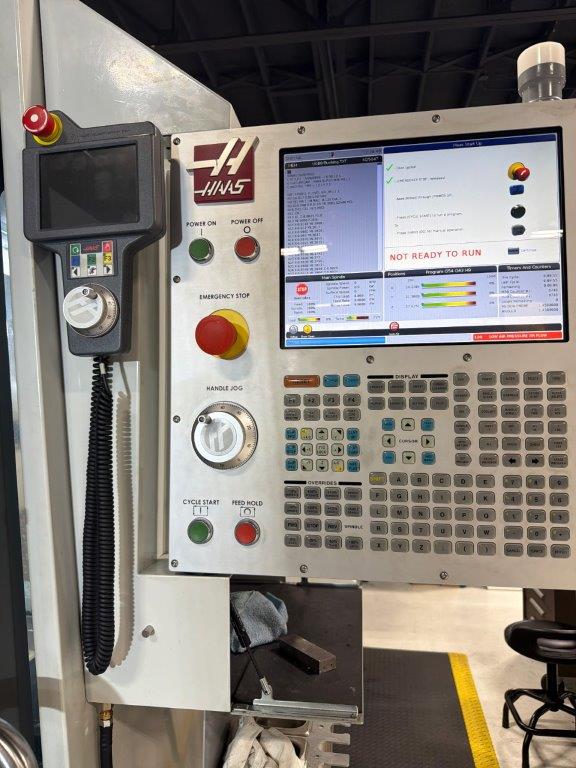

The machine is equipped with Haas CNC/CRT. Additional equipment and options include Haas CNC Control with 15″ Color LCD Monitor, Large Remote Jog Handle with Touchscreen Display, Ethernet Interface, Wifi, EPFDM, Advanced Tool Management, Media Display, HaasConnect, Safe Run, HaasDrop, Rigid Tapping, User-Definable Macros, Coord Rotation and Scaling, 1GB Memory, ECO Mode, Programmable Coolant, Nozzle, Auto Air Gun, Chip Auger, Window Air Blast, 95 Gal Coolant Tank, Chip Tray, Filter, Multi-Stage Coolant Pump, Chip Washdown Feature, 15,000 RPM, 40 taper, 30 hp spindle, Wireless Intuitive Probing System-Renishaw, and High Intensity Lighting. This combination makes it a strong candidate for shops seeking a well-equipped used machine with practical production capability.
