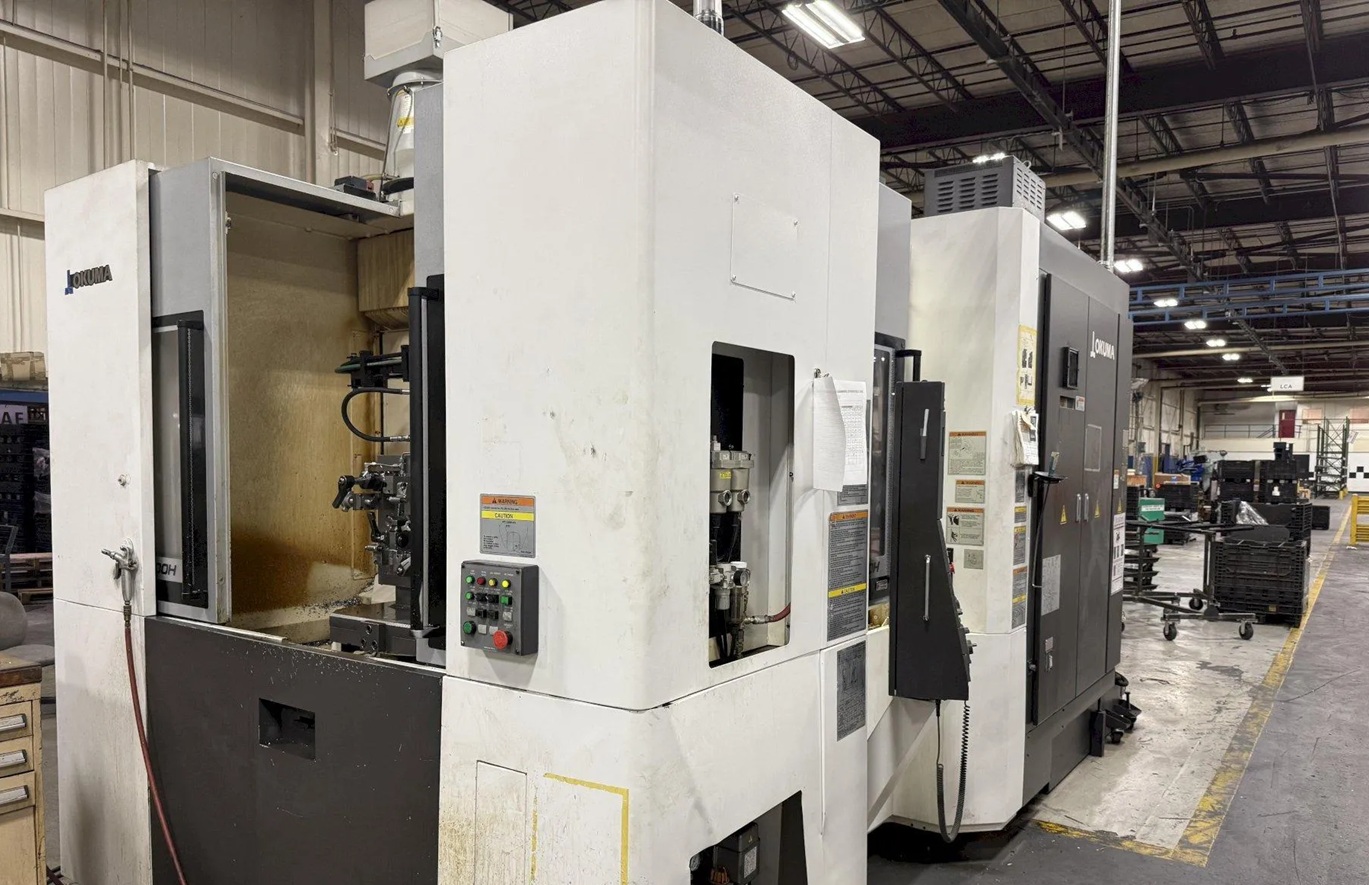

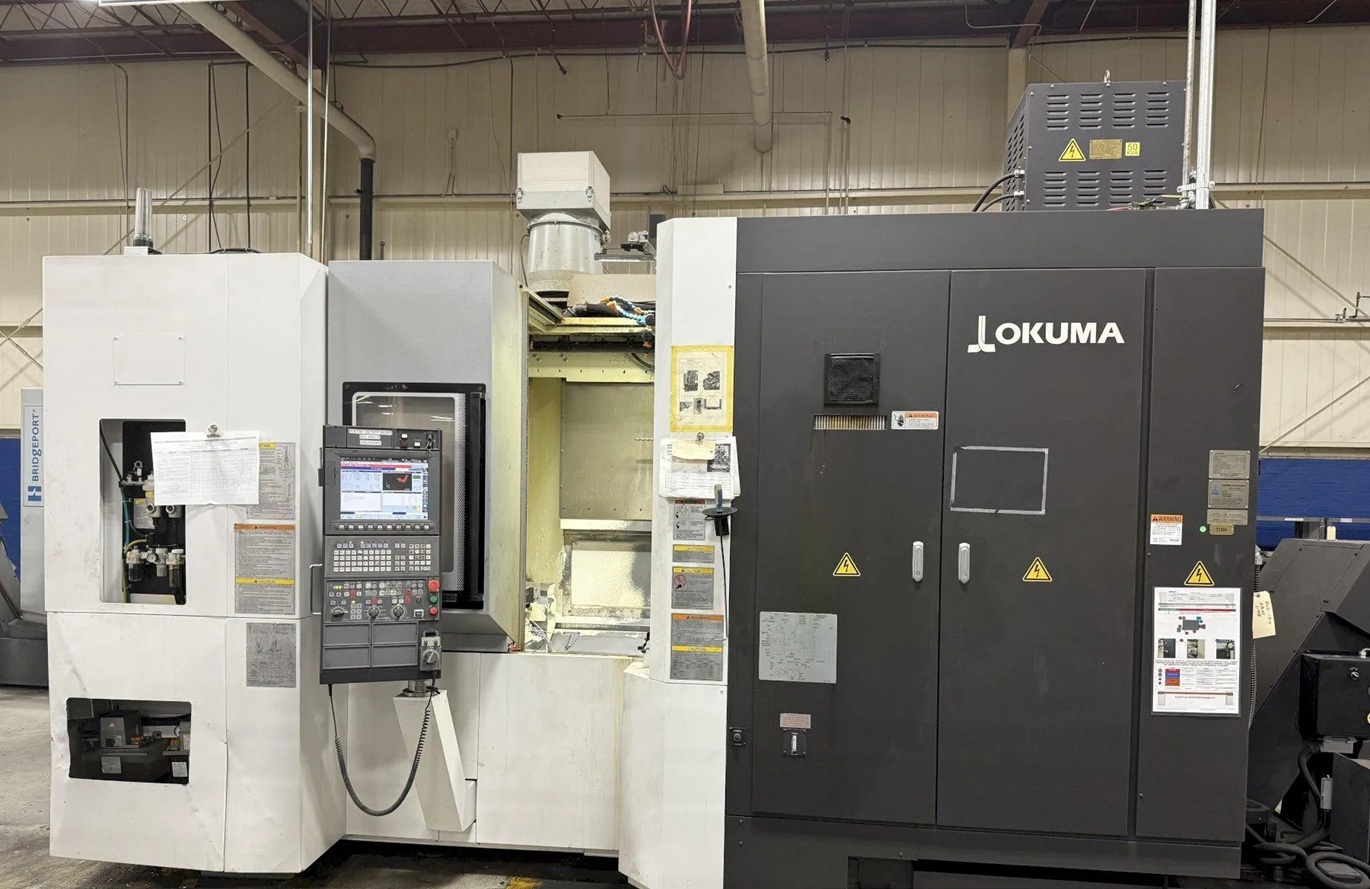

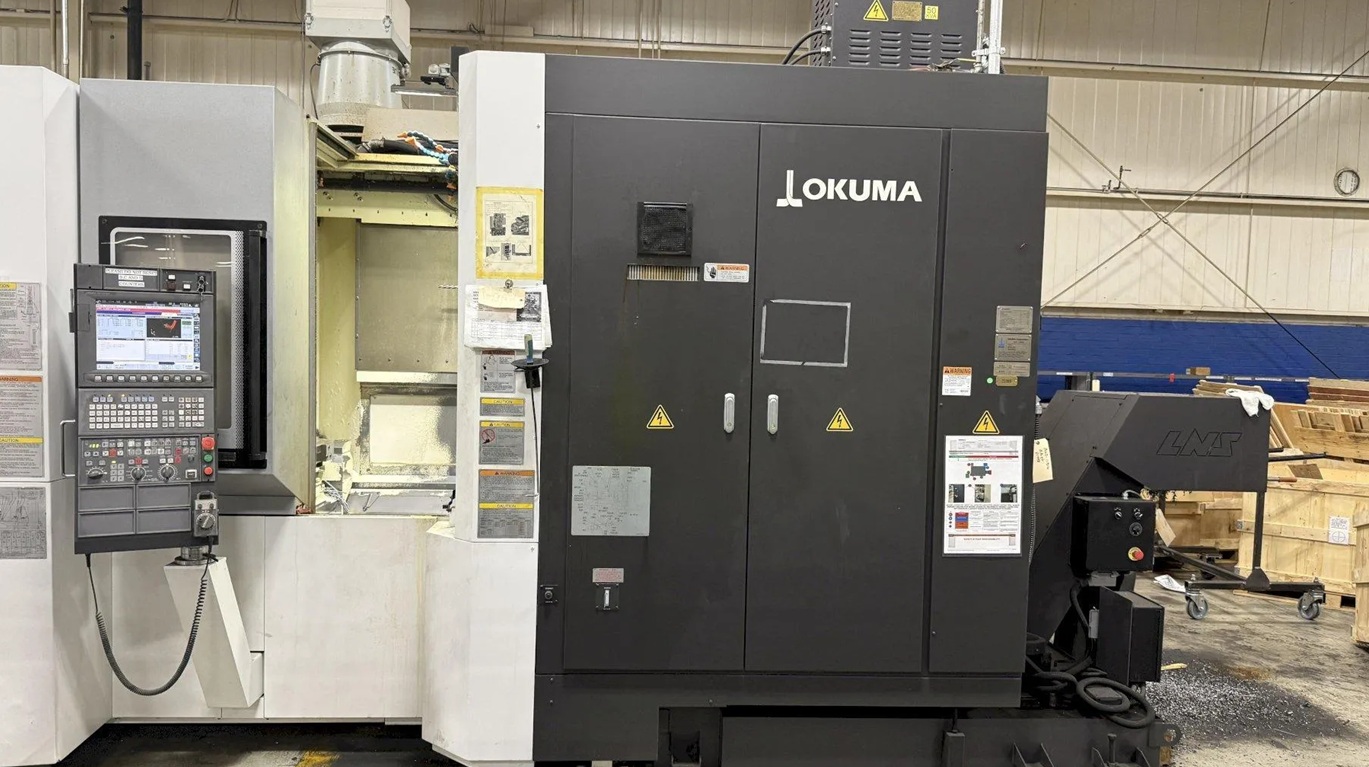

2018 Okuma MB-5000H
CNC Machining Centers, Horizontal • Stock #31177
Machine Highlights
(2) 19.7" Pllts, Full 4-axis, X-29.9" Y-29.9" Z-29.9", 15000 rpm, Cat40, 40 hp, 64 atc, Thru Spdl Coolant, Chip Conveyor
Year2018
ManufacturerOkuma
ModelMB-5000H
ControlOSP-P300MA
Stock #31177
Specifications
Table/Pallet:
Width19.7 "
Length19.7 "
Number of Table/Pallet(s)2
Indexing0.001 °
Maximum Load1100 lbs
Travels:
X-Axis Travel29.9 "
Y-Axis Travel29.9 "
Z-Axis Travel29.9 "
Spindle:
Spindle Speed: Minimum (RPM)0 rpm
Maximum15000 rpm
Spindle Taper40
Main Motor (HP)40 hp
Tool Changer:
Tool Changer Positions64 atc
Equipment & Options

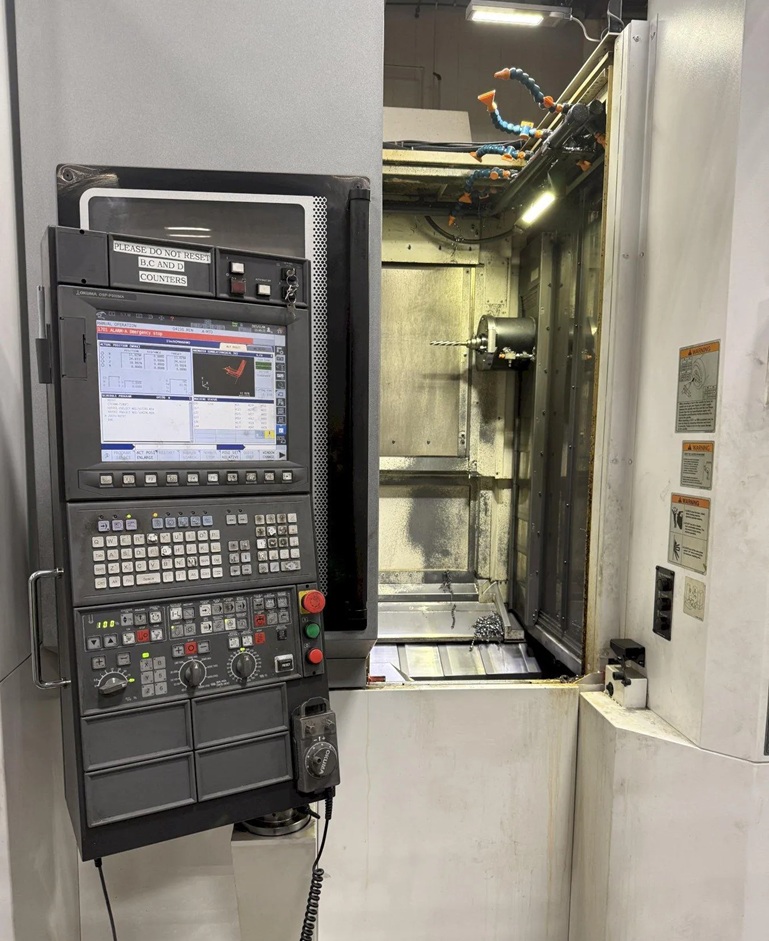

Equipped With:Okuma OSP-P300MA 4-Axis CNC Control
MP Systems R-Series High Pressure Coolant Unit
Hi Pressure Coolant Thru Spindle
Chip Conveyor
Coolant Tank & Pumps
Full B (4th) Axis Indexing - 0.001°
Hydraulic Clamping System
