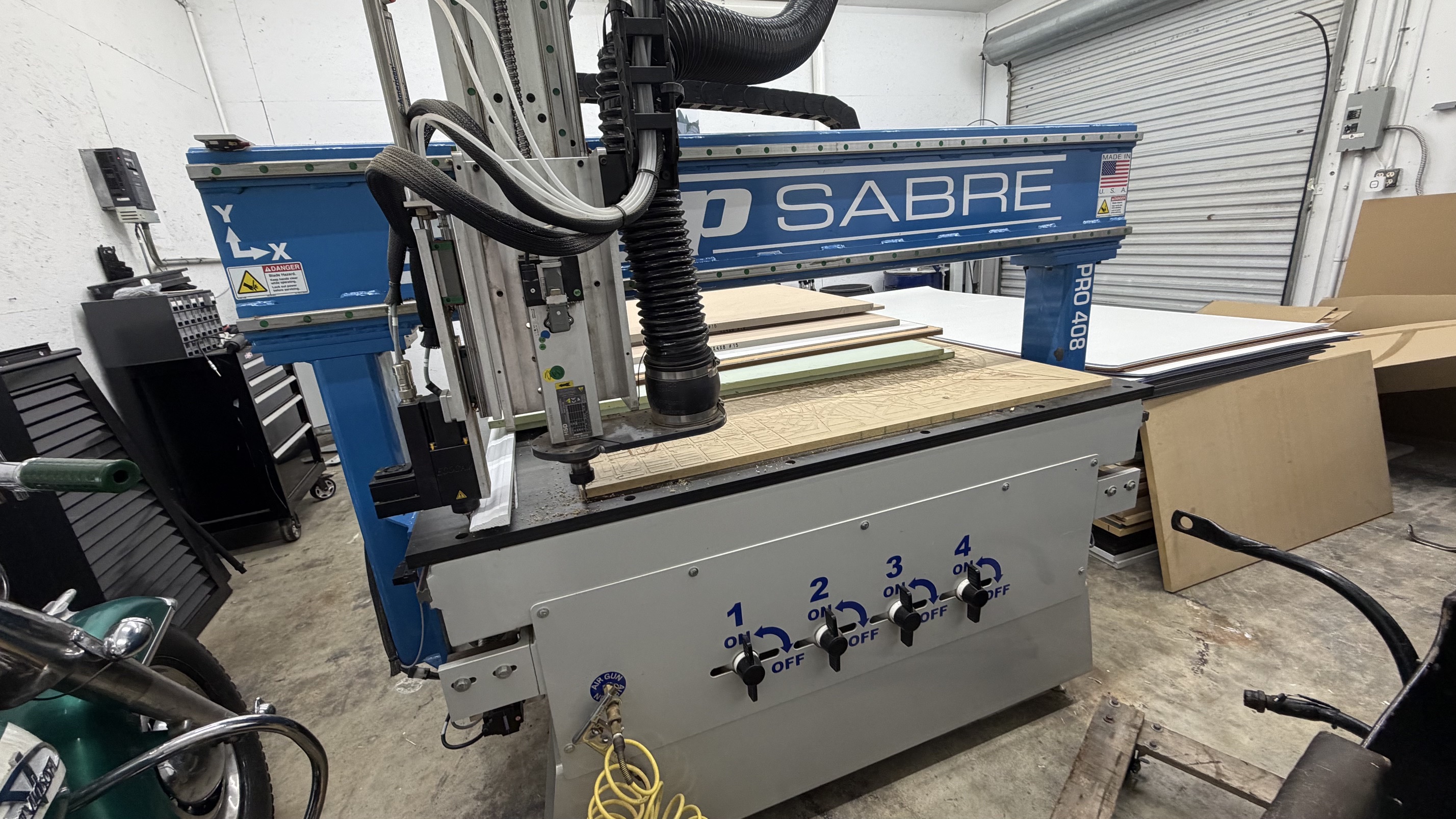

2023 ShopSabre Pro-408 CNC Router
CNC Machining Centers, Vertical • Stock #31182
Machine Highlights
60" x 96" x 12" Work Envelope, 18000 rpm, 4 hp
Year2023
ManufacturerShopSabre
ModelPro-408 CNC Router
ControlWINCNC Controller
Stock #31182
Specifications
Travels:
X-Axis Travel96 "
Y-Axis Travel60 "
Z-Axis Travel16 "
Spindle:
Spindle Speed: Minimum (RPM)0 rpm
Maximum18000 rpm
Main Motor (HP)4 hp
Equipment & Options
Equipped With:ShopSabre WINCNC Industrial Controller Hardware & Software.
ShopSabre Computer System - Full Size Desktop System with Solid State Hard Drive,
8GB Memory, 19" Flat Screen Monitor, Keyboard, Mouse.

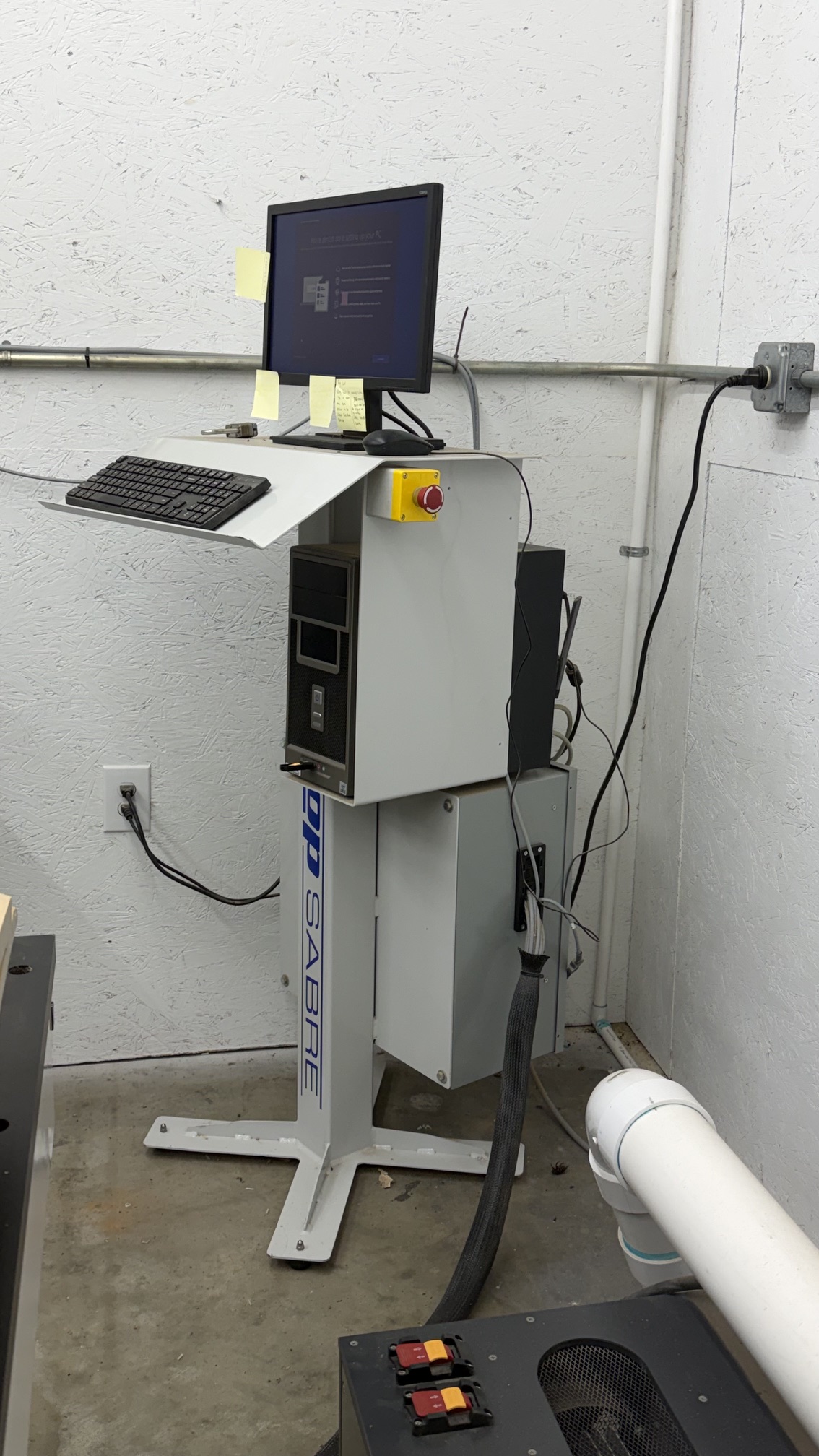

ShopSabre Auto Stabilization Steel Machine Operator Control Stand.
Vectric Vcarve Pro CAD/CAM Software.
Machined MDF Table Top.
Tool Measure Switch - Measures Tooling Height without Changing Z Height for Fast
Tool Change.
Options:3KW 4HP HSD 18,000 MAX RPM Spindle with VFD - Manual Change
Automated Software Control for Spindle On/Off
Automated Software Control for Spindle RPM
Z Axis Air Balancer for Locking Z on power down & Increases Overall Speed
Upgrade Dust Skirt with Containment Design
Phenolic Table Top for 408
T-Slot Installed Every 8 on Center in Standard Table Top with Clamp Kit for 408
Industrial Pop-Up Table Reference Pins

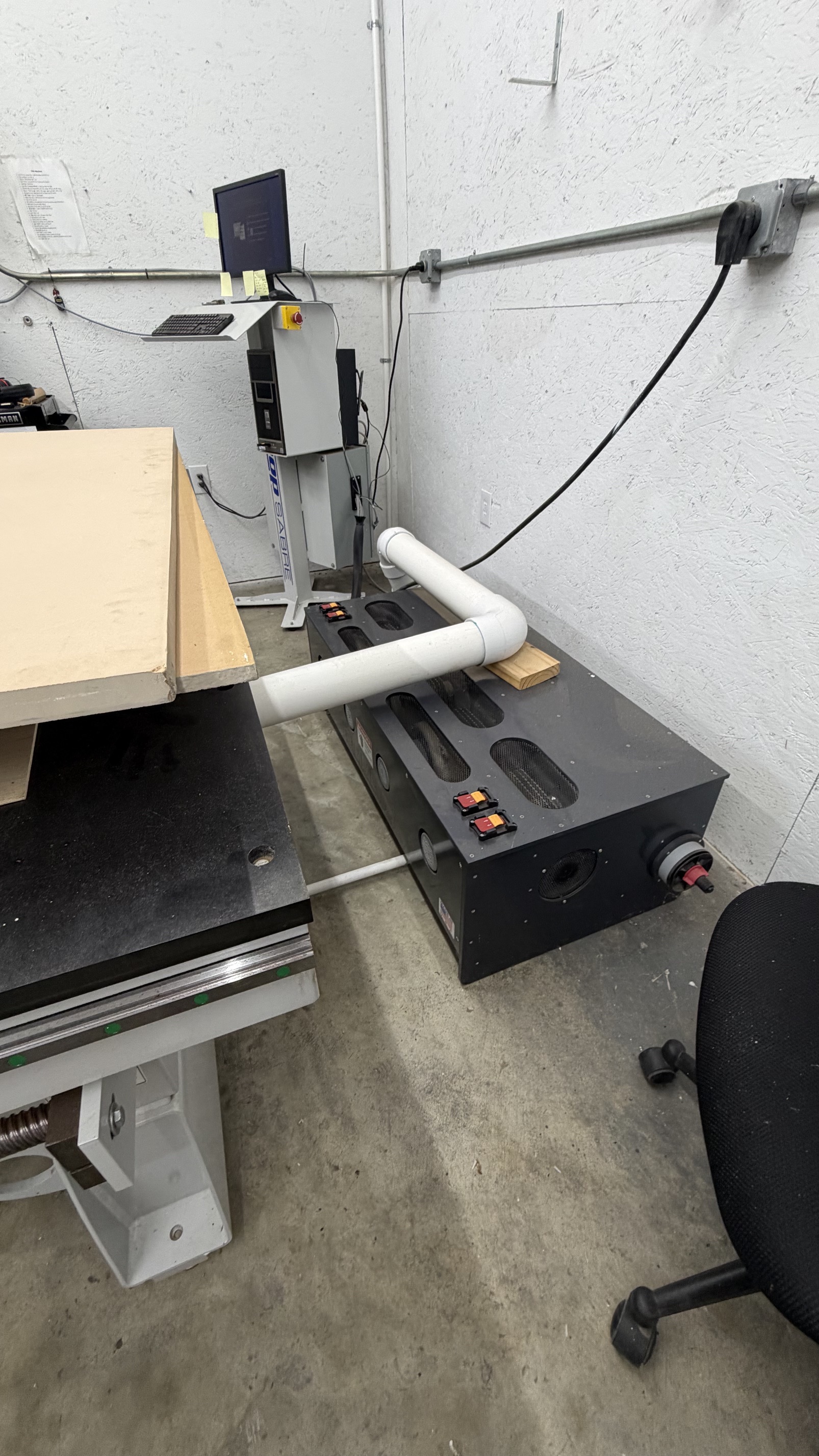

ShopSabre Single Phase F4 Vacuum System

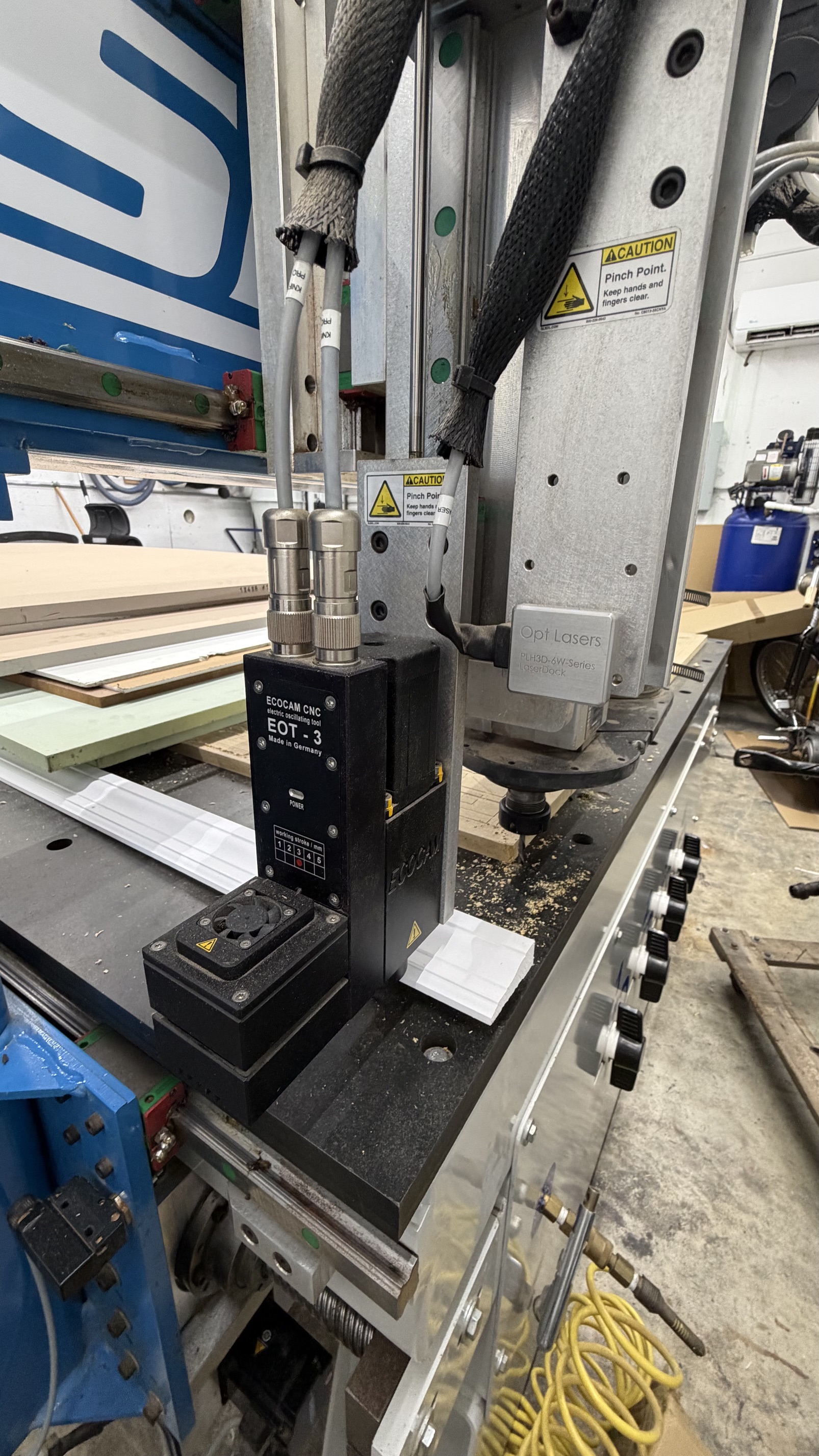

ECOCAM Tangential Oscillating Knife
ShopSabre Air Gun
Material Height Touch Pad - Electronic Z Setter
Maintenance Kit
Opt Laser - PLH3D-6W Engraving Laser Head
