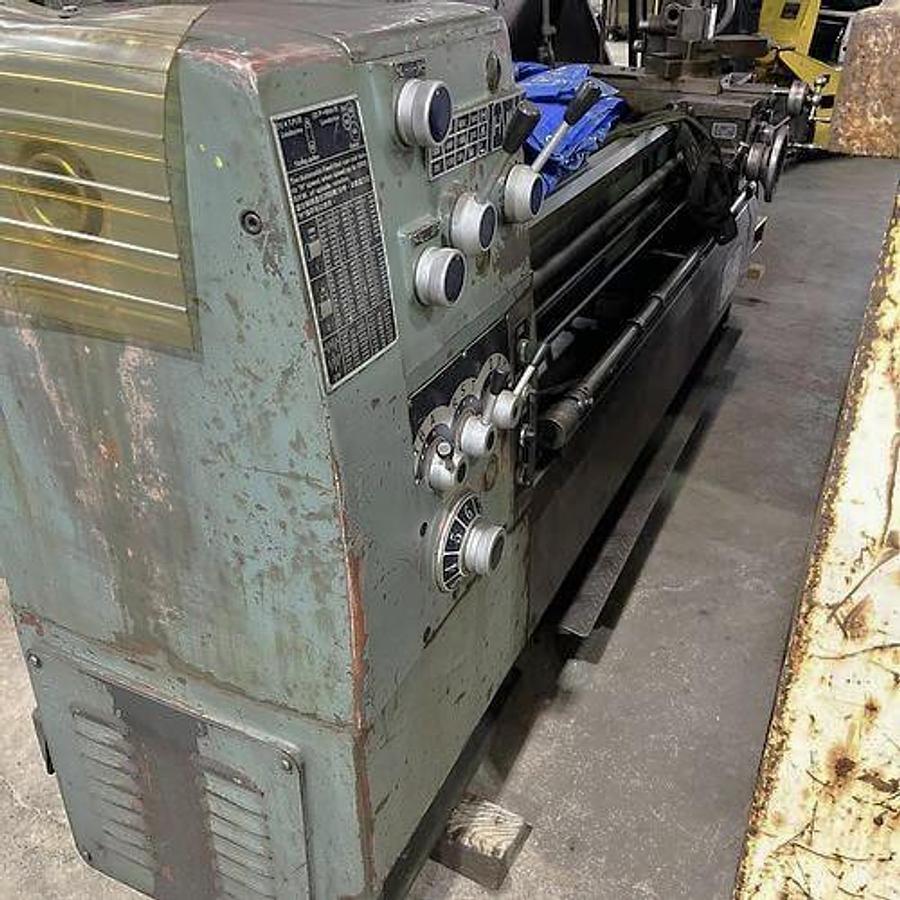

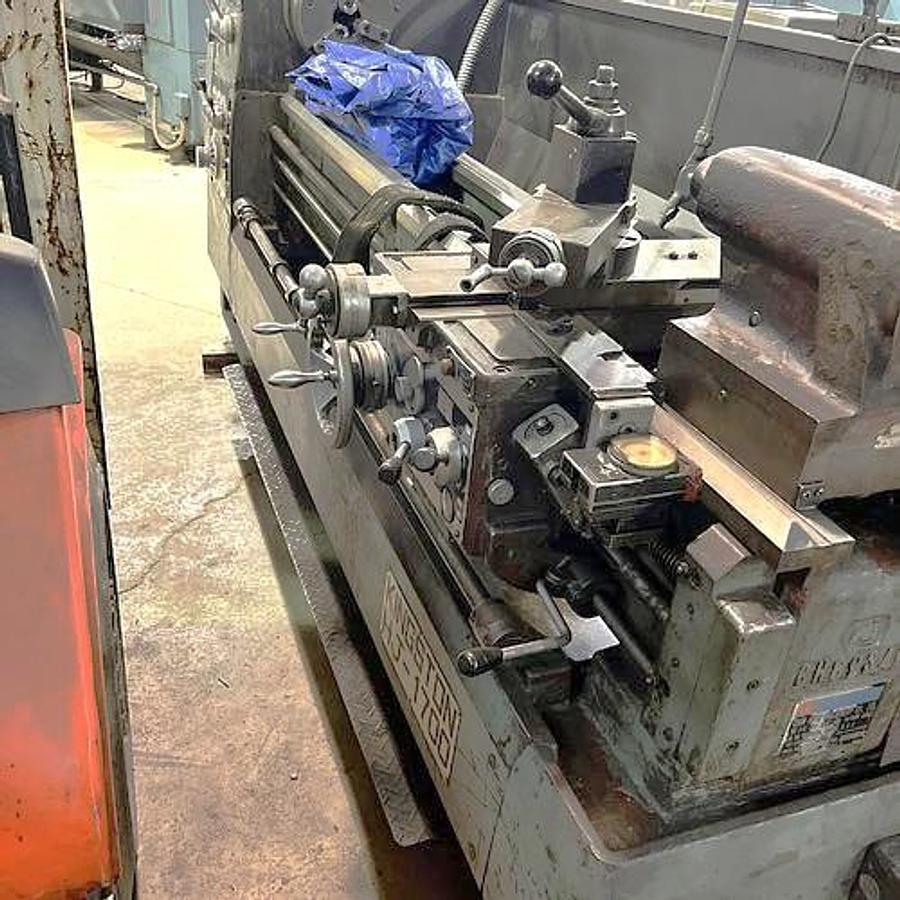

1989 Kingston HJ-1700
Lathes, Manual • Stock #31183
Machine Highlights
17" Swing, 67" centers, 1650 rpm, 7.5 hp, 12" 3-jaw chuck, Tool Post, tailstock, coolant
Year1989
ManufacturerKingston
ModelHJ-1700
Control
Stock #31183
Specifications
Capacity:
Swing17 "
Swing in Gap24 "
Swing Over Cross Slide/carriage10.6 "
Distance Between Centers67 "
Spindle:
Spindle Speed: Minimum (RPM)12 rpm
Maximum1650 rpm
Spindle Bore3.07 "
Spindle NoseD1-8
Main Motor (HP)7.5 hp
Chuck:
Diameter12 "
Hole Thru3 "
Number of Jaws3
Equipment & Options
Equipped With:Coolant System
Hardened and Ground Ways
Tailstock
Tool Post
12" 3 Jaw Chuck
