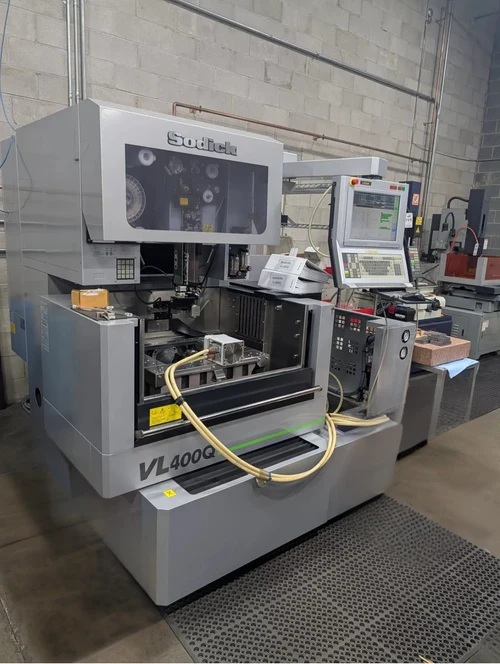

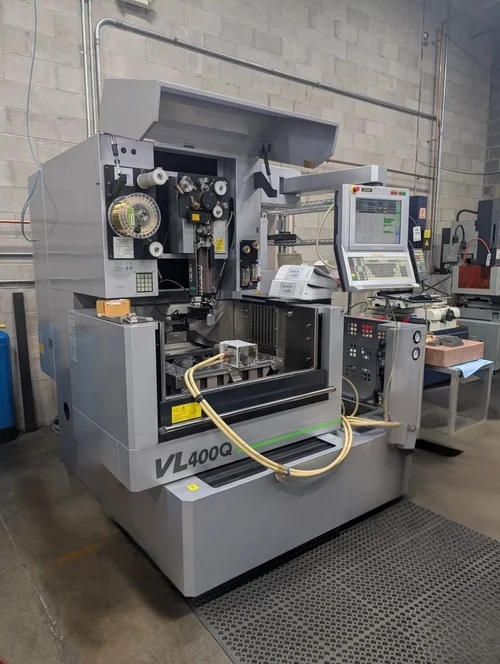

2019 Sodick VL-400Q
EDM • Stock #31189
Machine Highlights
X-15.75" Y-11.81" Z-8.66" U-3.15" V-3.15", 27.17" x 33.86" tank, WS4 High Precision 4th Axis Rotary
Year2019
ManufacturerSodick
ModelVL-400Q
ControlSodick LN2W CNC
Stock #31189
Specifications
Travels:
X-Axis (Longitudinal)15.75 "
Y-Axis (Cross)11.81 "
Z-Axis (Vertical)8.66 "
U-Travel3.15 "
V-Travel3.15 "
Wire:
Minimum Wire Diameter0.004 "
Maximum Wire Diameter0.012 "
Tank:
Length33.86 "
Width27.17 "
Additional Specs:
Maximum Work Piece Weight1102 lbs
Max Wire Feed Rate420 mm/sec
Table Height35.43
Position Resolution0.1 Micron
Drive SystemLinear Motors
Position FeedbackLinear Glass Scales
Equipment & Options

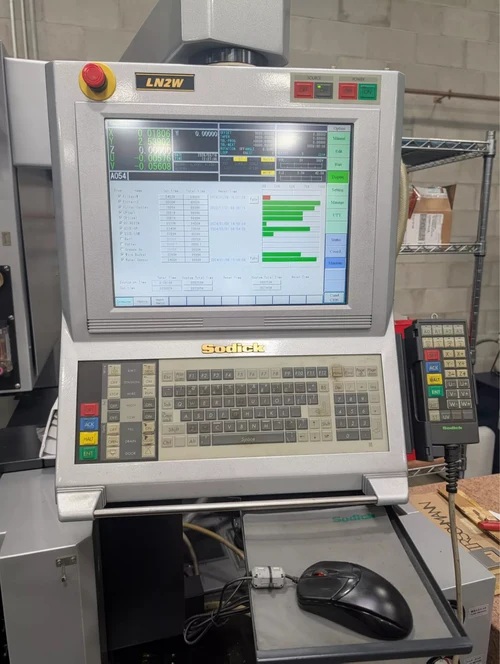

Equipped With:Sodick LN2W CNC Control

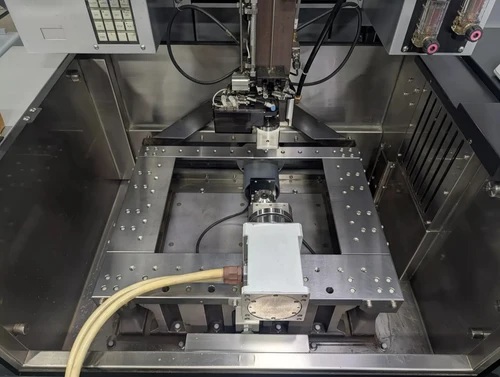

WS4 High Precision 4th Axis Rotary
Linear Glass Scales
Linear Motor Drives on X, Y, Z, U and V

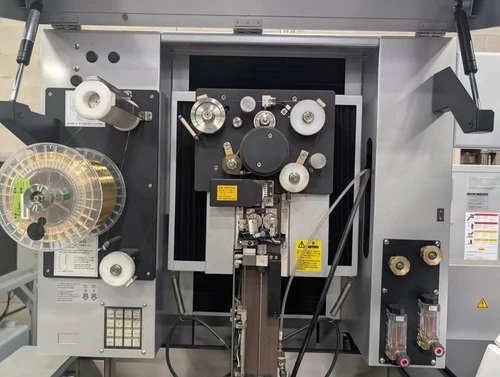

Auto Wire Threading
Automatic dielectric fluid-level control
High-speed electrolysis-free power supply
Dielectric chiller
USB/LAN connectivity
Remote hand control
Sodick's Heart NC programming software
