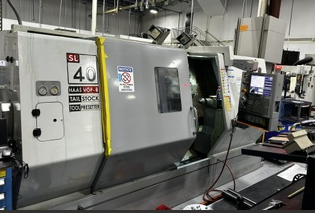

2007 Haas SL-40TB

CNC Lathes • Stock #31192

Machine Highlights

40" swing, 44" centers, 7" Bore, 55 hp, 1400 rpm, A2-11, 10 Position Turret, 18" Chuck, Hi Press Coolant, Chip Conv, Tailstock, Tool Presetter

Year2007

ManufacturerHaas

ModelSL-40TB

ControlHaas CNC/CRT

Stock #31192

Call (256) 980-1200

Specifications

Capacity:

Swing40 "

Swing Over Cross Slide25 "

Maximum Machining Diameter25.5 "

Distance Between Centers44 "

Spindle:

Spindle Speed: Minimum (RPM)0 rpm

Maximum1400 rpm

Spindle Bore7.08 "

Main Motor55 hp

Spindle NoseA2-11

Turret:

Number Of Positions10

X-Axis Travel17 "

Z-Axis Travel44 "

Tailstock:

Quill Diameter4 "

Quill Travel6 "

Taper5 MT

Body Travel33.5 "

Chuck:

Diameter18 "

Hole Thru6.5 "

Number of Jaws3

Equipment & Options

Equipped With:Haas 2-Axis CNC Control with 15" Color LCD Monitor

Intuitive Programming System

Ethernet/Hard Drive

Spindle Orientation

RS-232 Interface

Extra Performance Option, 55 hp

Chip Conveyor

Tool Presetter

Programmable Hydraulic Tailstock

High Pressure Coolant System

Extended Tool Pocket

Remote Jog Handle

High Intensity Lighting

Machine Overview

This 2007 Haas SL-40TB CNC Lathe provides substantial turning capacity for larger workpieces. Key specifications include a 40″ swing, 25″ swing over the cross slide, 25.5″ maximum machining diameter, 44″ distance between centers, 7.08″ spindle bore, spindle speeds up to 1,400 rpm, 55 hp main motor, and a 10-position turret.

The machine is equipped with a Haas 2-Axis CNC Control with 15″ color LCD monitor, Intuitive Programming System, Ethernet/hard drive, spindle orientation, RS-232 interface, Extra Performance Option with 55 hp, chip conveyor, tool presetter, programmable hydraulic tailstock, high-pressure coolant system, extended tool pocket, remote jog handle, and high-intensity lighting.
