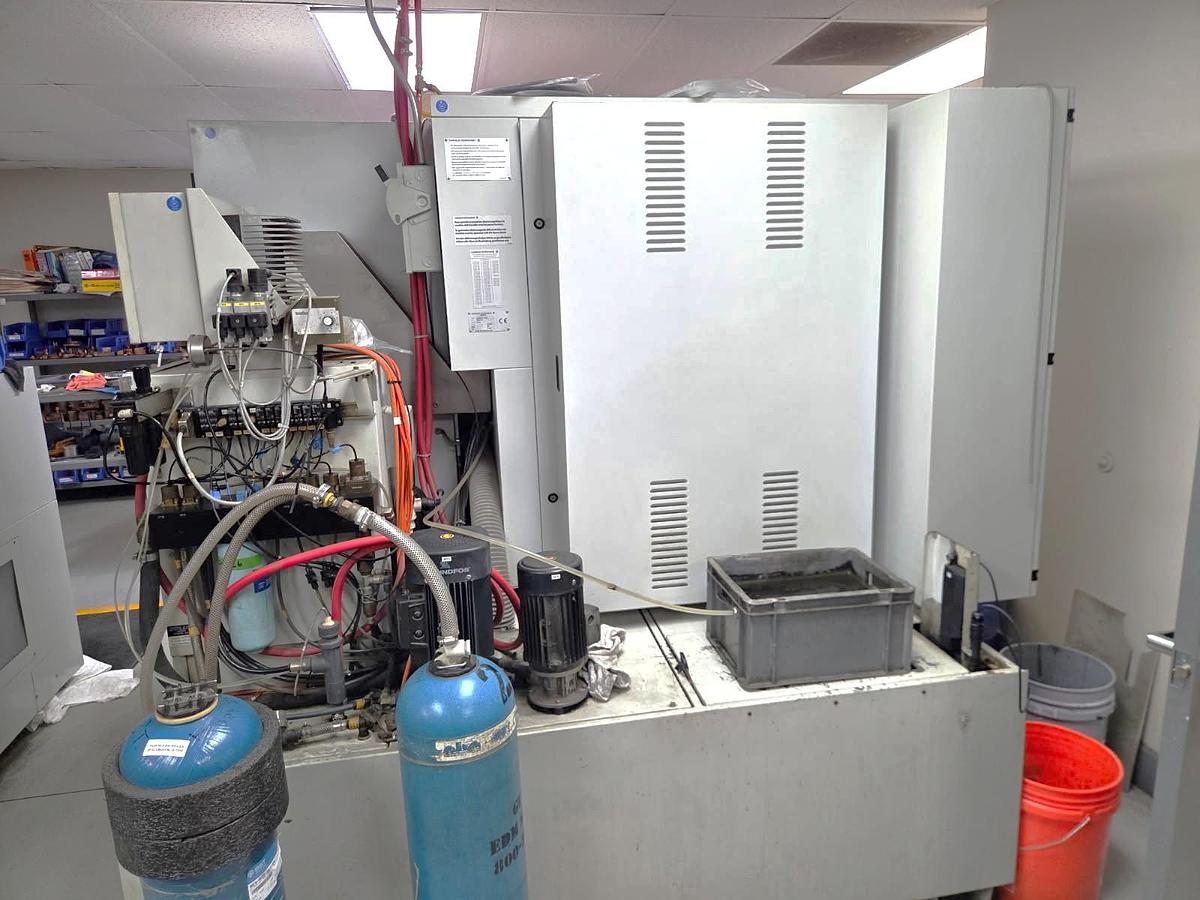

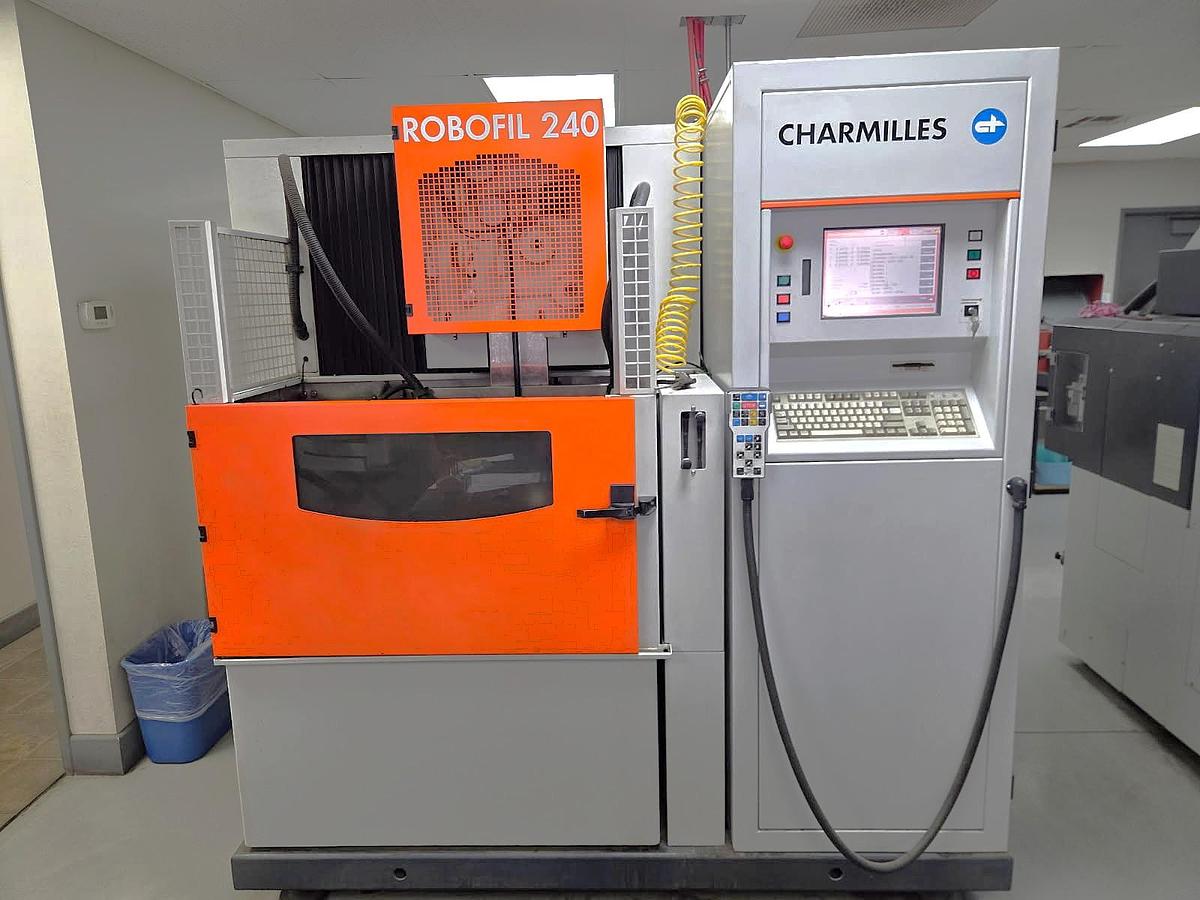

2002 Charmilles Robofil 240
EDM • Stock #31193
Machine Highlights
X-13.76" Y-8.66" Z-8.66" U-13.76" V-8.66"
Year2002
ManufacturerCharmilles
ModelRobofil 240
Control
Stock #31193
Specifications
Table:
Length17.72 "
Width26.77 "
Maximum Load1653 lbs
Travels:
X-Axis (Longitudinal)13.76 "
Y-Axis (Cross)8.66 "
Z-Axis (Vertical)8.66 "
U-Travel13.76 "
V-Travel8.66 "
Wire:
Minimum Wire Diameter0.004 "
Maximum Wire Diameter0.012 "
Equipment & Options
Equipped With:Auto Wire Threading
Remote Jog Handle
.010" Diameter Wire Guides
Wired 400V Three Phase Power
17,000 Hours
Note:Well Maintained Machine from Tool Room Environment
Machine Overview

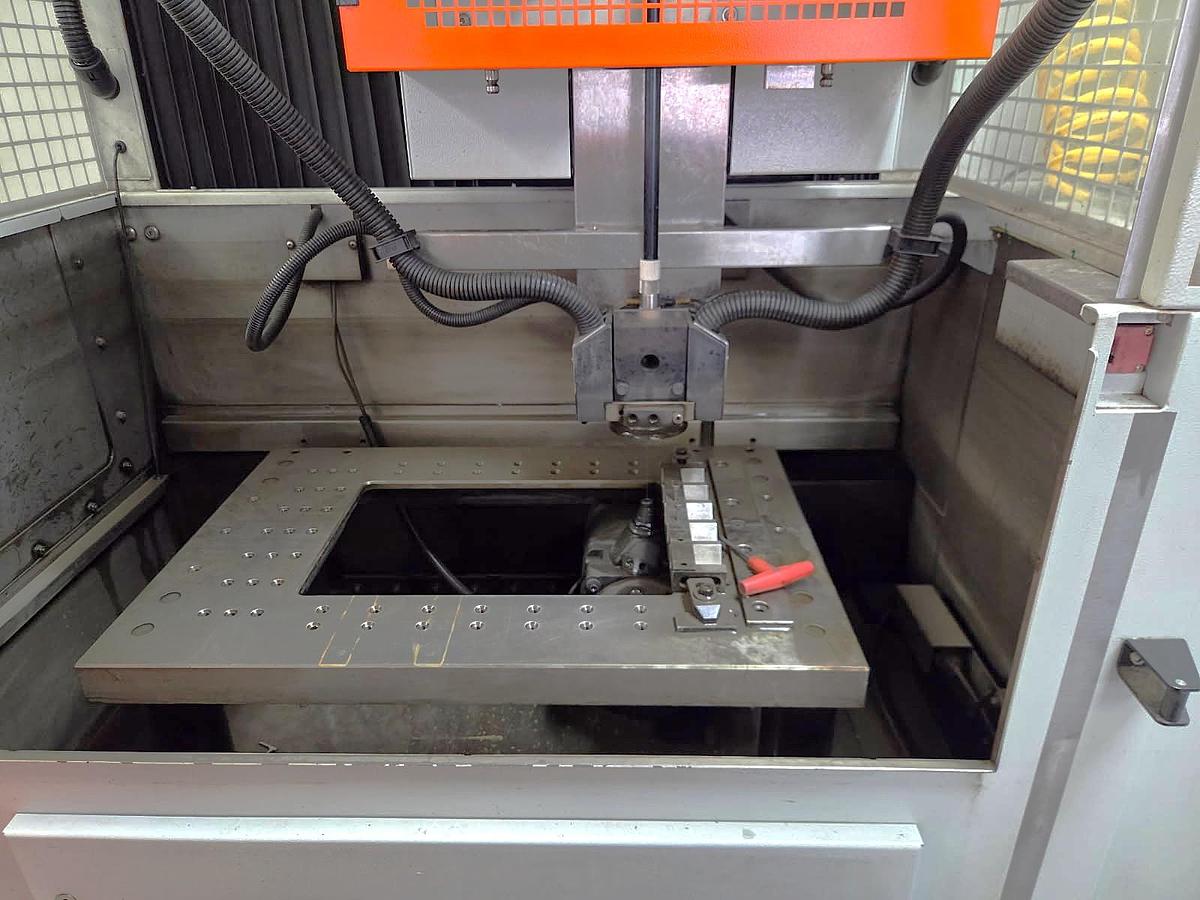

This 2002 Charmilles Robofil 240 Wire EDM provides precision wire-cut EDM capability with 13.76″ X-axis, 8.66″ Y-axis, 8.66″ Z-axis, 13.76″ U-axis, and 8.66″ V-axis travels. The machine has a 17.72″ x 26.77″ table with a 1,653 lb maximum load and accommodates wire diameters from .004″ to .012″.
The machine is equipped with automatic wire threading, remote jog handle, .010″ diameter wire guides, and is wired for 400V three-phase power. The supplied information notes approximately 17,000 hours and describes the machine as well maintained from a tool-room environment.
