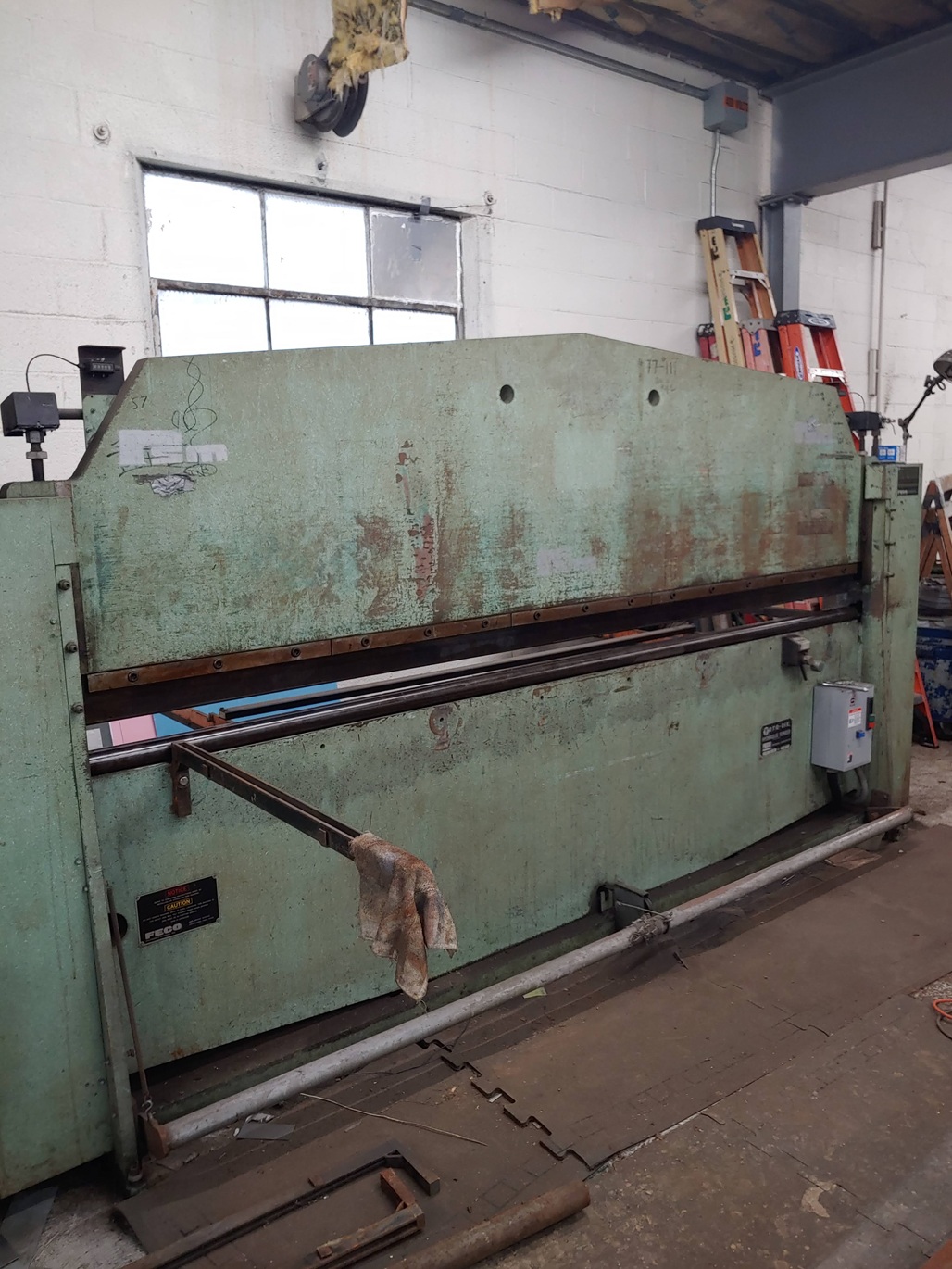

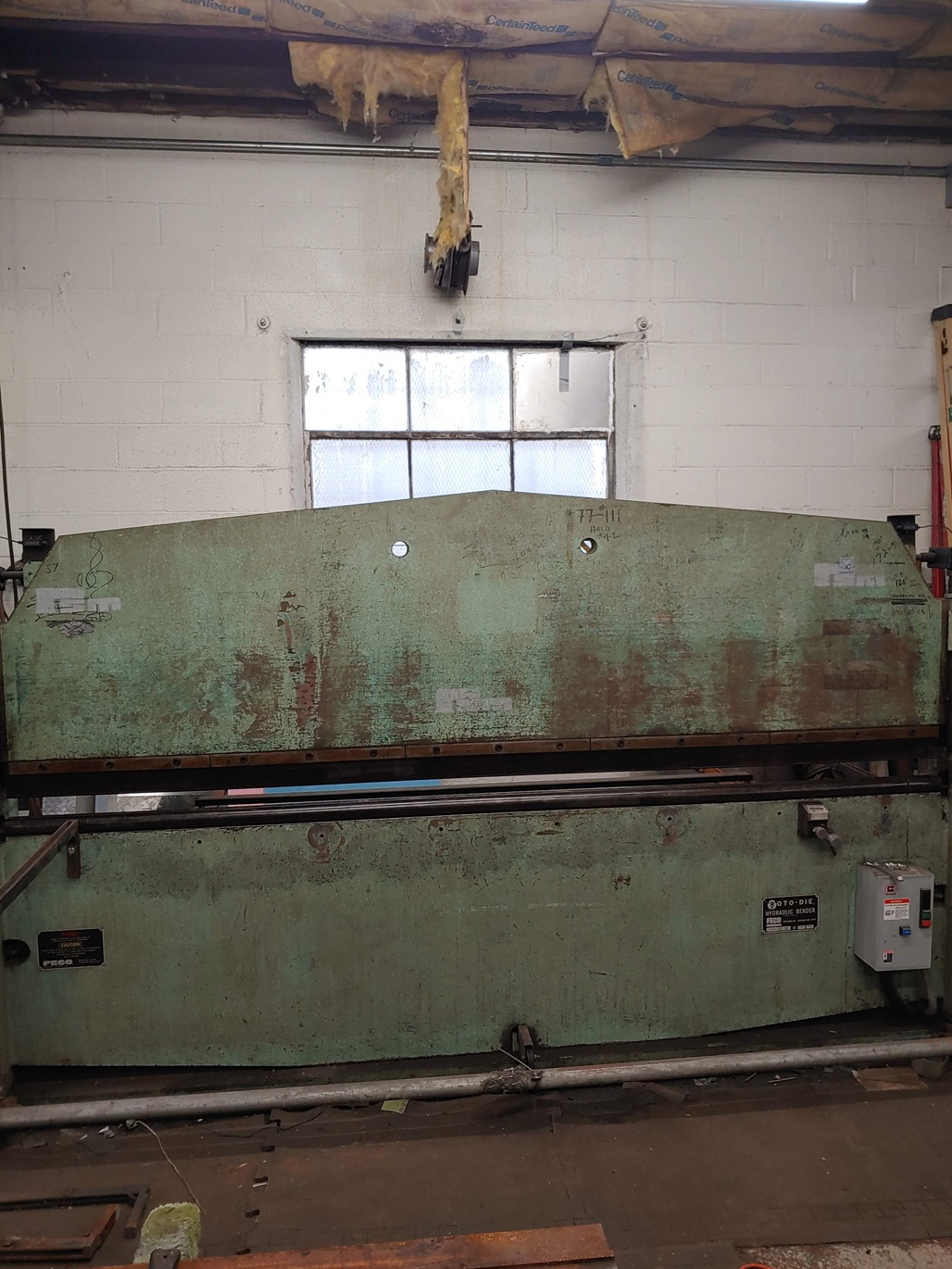

Roto Die Model 15
Press Brake • Stock #31195
Machine Highlights
120" x 14 ga capacity, 3" stroke, 7.5" Die Space, 15 hp, Hydrualic
Year
ManufacturerRoto Die
ModelModel 15
Control
Stock #31195
Specifications
Capacity:
Tonnage- ton
Bed Length120" "
Distance Between Housings120 "
Main Motor15 hp
Length of Stroke3 "
Die Clearance2-1/8"
Die Space7-1/2"
Speed20-50 SPM
Approx Weight8950 lbs
Equipment & Options
Equipped With:3 Extra Top Dies
(8) Front and Rear Supports
15 hp Motor
3-Phase
Hydraulic Operation
Machine Overview
This Roto Die Model 15 Press Brake is configured with a 120″ bed and 120″ distance between housings, along with a 3″ stroke and 7-1/2″ die space. The machine has a 15 hp main motor and the listing specifies 120″ x 14-gauge capacity.
The machine is hydraulically operated and equipped with three extra top dies and eight front and rear supports. Additional listed features include a 15 hp motor and three-phase electrical configuration.
