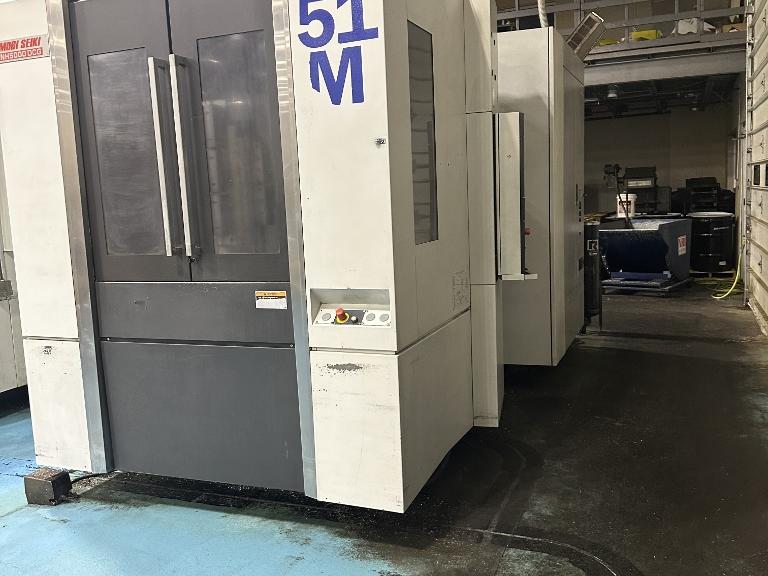

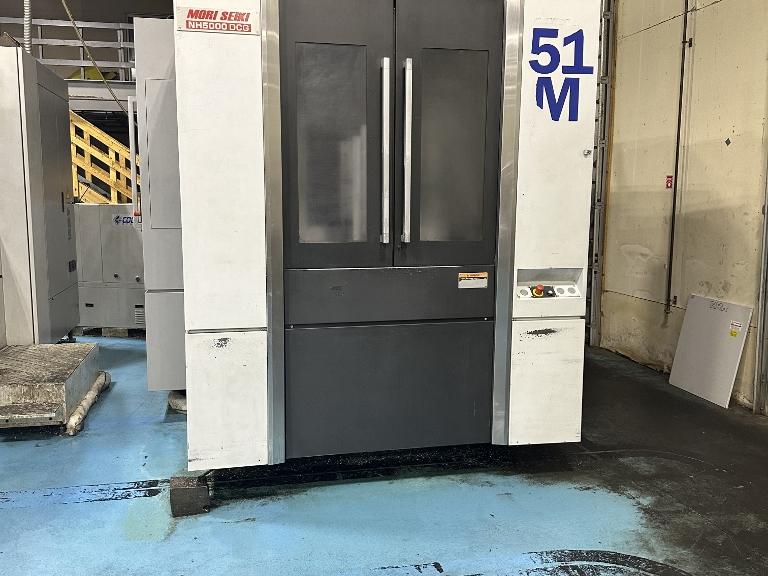

2006 Mori-Seiki NH5000/40 DCG
CNC Machining Centers, Horizontal • Stock #31196
Machine Highlights
(2) 19.7" Pallets, 360 degree indexing, X-58.7" Y-28.7" Z-33.5", 14000 rpm, 60 atc. TSC, Chip Conveyor,
Year2006
ManufacturerMori-Seiki
ModelNH5000/40 DCG
Control
Stock #31196
Specifications

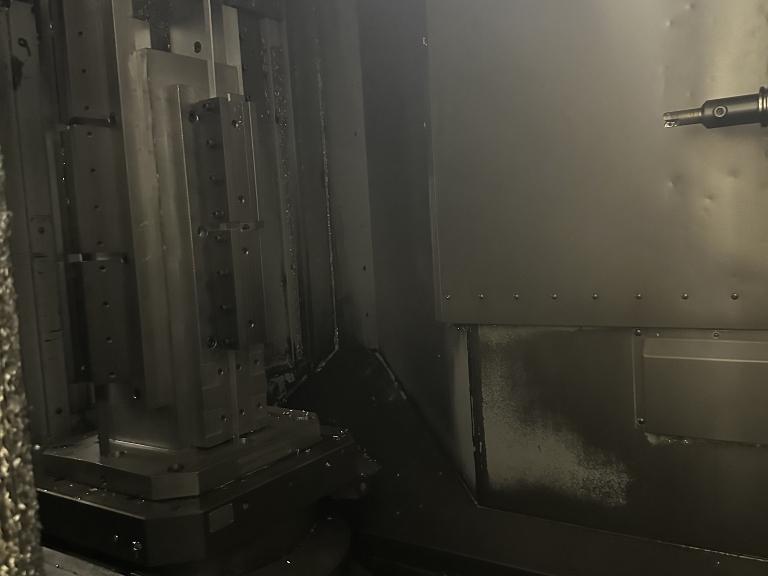

Table/Pallet:
Width19.7 "
Length19.7 "
Number of Table/Pallet(s)2
Indexing360 °
Maximum Load1100 lbs
Travels:
X-Axis Travel28.7 "
Y-Axis Travel28.7 "
Z-Axis Travel33.5 "
Spindle:
Spindle Speed: Minimum (RPM)0 rpm
Maximum14000 rpm
Spindle Taper40
Tool Changer:

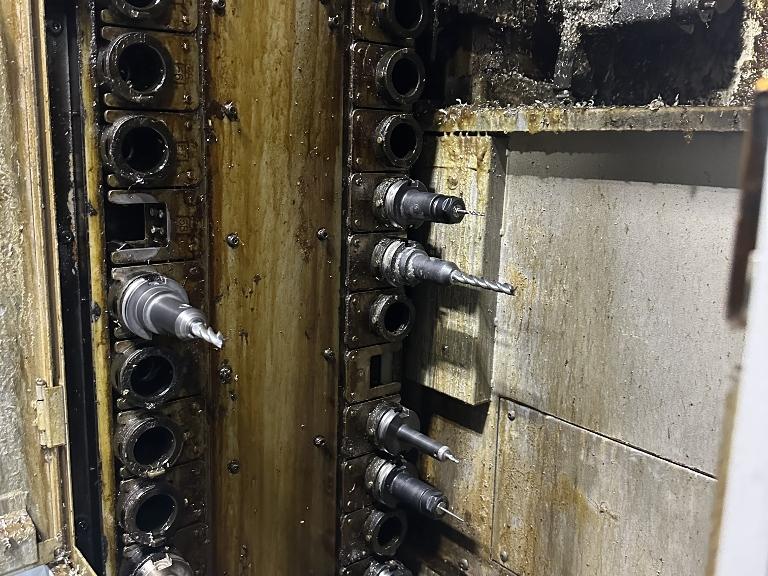

Tool Changer Positions60 atc
Equipment & Options
Equipped With:MSX-701-III CNC Control
Renishaw System(Missing Probe)
'Chip Blaster

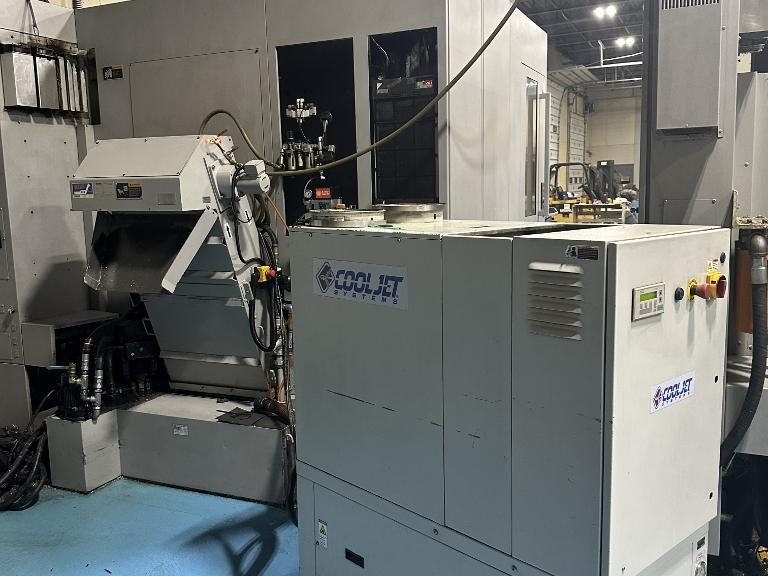

1000 PSI High Pressure Coolant Unit
Through Spindle Coolant
'Rear Discharge Chip
Machine Overview

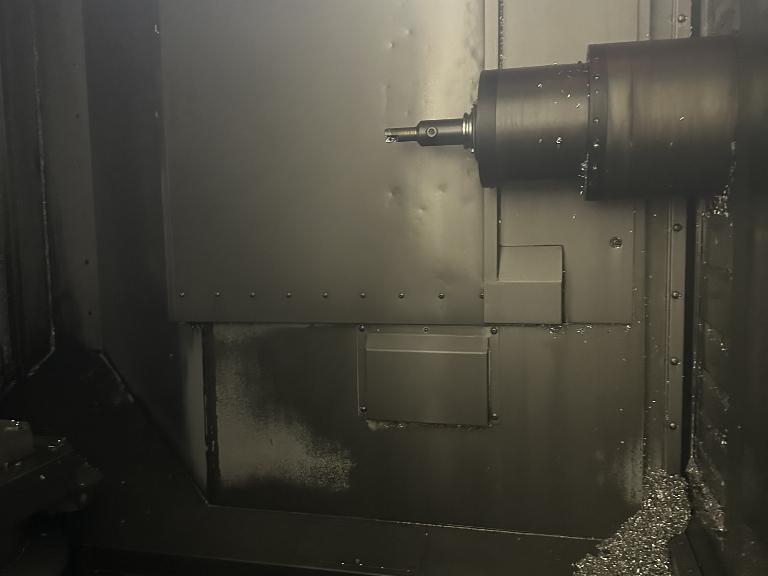

This 2006 Mori-Seiki NH5000/40 DCG CNC Horizontal Machining Center is equipped with two 19.7″ x 19.7″ pallets, 360-degree indexing, and a 1,100 lb maximum pallet load. The specification data lists 28.7″ X-axis, 28.7″ Y-axis, and 33.5″ Z-axis travels, a 40-taper spindle capable of 14,000 rpm, and a 60-position automatic tool changer.
The machine is equipped with an MSX-701-III CNC Control, 1,000 PSI high-pressure coolant unit, through-spindle coolant, and rear-discharge chip conveyor. A Renishaw system is also listed, with the probe noted as missing.
