2020 Haas VF-2
CNC Machining Centers, Vertical • Stock #31198
Machine Highlights
X-30" Y-16" Z-20". 30 hp, 10000 rpm, 30+1 SMATC, HRT-210 Rotary Table, WIPS, TSC, HSM, Auger, Pcool IPS
Year2020
ManufacturerHaas
ModelVF-2
Control
Stock #31198
Specifications
Table:
Width14 "
Length36 "
Maximum Table Load3000 lbs
Travels:
X-Axis Travel30 "
Y-Axis Travel16 "
Z-Axis Travel20 "
Spindle Nose to Table Top Minimum4 "
Maximum24 "
Spindle:
Spindle Speed: Minimum (RPM)0 rpm
Maximum10000 rpm
Spindle Taper40
Main Motor (HP)30 hp
Tool Changer:
Tool Changer Positions30+1 atc
Equipment & Options
Equipped With:Haas 4-Axis CNC Control with 15" Color LCD Monitor
Memory Lock Keyswitch, Rigid Tap, 1GB Program Memory, USB Port,
Early Power Failure Detection Module
Flood Coolant Sytstem with 55 Gallon Coolant Tank
4th Drive & Wiring
10,000 RPM Spindle, 2 Speed Gearbox
Coolant Thru the Spindle (300 PSI)
High Speed Machining
Chip Auger
Visual Quick Code Programming
Programmable Coolant Nozzle
Intuitive Programming System
Haas HRT-210 4th Axis Rotary Table
Machine Overview

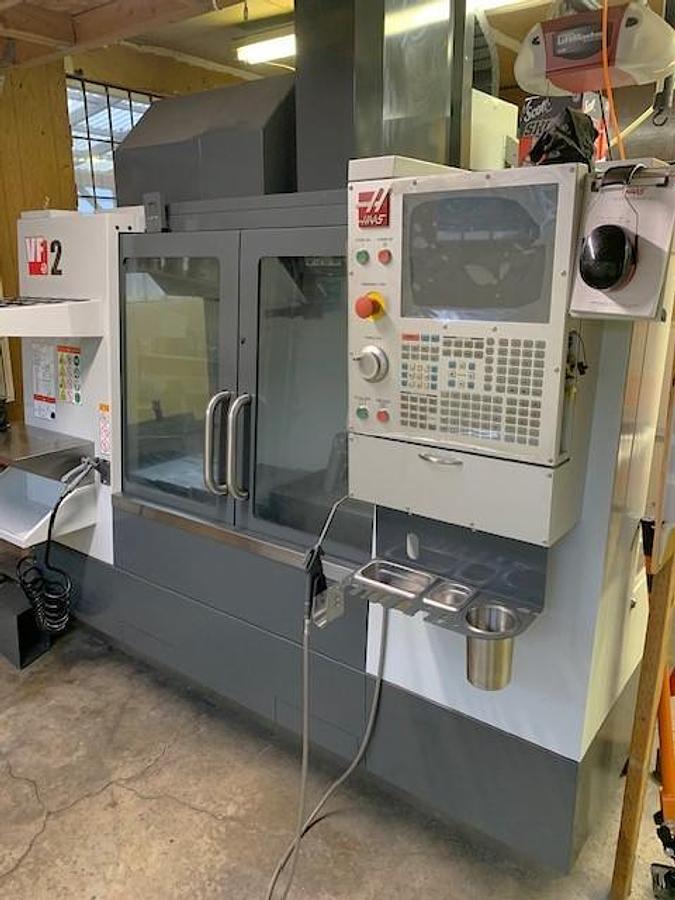

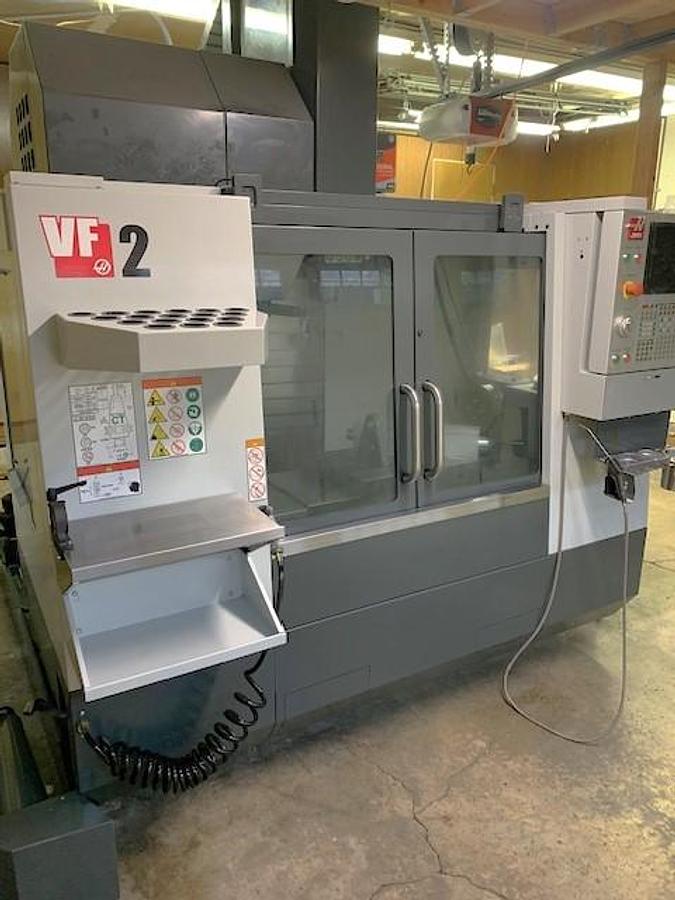

This 2020 Haas VF-2 Vertical Machining Center provides 30″ X-axis, 16″ Y-axis, and 20″ Z-axis travels with a 14″ x 36″ table rated for 3,000 lbs. It features a 10,000 rpm 40-taper spindle, 30 hp main motor, and a 30+1 position automatic tool changer.
The machine is equipped with a Haas 4-axis CNC Control with 15″ color LCD monitor, 4th-axis drive and wiring, Haas HRT-210 rotary table, 300 PSI through-spindle coolant, high-speed machining, chip auger, programmable coolant nozzle, Visual Quick Code Programming, Intuitive Programming System, and a 55-gallon flood coolant system.
