2011 Doosan Puma 300C
CNC Lathes • Stock #31202
Machine Highlights
22" Swing, 28" Centers, 35 hp, 4.5" bore, 2800 rpm, 12 pos turret, Chip Conv, Tailstock, Tool Setter
Year2011
ManufacturerDoosan
ModelPuma 300C
Control
Stock #31202
Specifications
Capacity:
Swing22.4 "
Swing Over Cross Slide17.7 "
Maximum Machining Diameter25.7 "
Distance Between Centers27.8 "
Spindle:
Spindle Speed: Minimum (RPM)0 rpm
Maximum2800 rpm
Spindle Bore4.5 "
Main Motor35 hp
Spindle NoseA2-11
Turret:
Number Of Positions12
X-Axis Travel11.1 "
Z-Axis Travel26.8 "
Tailstock:
Quill Diameter3.97 "
Quill Travel4.7 "
Taper4 MT
Equipment & Options
Equipped With:Fanuc 2-Axis CNC Control
Chip Conveyor
Tailstock
Tool Setter
Complete Coolant System

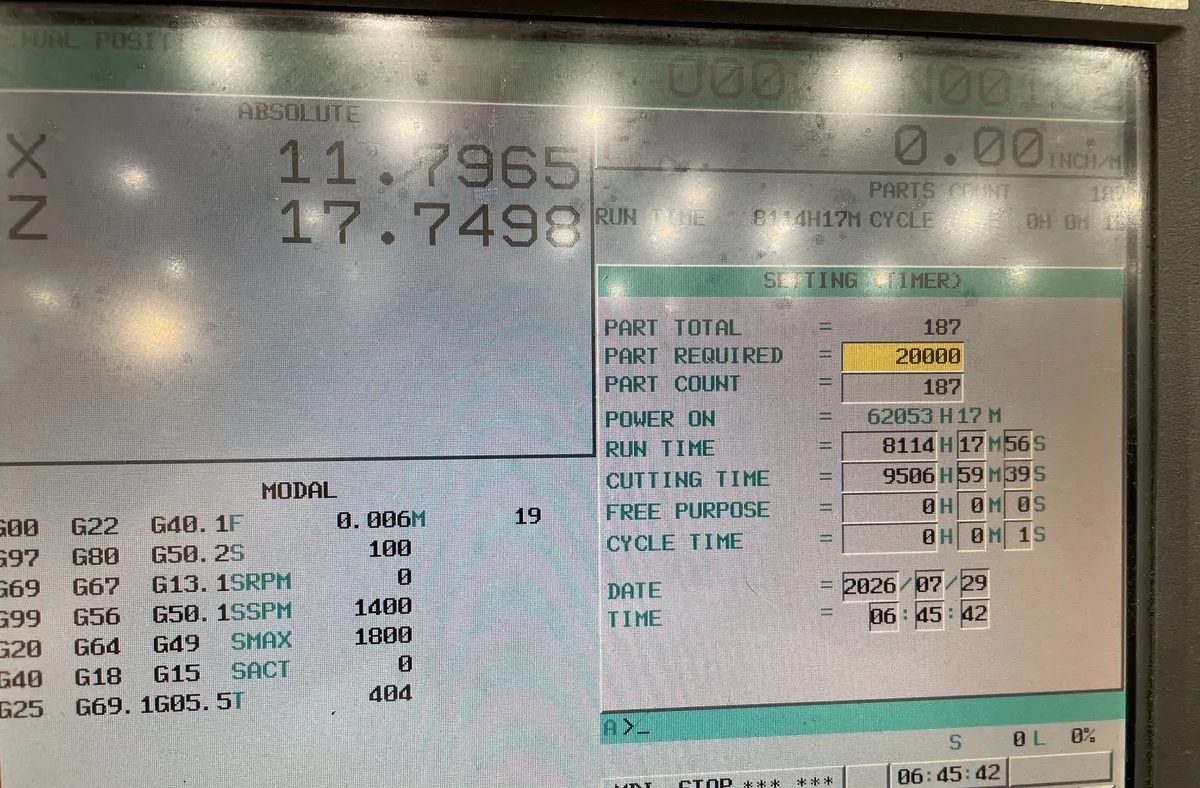

Hours:Cutting: 9506 Run Time: 8114
Machine Overview

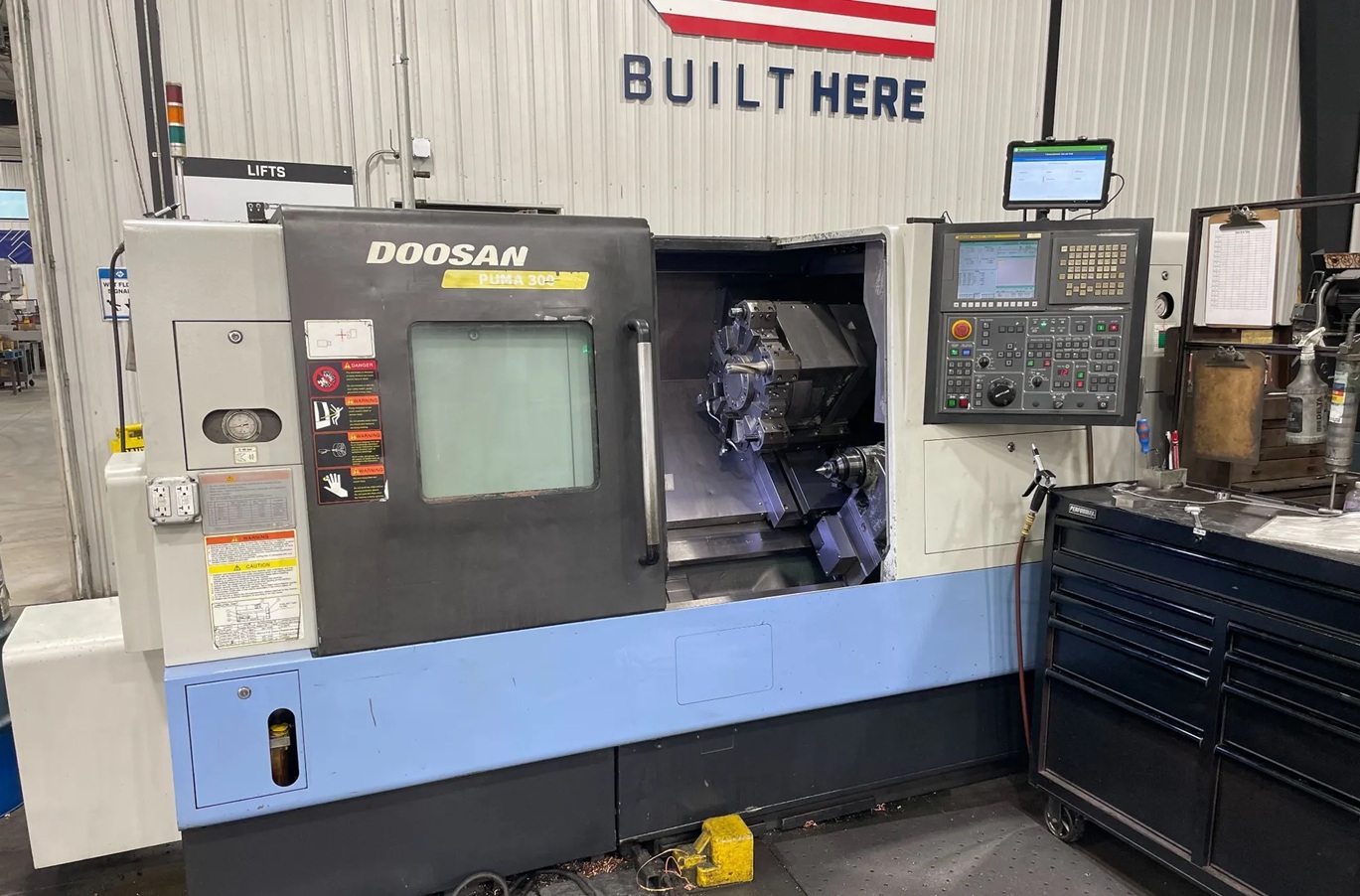

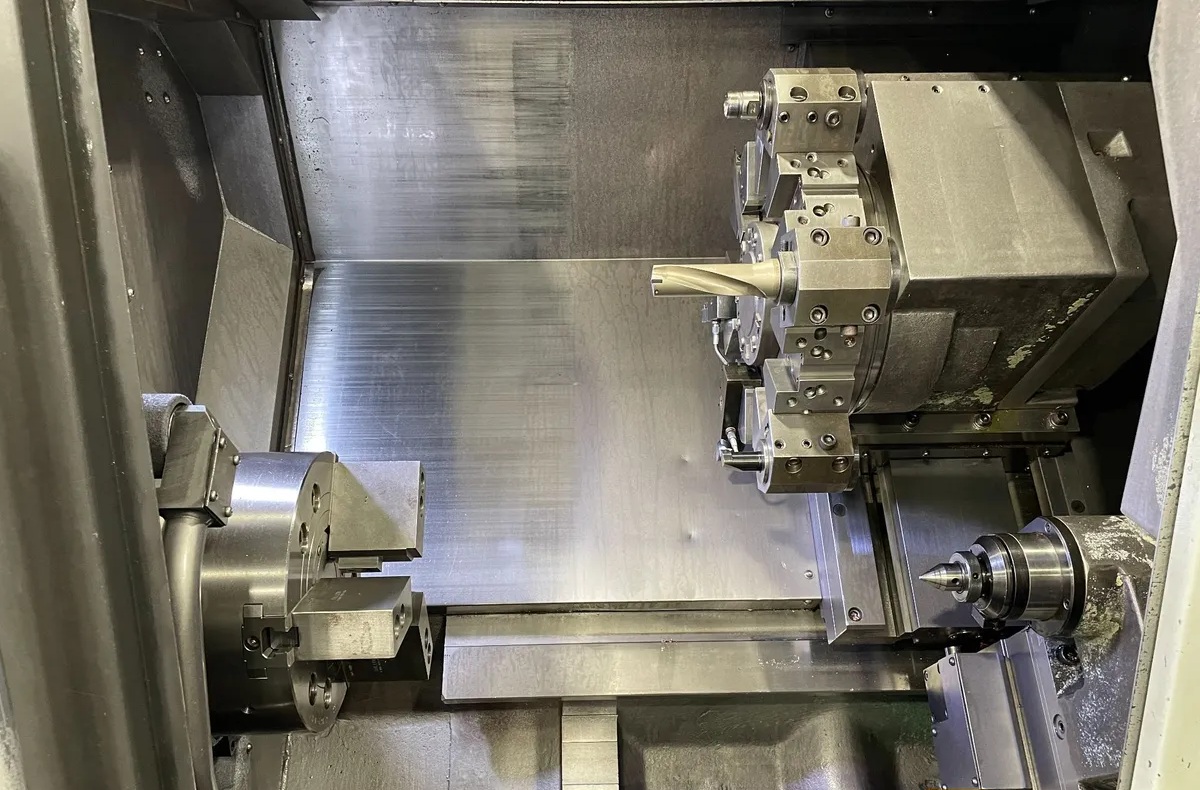

This 2011 Doosan Puma 300C CNC Lathe offers a 22.4″ swing, 17.7″ swing over the cross slide, 25.7″ maximum machining diameter, and 27.8″ distance between centers. It features a 4.5″ spindle bore, spindle speeds up to 2,800 rpm, a 35 hp main motor, A2-11 spindle nose, and a 12-position turret.
The machine is equipped with a Fanuc 2-axis CNC Control, chip conveyor, tailstock, tool setter, and complete coolant system. The supplied hour information lists 9,506 cutting hours and 8,114 run-time hours.
