Johnford VMC-1600HD Vertical Machining Center – 2011

CNC Machining Centers, Vertical • Stock #31223

Browse used vertical machining centers →

Machine Highlights

X-63" Y-33.5" Z-28", 4500 RPM, Cat50 Taper, 24 ATC, Rigid Tapping, Chip Conv, Box Ways, Misc Tool Holders

Year2011

ManufacturerJohnford

ModelVMC-1600HD

Control

Stock #31223

Call (256) 980-1200

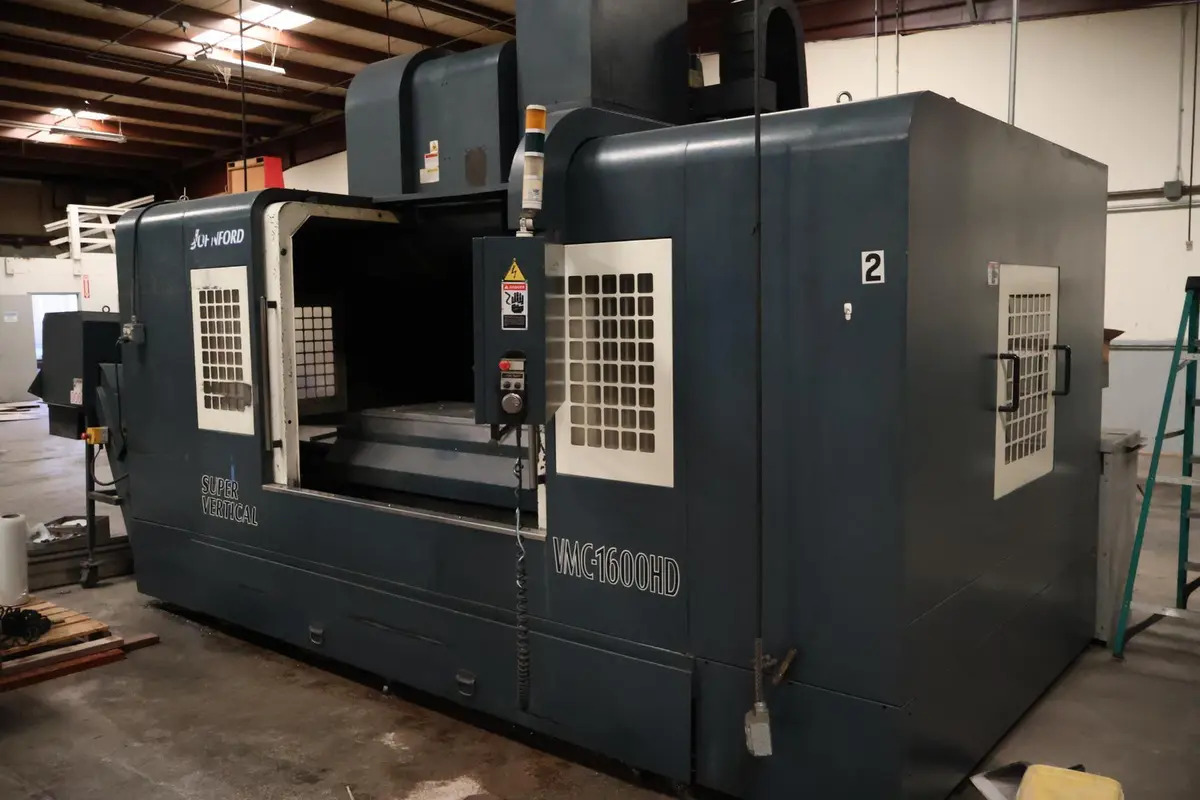

Used 2011 Johnford VMC-1600HD Vertical Machining Center for sale - photo 1

Used 2011 Johnford VMC-1600HD Vertical Machining Center - thumbnail 1

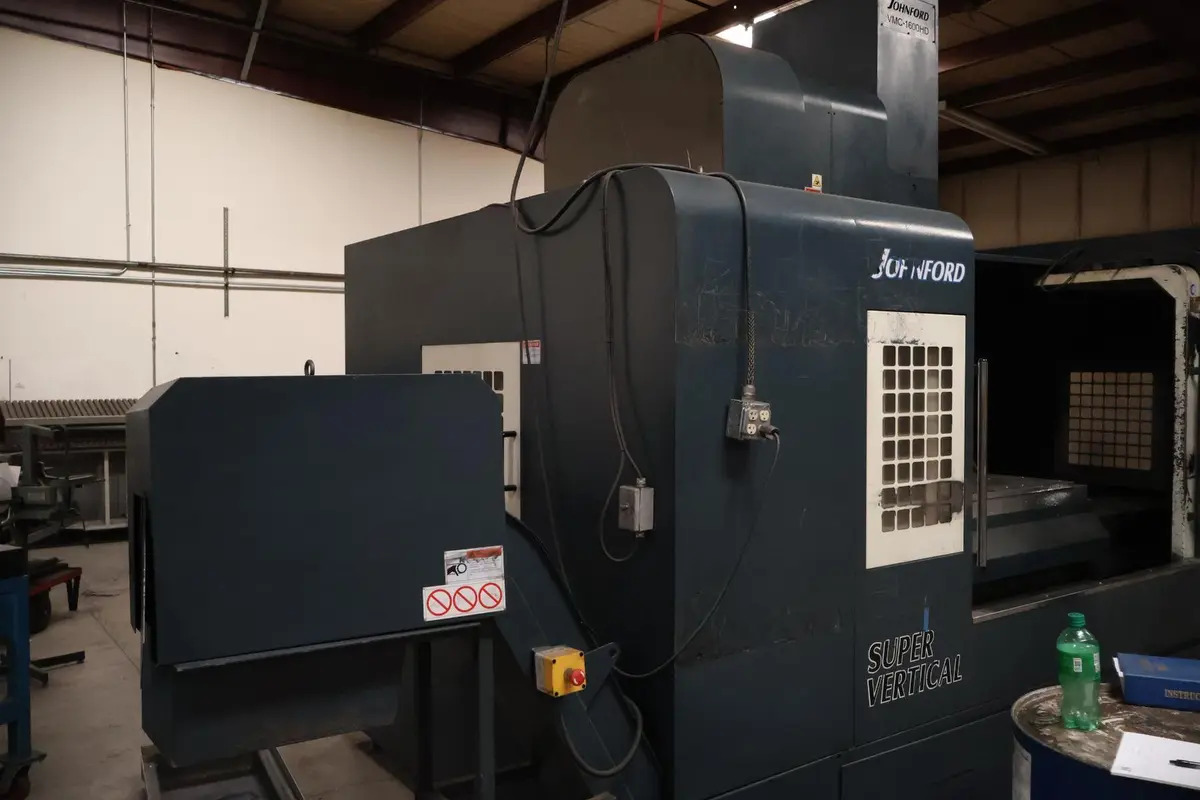

Used 2011 Johnford VMC-1600HD Vertical Machining Center - thumbnail 2

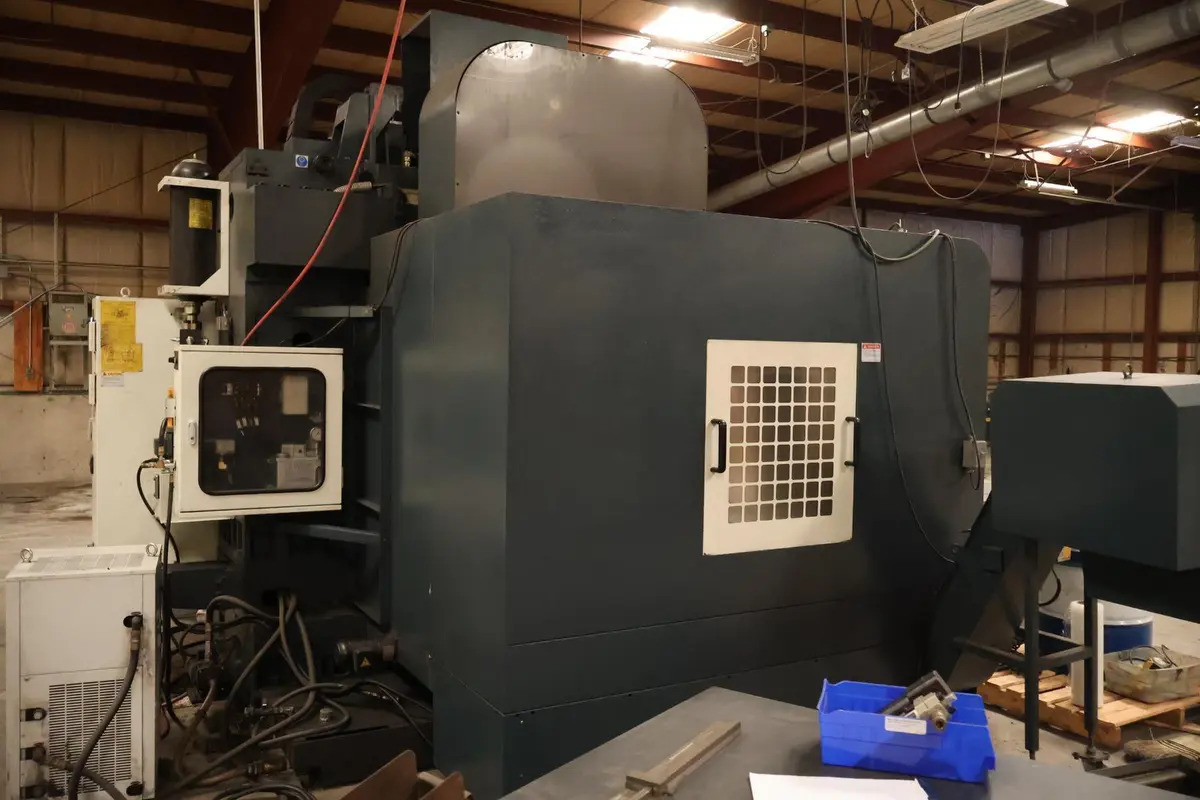

Used 2011 Johnford VMC-1600HD Vertical Machining Center - thumbnail 3

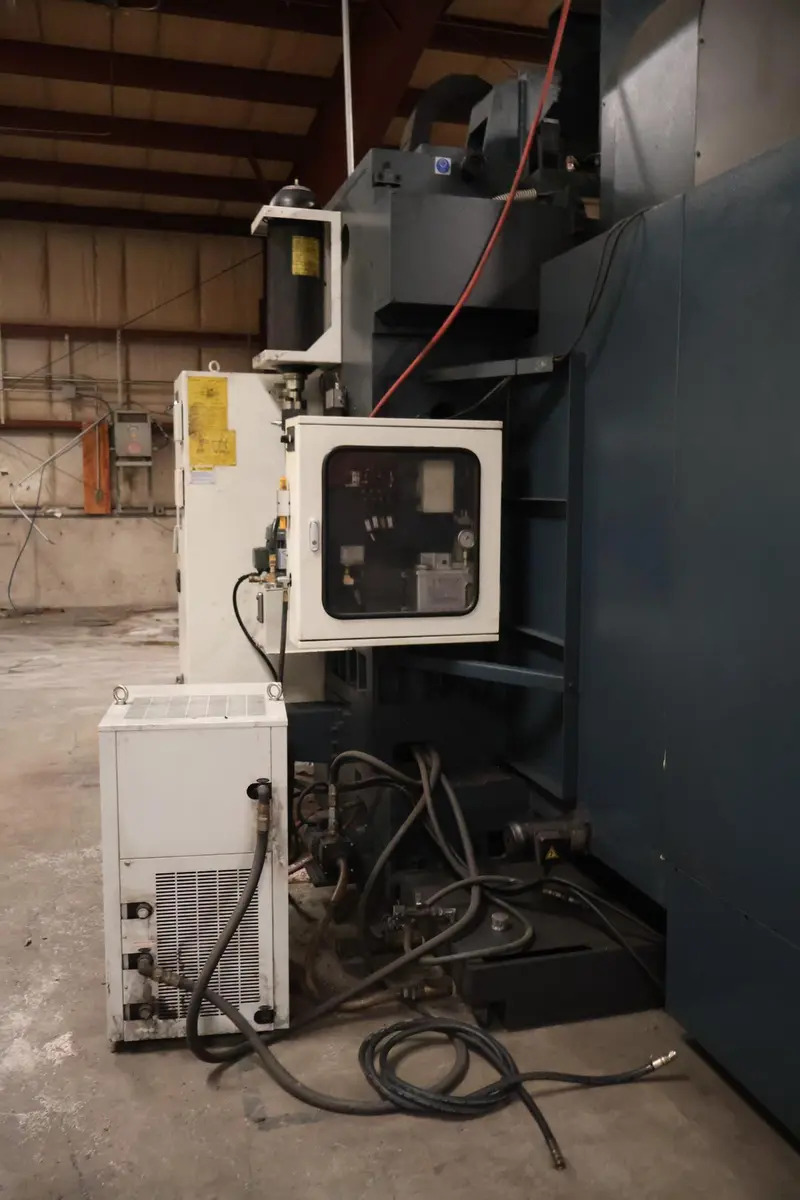

Used 2011 Johnford VMC-1600HD Vertical Machining Center - thumbnail 4

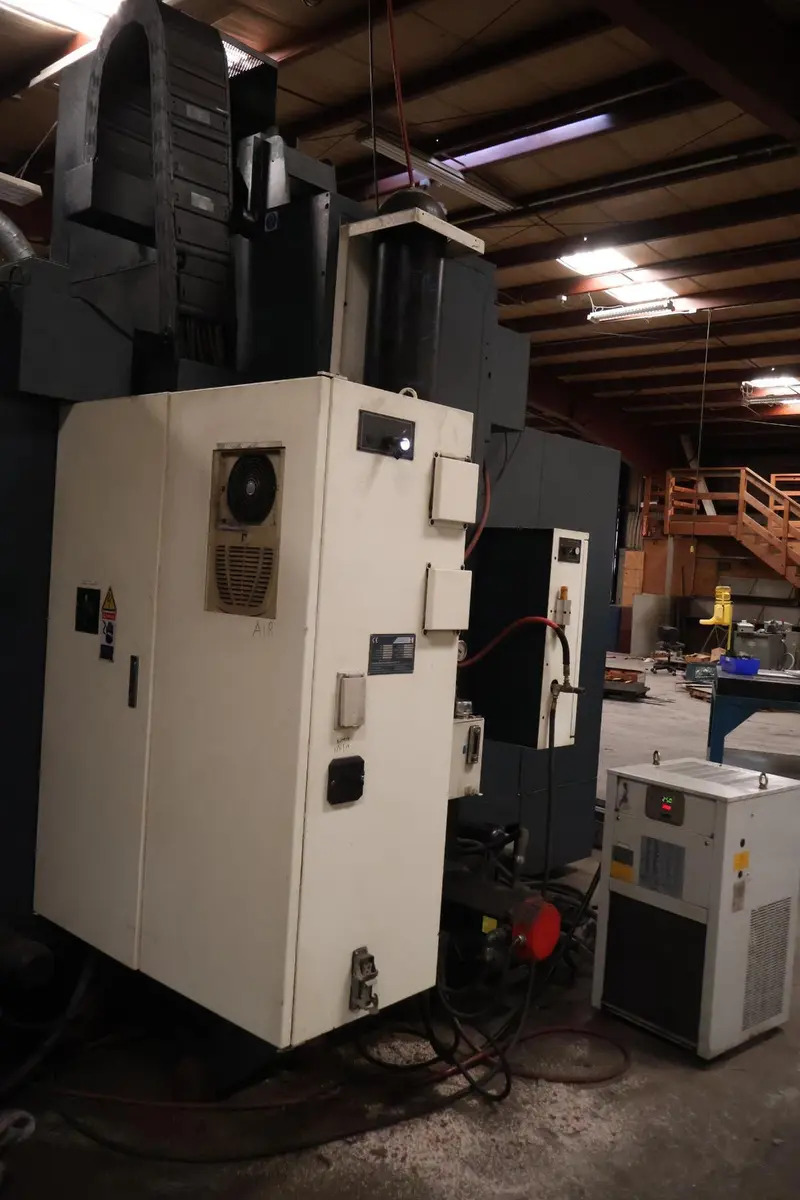

Used 2011 Johnford VMC-1600HD Vertical Machining Center - thumbnail 5

Specifications

Table:

Width29.5 "

Length70.9 "

Maximum Table Load10000 lbs

Travels:

X-Axis Travel63 "

Y-Axis Travel33.5 "

Z-Axis Travel28 "

Spindle Nose to Table Top Minimum5.9 "

Maximum33.9 "

Spindle:

Spindle Speed: Minimum (RPM)0 rpm

Maximum4500 rpm

Spindle TaperCAT50

Main Motor (HP)25 hp

Tool Changer:

Tool Changer Positions24 atc

Dimensions:

Floor Space178" x 147"

Height130"

Weight38,000 lbs

Equipment & Options

Equipped With:Fanuc 0i-MD CNC Control

Flood Coolant System

Full Coolant/Chip Enclosure

24 Position Side Mount Automatic Tool Changer

Oil Cooler

Transformer

Chip Conveyor

Misc Tool Holders

Note:This is a Heavy Duty Box Way Design Machine.

Machine Overview

This 2011 Johnford VMC-1600HD CNC Machining Centers, Vertical provides a capable platform for precision and production machining. Key specifications include 63″ X-axis travel, 33.5″ Y-axis travel, 28″ Z-axis travel, spindle speeds up to 4500 rpm, 25 hp spindle power, 24 atc automatic tool changer.

The machine is equipped with Fanuc 0i-MD CNC Control, Flood Coolant System, Full Coolant/Chip Enclosure, 24 Position Side Mount Automatic Tool Changer, Oil Cooler, Transformer, Chip Conveyor, Misc Tool Holders, This is a Heavy Duty Box Way Design Machine..
