UMS MACHINERY SPECIFICATION LIBRARY

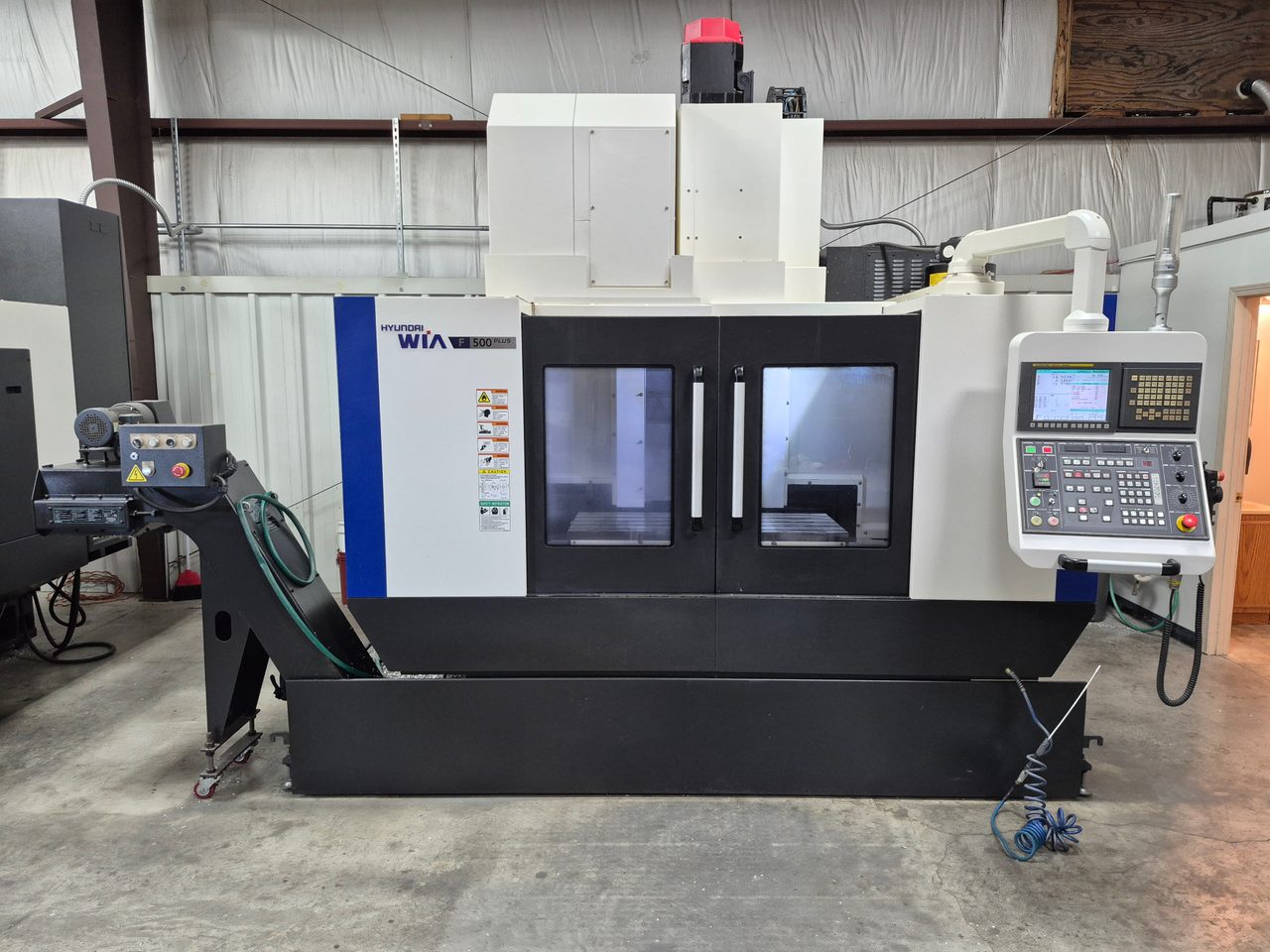

Hyundai Wia F500 Plus Specifications

Historical specifications from exact UMS machinery records.

Historical Specification Information: Specifications may vary by year, control, configuration, and optional equipment.

Choose the model year below

CNC Machining Centers, Vertical

Historical UMS record #31255

TABLE

Width19.7 "

Length47.2 "

Maximum Table Load1764 lbs

TRAVELS

X-Axis Travel41.7 "

Y-Axis Travel20.1 "

Z-Axis Travel25 "

Spindle Nose to Table Top Minimum5.9 "

Maximum30.9 "

SPINDLE

Spindle Speed: Minimum (RPM)0 rpm

Maximum12000 rpm

Spindle Taper40

Main Motor (HP)20/15 hp

TOOL CHANGER

Tool Changer Positions30 atc

Fanuc Series I CNC Control

30-Station Automatic Tool Changer

Roller-Type Linear Guideways

Flood Coolant System

Full Machine Enclosure

Rigid Tapping

Spindle Orientation

Coolant Tank

Chip Conveyor
