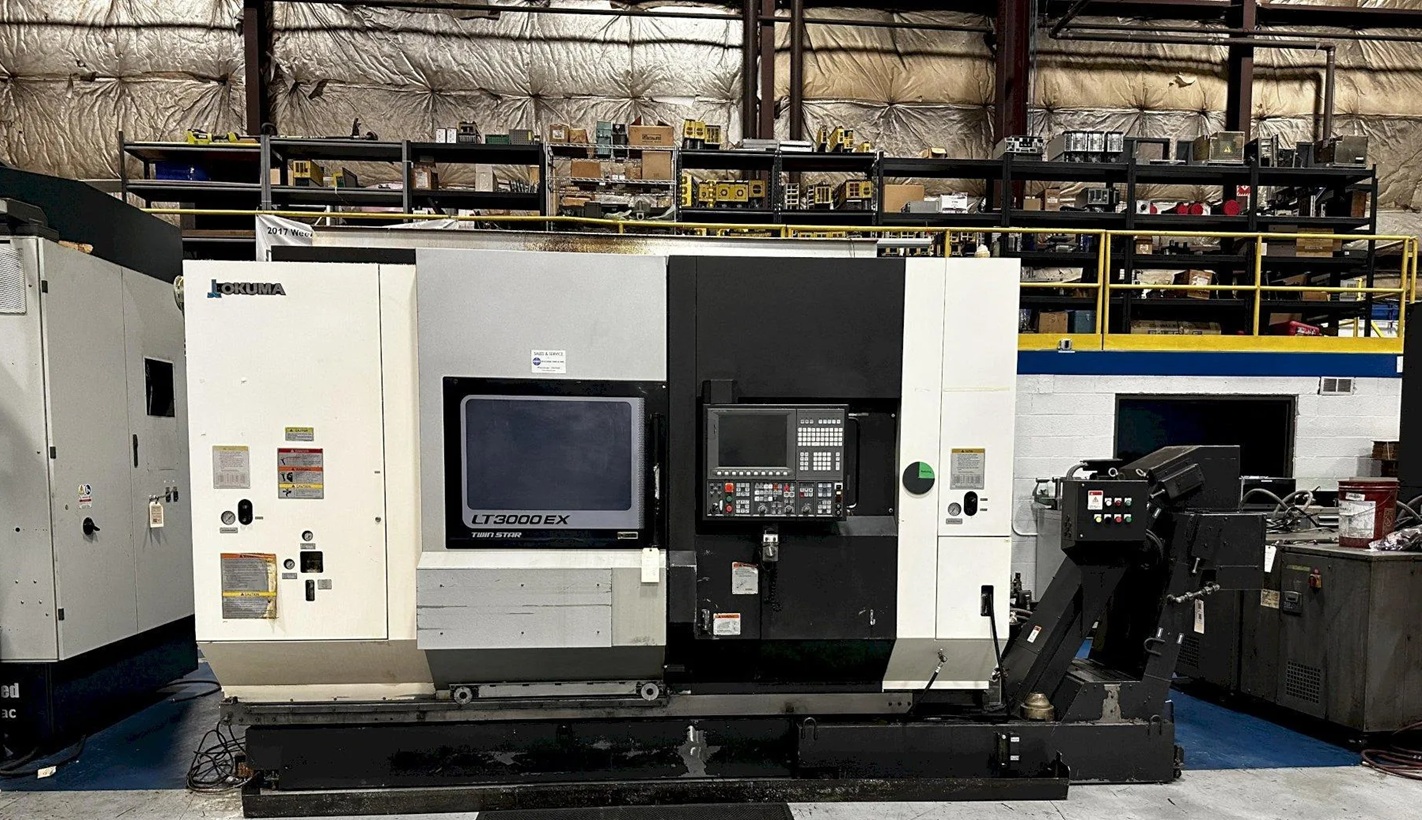

2013 Okuma LT3000EX-2MY — UMS record #31241
CNC Lathes
Historical UMS record #31241
Specifications
CAPACITY
Swing (Left headstock / Right headstock)21.6"/21.6 "
Maximum Machining Diameter (LH / RH)13.78"/13.78 "
Maximum Distance Between Spindles47.25 "
SPINDLE
Spindle Speed: Minimum (RPM) (LH / RH)0 rpm
Maximum (LH / RH)5000/5000 rpm
Spindle Bore (LH / RH)3.15"/3.15 "
Spindle Nose (LH / RH)A2-6/A2-6
Main Motor (HP) (LH / RH)30/30 hp
TURRET
Number Of Turrets2
Number of Positions (LH / RH)16/16
X-Axis Travel (LH / RH)10.04"/10.04 "
Z-Axis Travel (LH / RH)36.61"/36.61 "
LIVE TOOLING
Number of Live Positions-
Motor10 hp
Speeds6000 rpm
ADDITIONAL SPECS
B-Axis Travel37.01"
C-axis on Each Spindle0.001"
Y-Axis Travel4.92"
Bar Capacity for Btoh Spindles2.75"
DIMENSIONS
Length x Width158" x 110"
Height118"
Weight25000 lbs
Equipped With
OSP-P300L 9-Axis CNC Control
Hi-G Control
Tool Life Management
Tool Wear Compensation
MP Coolant System
High Pressure Coolant
Y Axis on Both Turrets
Live Tooling
NOTE
This is a twin spindle, twin turret design machine. It includes Live Tooling and
Y-Axis travel on both turrets.
