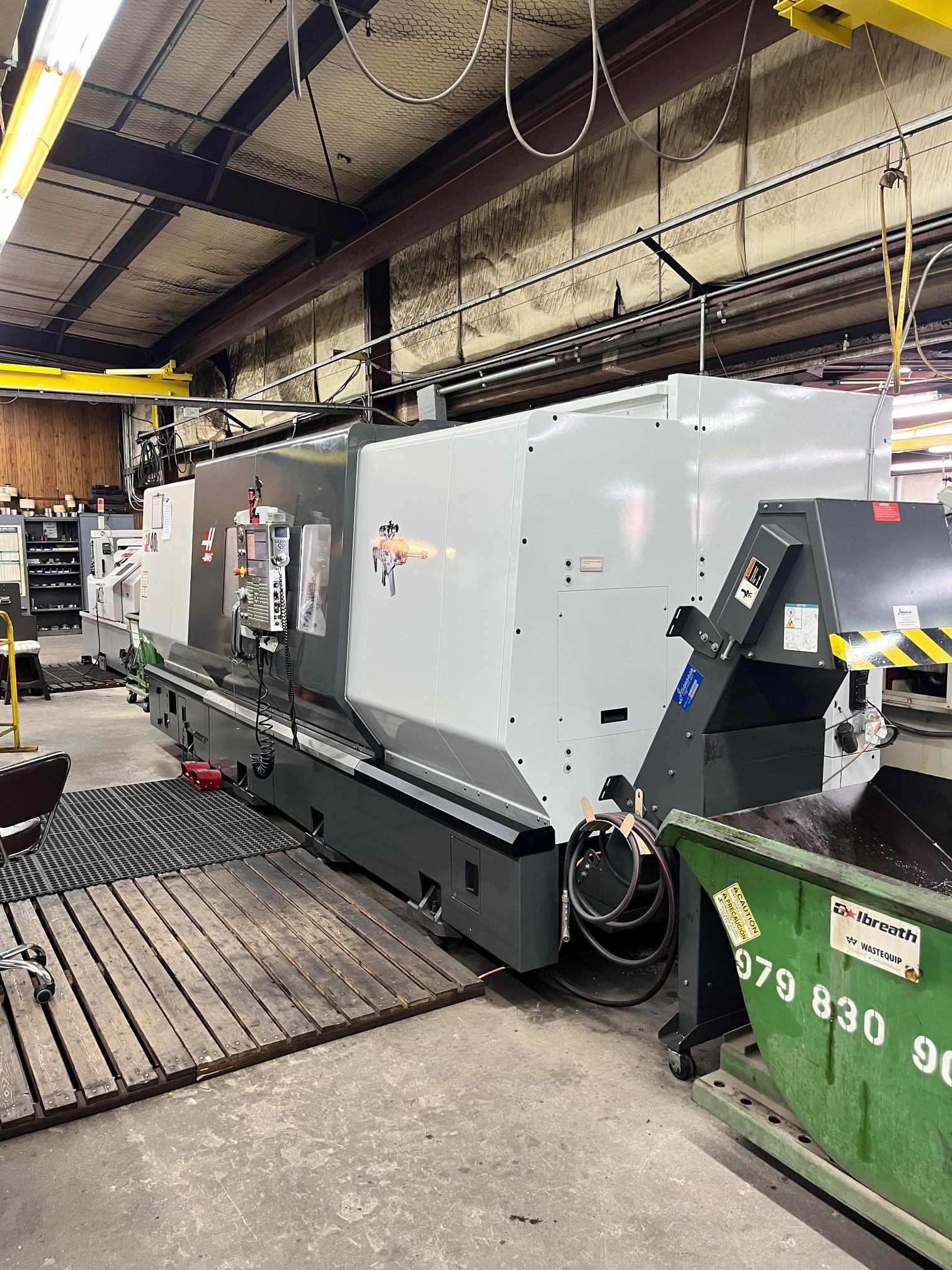

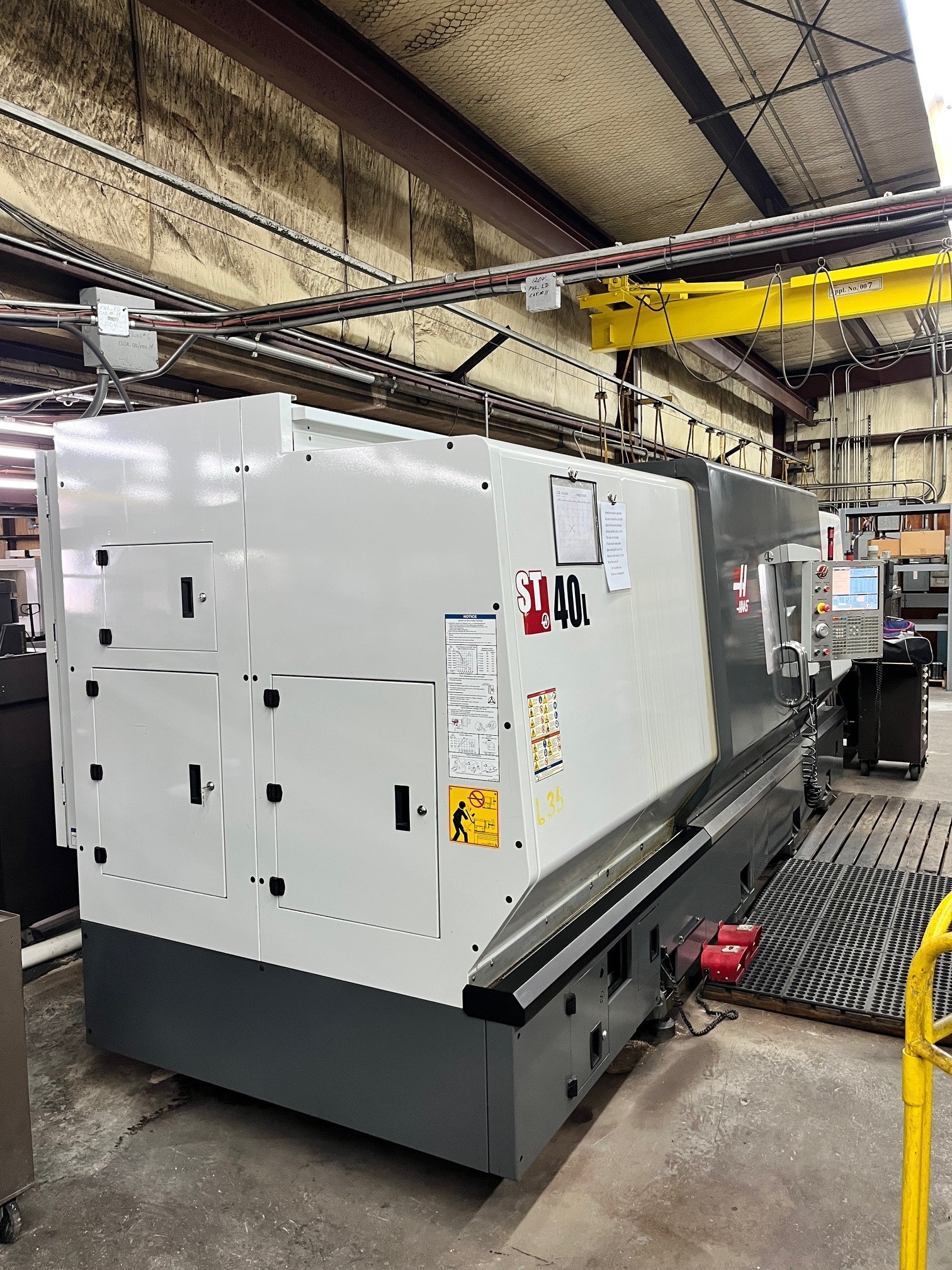

Haas ST-40LB CNC Lathe – 2012
CNC Lathes • Stock #30791
Machine Highlights
34.5" Swing, 80" Centers, 7" Bore, 1400 rpm, 12 pos trt, 55 hp, 18" chuck, chip conv, Big Bore, Long Bed, Prog Tailstock, Steady rest provision, Steady rest, Extra perf opt
Specifications
Equipment & Options
Machine Overview

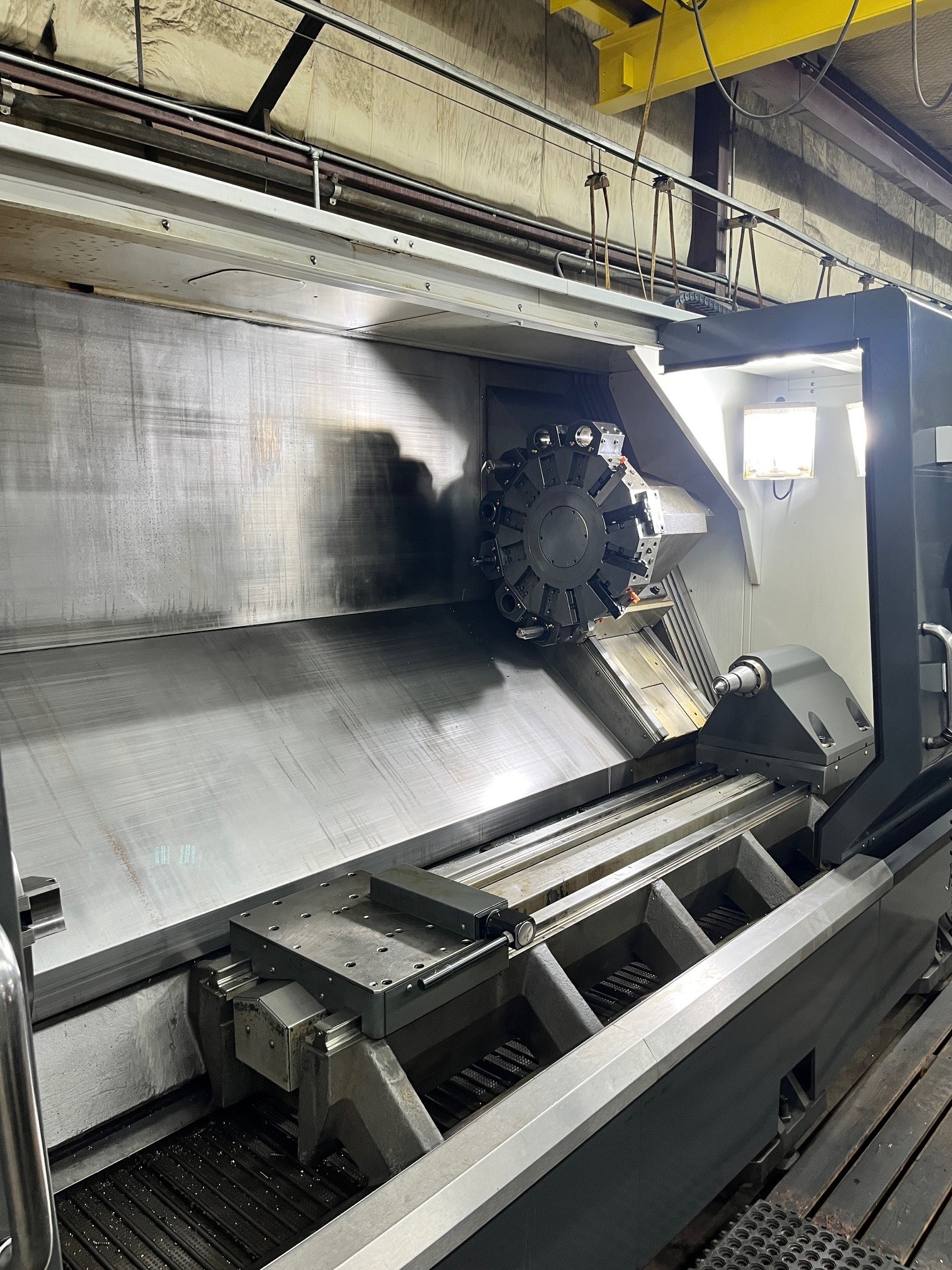

This 2012 Haas ST-40LB CNC Lathes is configured for productive CNC turning applications. Key specifications include 34.5″ swing, 25.5″ maximum machining diameter, 80″ machining length/center capacity, 7″ spindle bore, spindle speeds up to 1400 rpm, 55 hp spindle power, 12 turret.

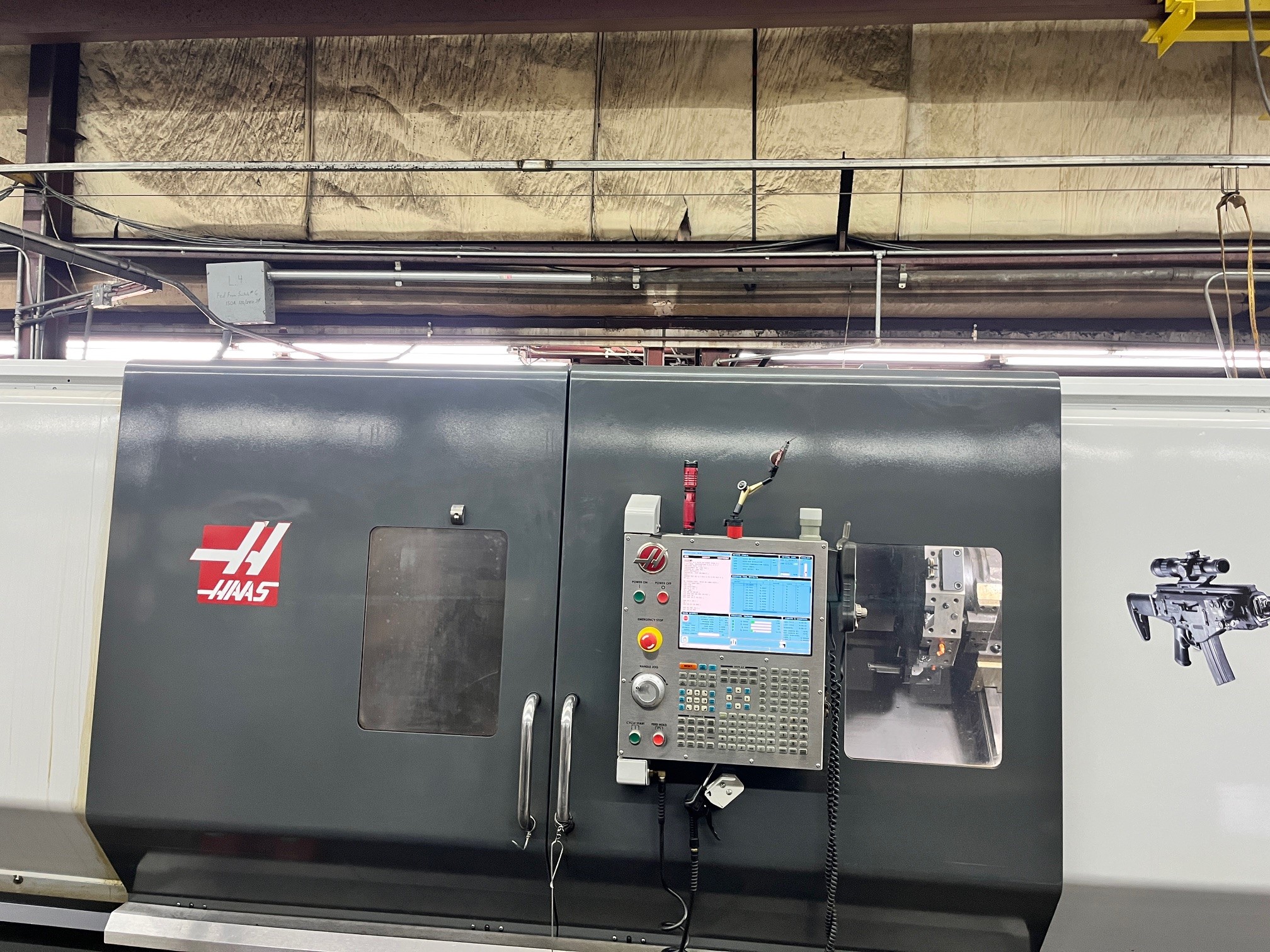

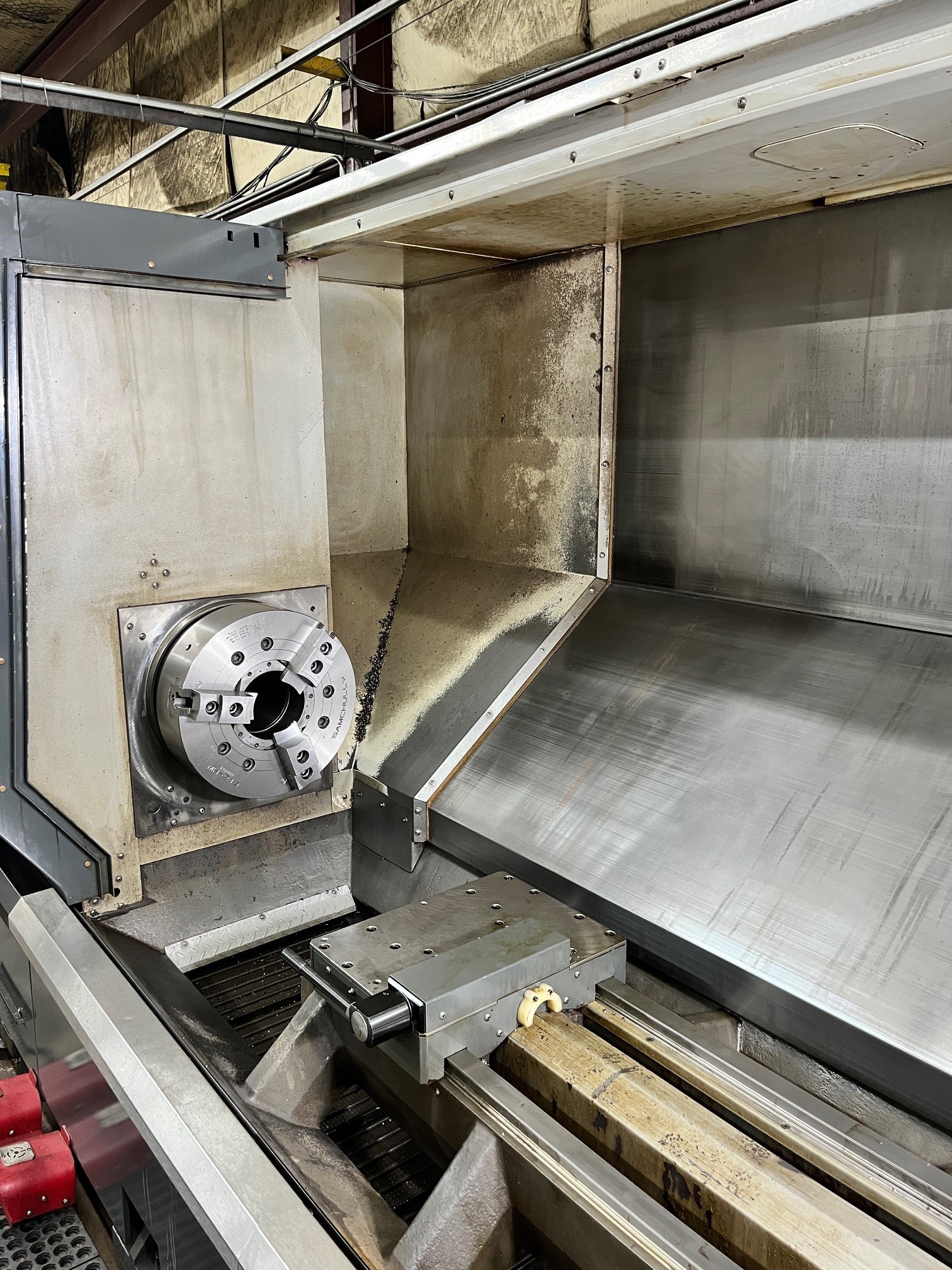

The machine is equipped with Haas CNC Control with 15" LCD Monitor, Memory Lock Keyswitch, USB Port, Color Remote Jog Handle, Rigid Tap, Programmable Servo Driven Tailstock, Big Bore Spindle Option: 7" bore, A2-11 Spindle Nose, 2-Speed Gearbox, Steady Rest Provision with Manual Positioning along Z-axis; Includes, Mounting Platform and Hydraulic Control System, Extra-Performance Option: Boosts Spindle Power to 55 hp with 2100, ft-lb Torque, includes 12 hp servo motor on Z-Axis for maximum thrust, of 7847 lbs., 18" 3-Jaw hydraulic Chuck with 6.5" Draw Tube Thru Hole, Belt-Type Chip Conveyor, Steady Rest.
Have a Haas ST-40LB or Another CNC Lathe or Turning Center to Sell or Trade?
We'll be happy to work with you or your OEM distributor if it's a trade-in. Tell us about your Haas ST-40LB or other cnc lathe or turning center and we'll review the details.
