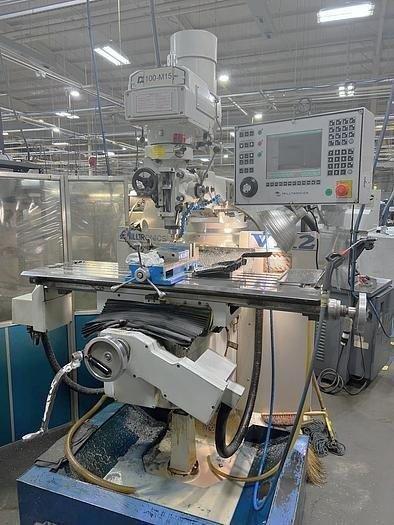

2006 Milltronics VK-2 CNC Knee Mill

Mills, CNC   •   Stock #31031

Machine Highlights

X-30" Y-15" Quill tvl-5" Knee tvl-16", 4000 rpm, 5 hp

Year2006
ManufacturerMilltronics
ModelVK-2 CNC Knee Mill
ControlMilltronics CNC 7000
Stock #31031
Call (256) 980-1200
2006 Milltronics VK-2 CNC Knee Mill
2006 Milltronics VK-2 CNC Knee Mill2006 Milltronics VK-2 CNC Knee Mill2006 Milltronics VK-2 CNC Knee Mill

Specifications

Table:
Width12 "
Length50 "
Load1500 Lbs.
Travels:
X-Axis (Longitudinal)30 "
Y-Axis (Cross)15 "
Z-Axis (Vertical)Quill 5 "
Knee16 "
Spindle:
Speeds60 - 4000 RPM
TaperR8
Motor5 HP

Equipment & Options

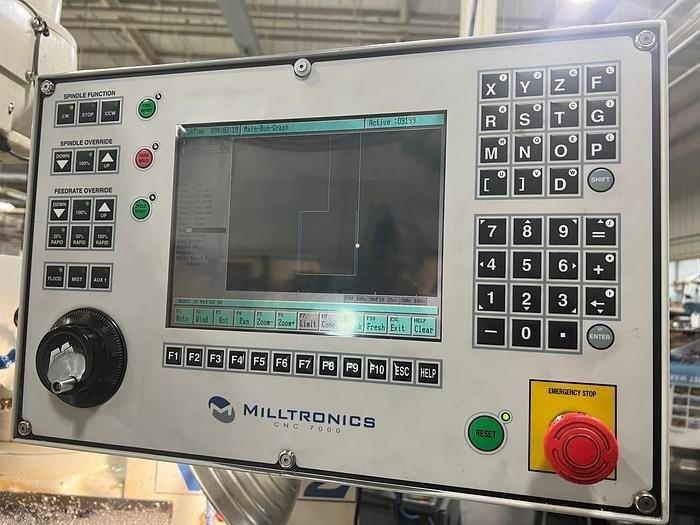

Equipped With:Milltronics CNC 7000 2-Axis Control
Conversational Programming
Variable Speed Spindle
2-Axis CNC Capability (X & Y-Axes)
Manual Quill & Knee Movement
Quill Scale
RS-232 Port
3.5" Floppy Drive
Work Light
Auto Lube System
Coolant Collection Pan
Boxed Ways on X & Y Axes
AC Spindle Drive
Parameters Disk
Set of Manuals

Machine Overview

This 2006 Milltronics VK-2 CNC Knee Mill CNC Knee Mill combines conventional milling flexibility with CNC control for toolroom, prototype, and general machining applications. Key specifications include 30″ X-axis travel, 15″ Y-axis travel, Quill 5″ Z-axis travel, 60 - 4000 RPM spindle speed range, and 5 HP spindle motor.

The machine is equipped with Milltronics CNC 7000. Additional equipment and options include Milltronics CNC 7000 2-Axis Control, Conversational Programming, Variable Speed Spindle, 2-Axis CNC Capability (X & Y-Axes), Manual Quill & Knee Movement, Quill Scale, RS-232 Port, 3.5″ Floppy Drive, Work Light, and Auto Lube System. This combination makes it a strong candidate for shops seeking a well-equipped used machine with practical production capability.
