Genmill T-700 Vertical Machining Center – 2018

CNC Machining Centers, Vertical • Stock #31090

Browse used vertical machining centers →

Machine Highlights

X-27.56" Y-16.93" Z-12.99", 12000 rpm, 7.5 hp, BT30BBT Big plus Spindle, 21 Pos Turret, 2361 IPM Rapids, 50 tool holders, (3) kurt vises

Year2018

ManufacturerGenmill

ModelT-700

Control

Stock #31090

Call (256) 980-1200

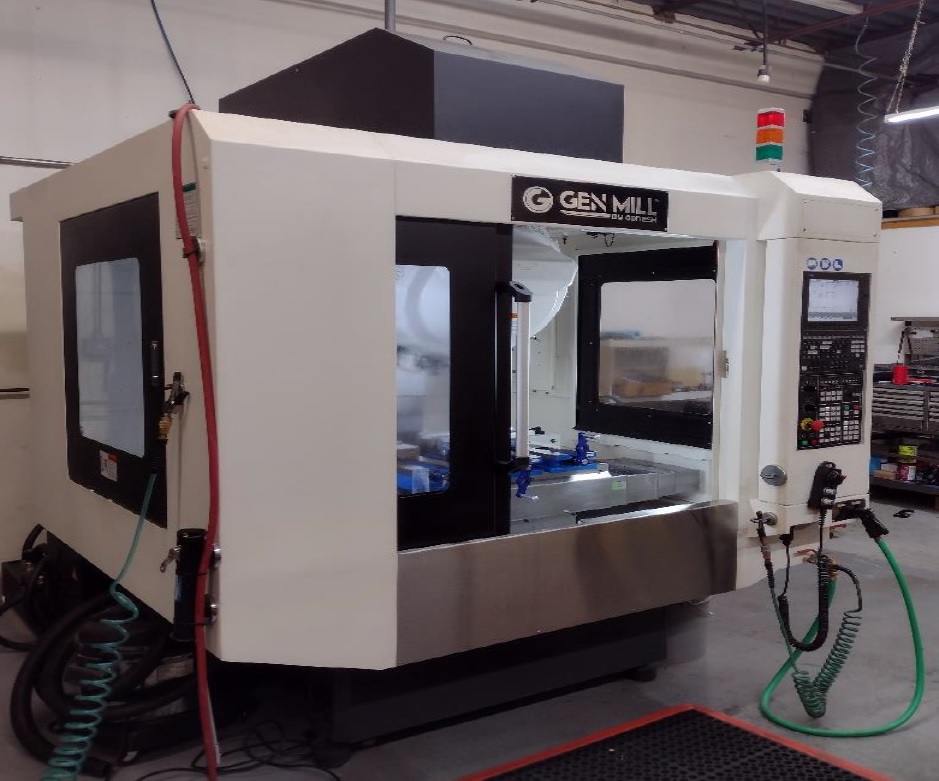

Used 2018 Genmill T-700 Vertical Machining Center for sale - photo 1

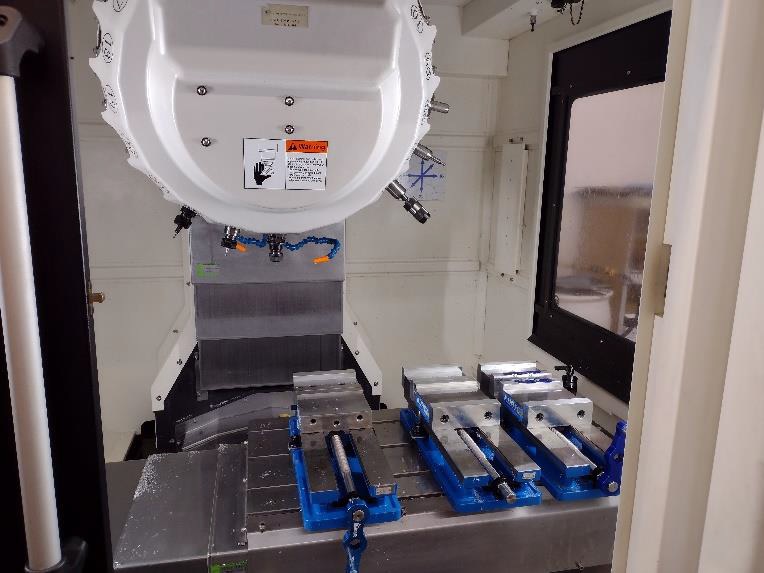

Used 2018 Genmill T-700 Vertical Machining Center - thumbnail 1

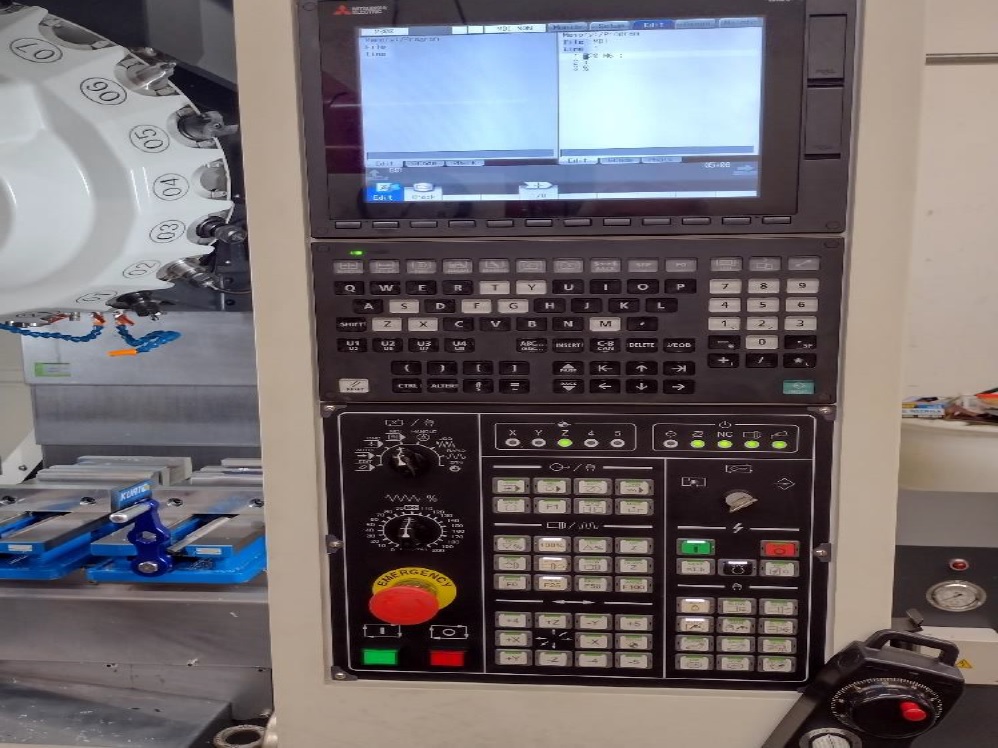

Used 2018 Genmill T-700 Vertical Machining Center - thumbnail 2

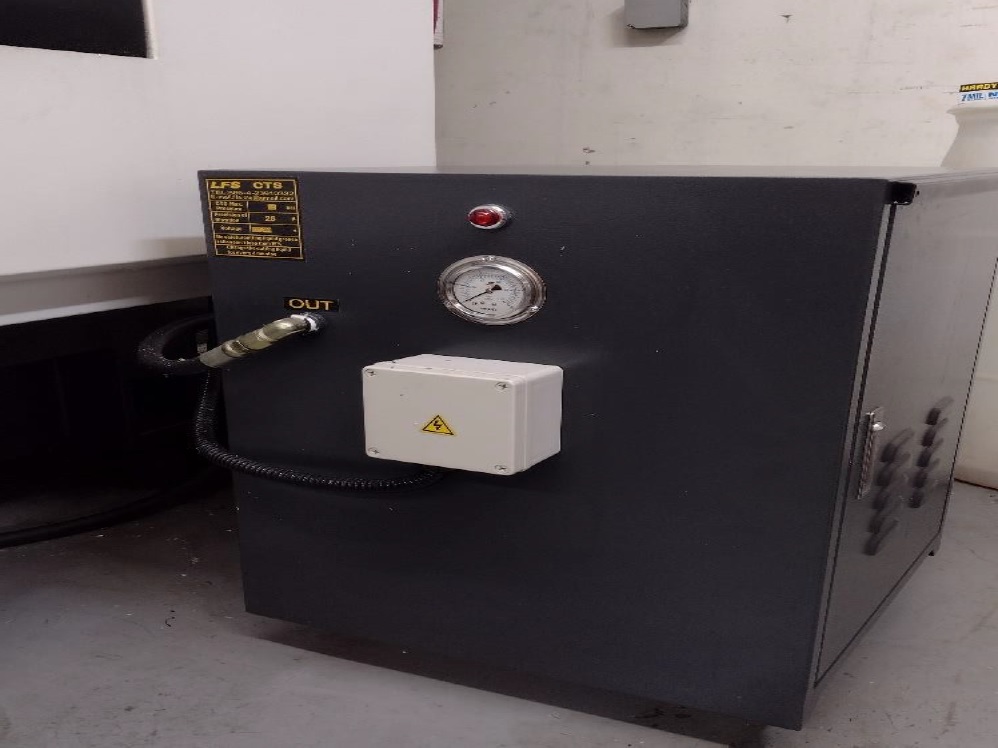

Used 2018 Genmill T-700 Vertical Machining Center - thumbnail 3

Used 2018 Genmill T-700 Vertical Machining Center - thumbnail 4

Specifications

Table:

Width15.75 "

Length33.4 "

Maximum Table Load550 lbs

Travels:

X-Axis Travel27.56 "

Y-Axis Travel16.93 "

Z-Axis Travel12.99 "

Spindle Nose to Table Top Minimum5.1 "

Maximum18.1 "

Spindle:

Spindle Speed: Minimum (RPM)0 rpm

Maximum12000 rpm

Spindle TaperBT30BBT

Main Motor (HP)7.5 hp

Tool Changer:

Tool Changer Positions21 atc

Equipment & Options

Equipped With:Mitsubishi 3-Axis CNC Control

6000 rpm Synchronous Tapping

BT30 BBT Big Plus Spindle Taper

12 Position Drum Turret with 1.6 second Chip to Chip

2362 IPM Rapids

(50) Tool Holders

(3) Kurt Vises

Machine Overview

This 2018 Genmill T-700 CNC Machining Centers, Vertical provides a capable platform for precision and production machining. Key specifications include 27.56″ X-axis travel, 16.93″ Y-axis travel, 12.99″ Z-axis travel, spindle speeds up to 12000 rpm, 7.5 hp spindle power, 21 atc automatic tool changer.

The machine is equipped with Mitsubishi 3-Axis CNC Control, 6000 rpm Synchronous Tapping, BT30 BBT Big Plus Spindle Taper, 12 Position Drum Turret with 1.6 second Chip to Chip, 2362 IPM Rapids, (50) Tool Holders, (3) Kurt Vises.
