Ganesh GTD-4460
Lathes, Manual • Stock #31178
Machine Highlights
44" Swing, 55"Swing/Gap, 28" Swing/Cross slide, 60" Center distance, 12" Bore, A2-11 spdl nose, 30 hp, Tool Post, Tailstock, DRO,
Year
ManufacturerGanesh
ModelGTD-4460
Control
Stock #31178
Specifications
Capacity:
Swing44 "
Swing in Gap55.11 "
Swing Over Cross Slide/carriage27.95 "
Distance Between Centers60 "
Spindle:
Spindle Speed: Minimum (RPM)7 rpm
Maximum264 rpm
Spindle Bore12 "
Spindle NoseA2-11
Main Motor (HP)30 hp
Chuck:
Diameter24.5 "
Hole Thru12.5 "
Number of Jaws3
Equipment & Options
Equipped With:4 Way Dorian Tool Post

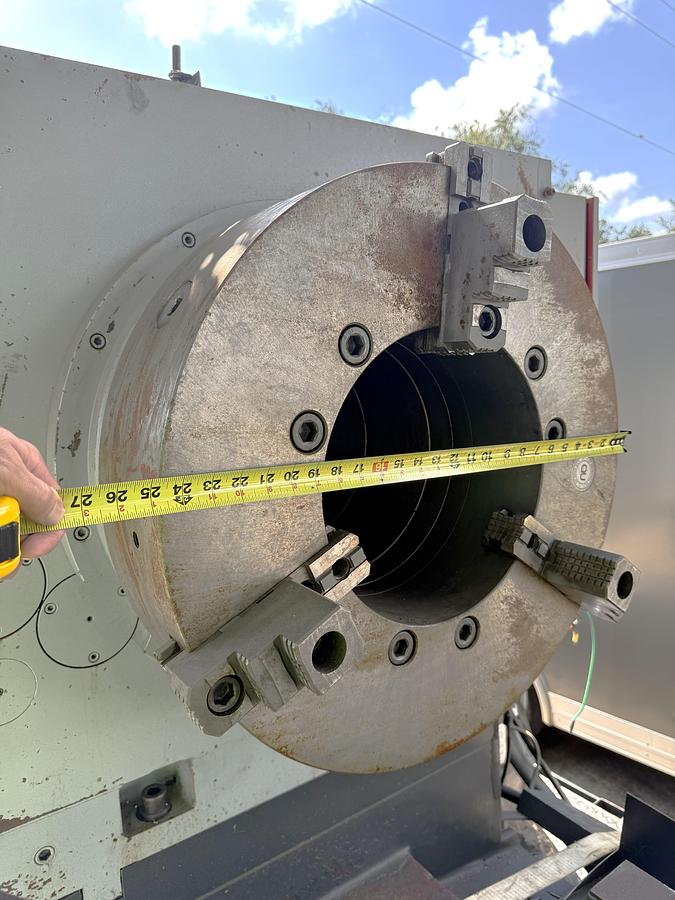

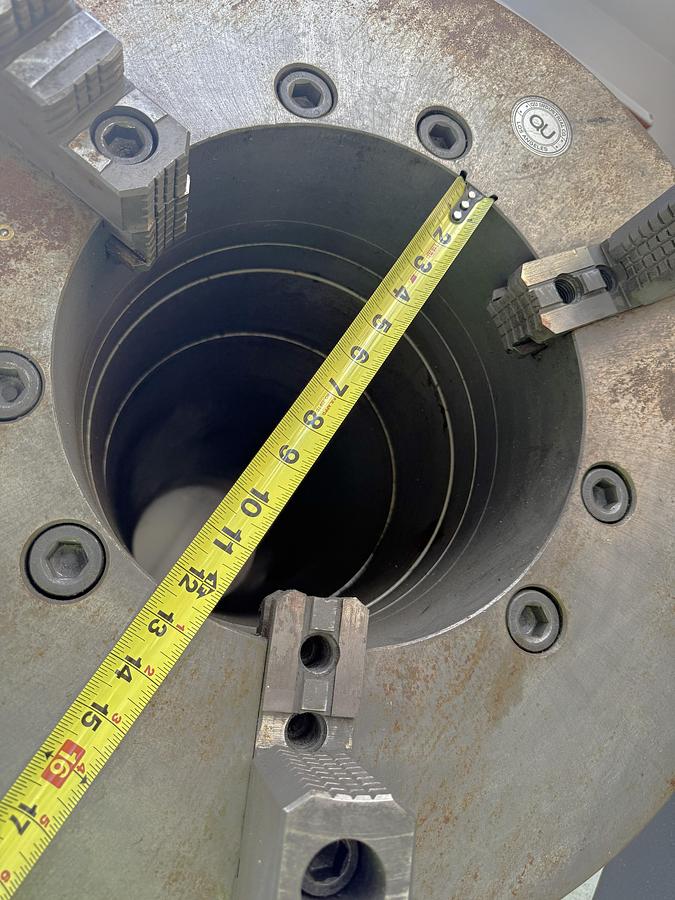

24.5" QU Industrial 3 Jaw Manual Chuck with 12.5" Bore
Newall DP700 Digital Readout
Heavy Duty Tailstock
Hardened & Ground Bedways with Turcite B Coating
Rapid Traverse
480V / 3 Phase
12 Speed, High/Low Range
Taper Attachment
Flood Coolant System w/ Coolant Pump
Thread Dial Indicator for Inch/Metric Threading
Automatic Way Lubrication
