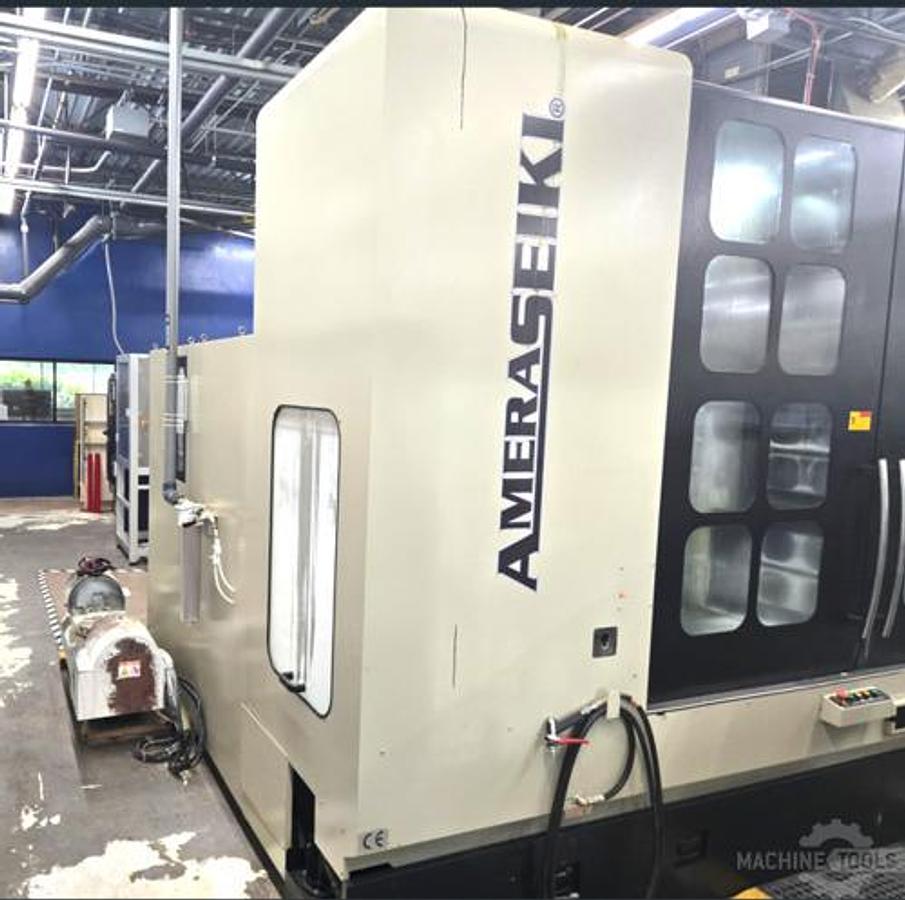

2022 Amera-Seiki VTC-5
CNC Machining Centers, Vertical • Stock #31179
Machine Highlights
X-88.6" Y-24.4" Z-24.4", 10000 rpm, 20 hp, 32 atc, $th Axis Drive, Gearbox, Auger
Year2022
ManufacturerAmera-Seiki
ModelVTC-5
ControlFanuc 0i-MF Plus Control
Stock #31179
Specifications
Table:
Width23.6 "
Length98.4 "
Maximum Table Load3960 lbs
Travels:
X-Axis Travel88.6 "
Y-Axis Travel24.4 "
Z-Axis Travel24.4 "
Spindle Nose to Table Top Minimum4.728 "
Maximum29.156 "
Spindle:
Spindle Speed: Minimum (RPM)0 rpm
Maximum10000 rpm
Spindle Taper40
Main Motor (HP)20 hp
Tool Changer:
Tool Changer Positions32 atc
Equipment & Options
Equipped With:Fanuc 0i-MF Plus 4-Axis CNC Control
4th Axis Drive
10,000 RPM Spindle with 2 Speed Gearbox
Rigid Tapping
Remote Jog Handle
Auger Style Chip Conveyor
Spindle Air Blow
Heat Exchanger for Electrical Cabinet
Flood Coolant
USB Port Interface
Chiller Unit
Chip Flush System
Traveling Column Design
