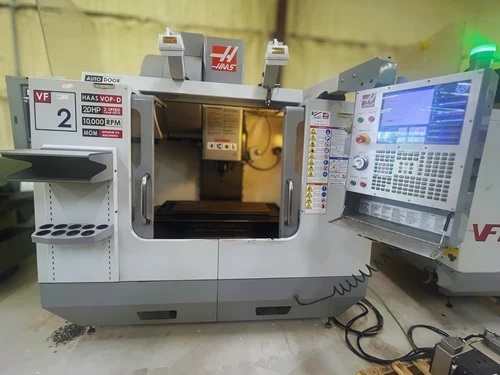

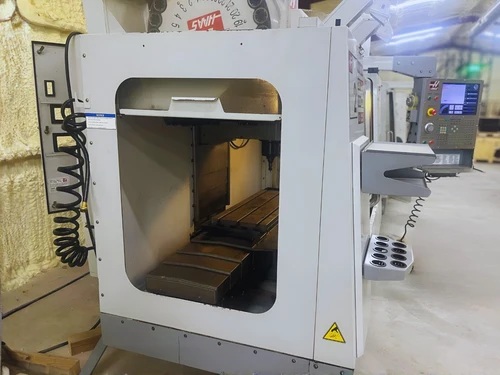

2007 Haas VF-2B 5-Axis
CNC Machining Centers, Vertical • Stock #31187
Machine Highlights
X-30" Y-16" Z-20", Cat40, 10000 rpm, 20 hp, 24+1 SMATC, Gearbox, 4th-5th-Axis Drives, TR160 Trunnion Table, WIPS Probing
Year2007
ManufacturerHaas
ModelVF-2B 5-Axis
ControlHaas CNC/CRT
Stock #31187
Specifications
Table:
Width14 "
Length36 "
Maximum Table Load3000 lbs
Travels:
X-Axis Travel30 "
Y-Axis Travel16 "
Z-Axis Travel20 "
Spindle Nose to Table Top Minimum4 "
Maximum24 "
Spindle:
Spindle Speed: Minimum (RPM)0 rpm
Maximum10000 rpm
Spindle Taper40
Main Motor (HP)20 hp
Tool Changer:
Tool Changer Positions24+1 atc
Equipment & Options

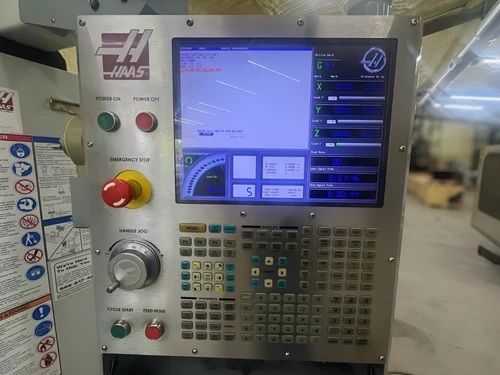

Equipped With:Haas 5-Axis CNC Control
24+1 Position Side Mount ATC
WIPS: Wireless Intuitive Probing System
4th-Axis Drive
5th-Axis Drive
TR160 5-Axis Trunnion Table
Auto Door
Programmable Coolant
USB Port
Remote Jog Handle
10,000 RPM Spindle
Gearbox
