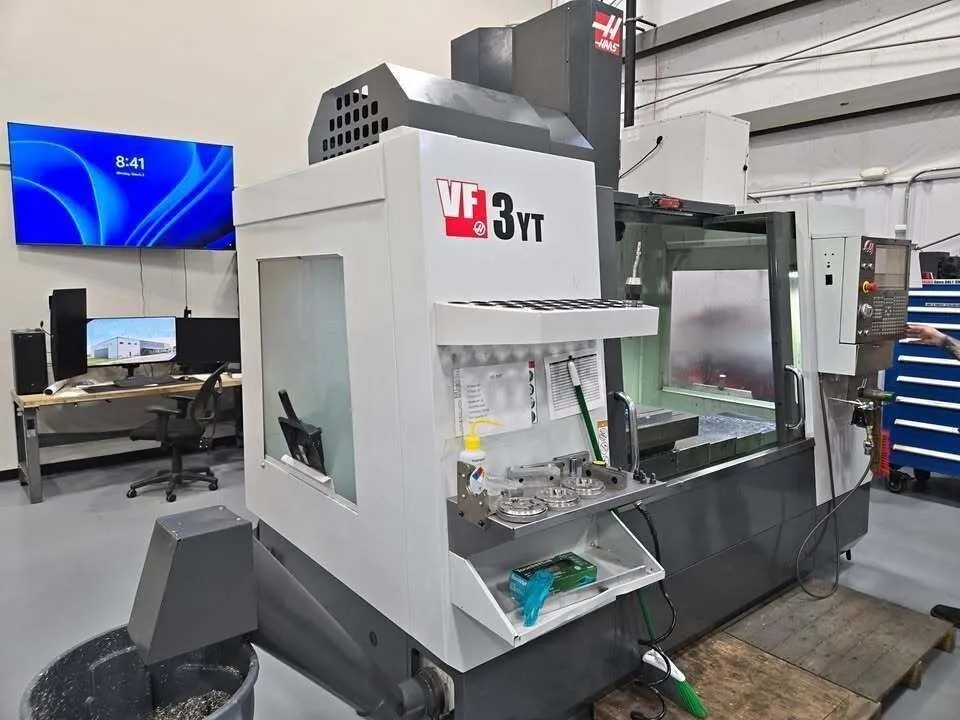

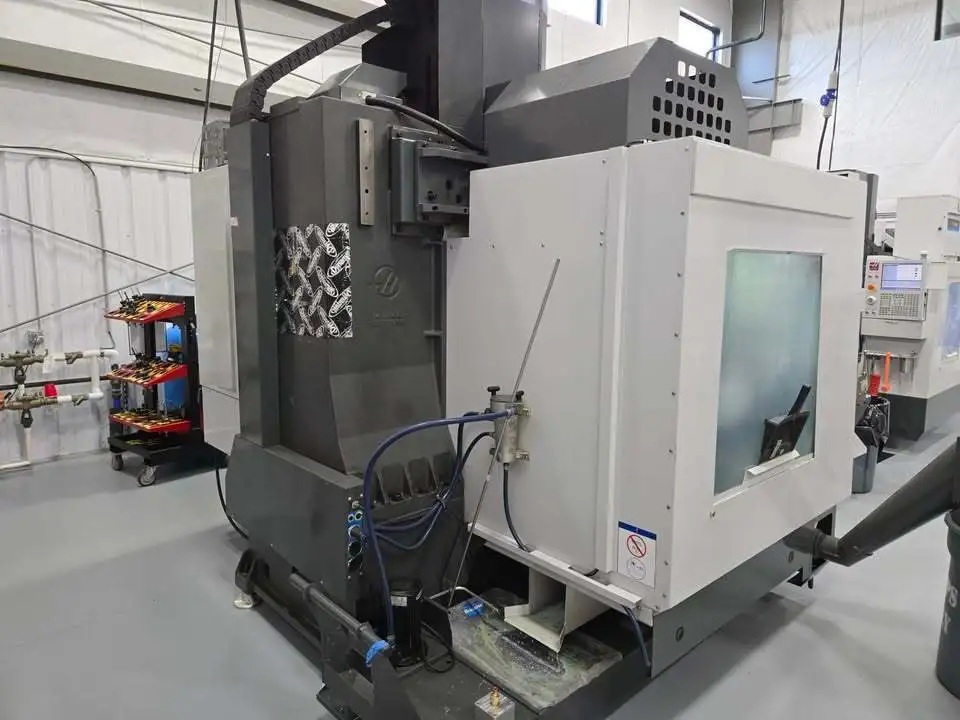

2017 Haas VF-3YT/40

CNC Machining Centers, Vertical • Stock #31191

Machine Highlights

X-40" Y-26" Z-25", 30 hp, 8100 rpm, 30+1 ATC, Pcool, Auger, HSM, WIPS

Year2017

ManufacturerHaas

ModelVF-3YT/40

ControlHaas CNC/CRT

Stock #31191

Call (256) 980-1200

Specifications

Table:

Width24 "

Length54 "

Maximum Table Load3500 lbs

Travels:

X-Axis Travel40 "

Y-Axis Travel26 "

Z-Axis Travel25 "

Spindle Nose to Table Top Minimum4.2 "

Maximum29.2 "

Spindle:

Spindle Speed: Minimum (RPM)0 rpm

Maximum8100 rpm

Spindle Taper40

Main Motor (HP)30 hp

Tool Changer:

Tool Changer Positions30+1 atc

Equipment & Options

Equipped With:Haas CNC Control with 15" Color LCD Monitor

1GB Program Memory, Ethernet Interface, USB Port, Rigid Tapping

High-speed machining

Wireless intuitive probing system

Programmable coolant nozzle

Auger-style chip conveyor

30+1 Position Sidemount Tool Changer

Haas Connect

Edia Display M-Code

Machine Overview

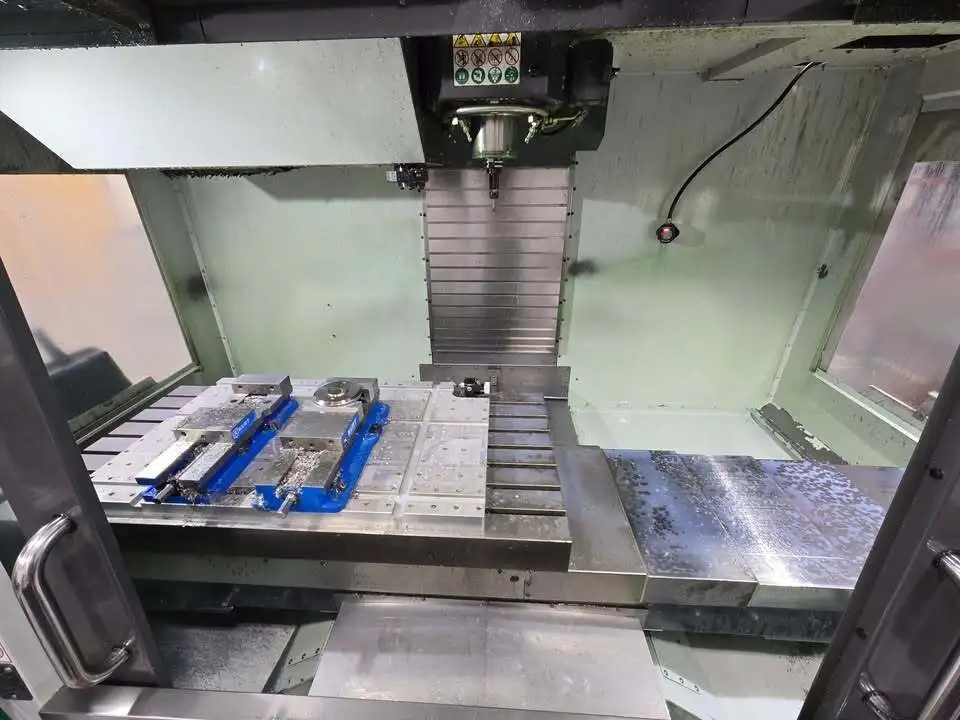

This 2017 Haas VF-3YT/40 Vertical Machining Center offers extended Y-axis travel and a versatile work envelope for precision machining and production applications. It features 40″ X-axis, 26″ Y-axis, and 25″ Z-axis travels, a 54″ x 24″ table with 3,500 lb capacity, an 8,100 rpm 40-taper spindle, 30 hp main motor, and a 30+1 position automatic tool changer.

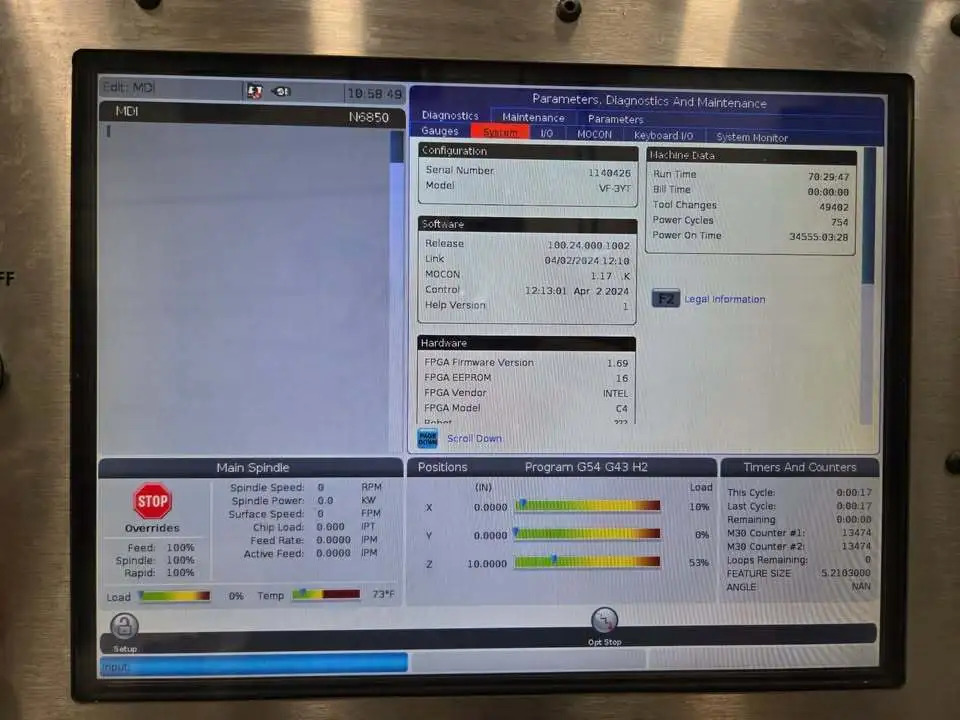

The machine is equipped with a Haas CNC Control with 15″ color LCD monitor, 1GB program memory, Ethernet interface, USB port, rigid tapping, high-speed machining, Wireless Intuitive Probing System, programmable coolant nozzle, auger-style chip conveyor, 30+1 position sidemount tool changer, HaasConnect, and Media Display M-Code.
