2021 Axile G6 5-Axis

CNC Machining Centers, Vertical • Stock #31199

Machine Highlights

23.6" Dai Rotary Table, X-25.6" Y-33.5" Z-19.7", 20000 rpm, 60 hp, 80 ATC

Year2021

ManufacturerAxile

ModelG6 5-Axis

Control

Stock #31199

Call (256) 980-1200

Specifications

Travels:

X-Axis Travel25.6 "

Y-Axis Travel33.5 "

Z-Axis Travel19.7 "

Spindle Nose to Table Top Minimum5.9 "

Maximum24.8 "

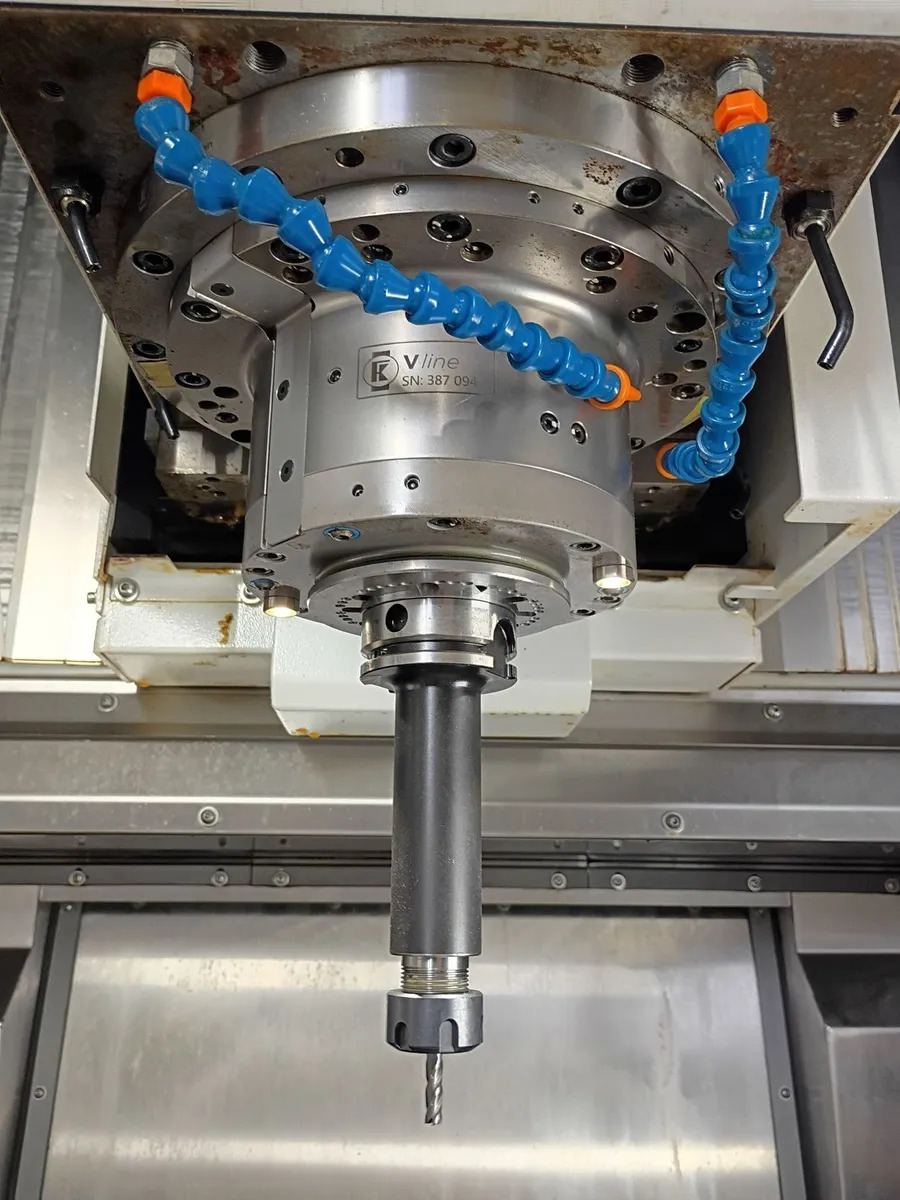

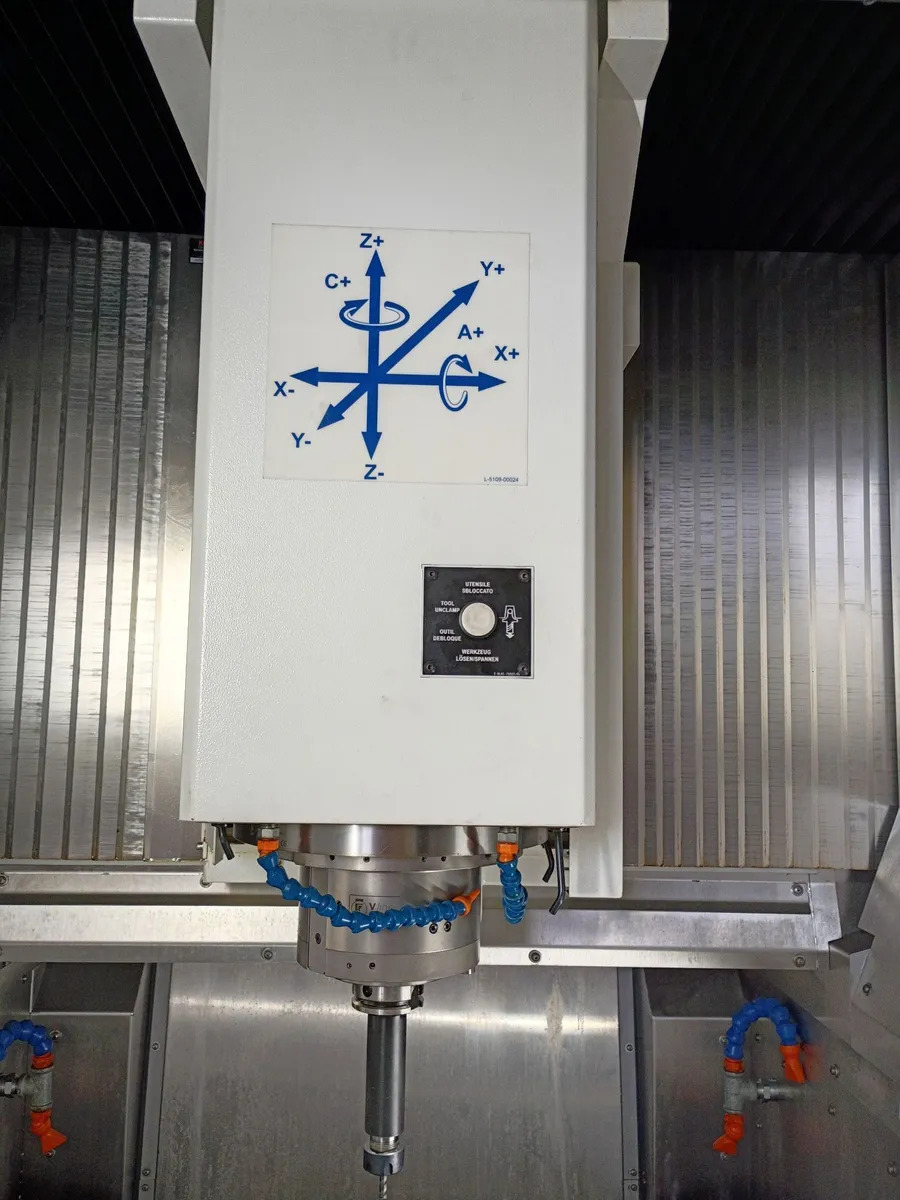

Spindle:

Spindle Speed: Minimum (RPM)0 rpm

Maximum20000 rpm

Spindle TaperHSK-A63

Main Motor (HP)40/60 hp

Tool Changer:

Tool Changer Positions80 atc

Table:

Size23.6" Diameter

Rotary PositionFull Contouring

Tilting (A-Axis)+/- 120 degree

Maximum Workpiece Weight1323 lbs

Equipment & Options

Equipped With:Fanuc 31i B5 Plus 5-Axis CNC Control

Capable of 5-Sided and 5-Axis Simultaneous Machining

High performance built-in spindle: 20,000 RPM

Gantry construction of cast iron base offers high rigidity, precision performance and

Stress release. The solid and rigid machine frame is made from Meehanite Casting.

45mm roller type linear guideways on 3 axes and 3pcs linear guideways on z axis

C3 double nuts high-class precision ballscrews.

High accuracy rotary table is driven and tilted by high torque motors.

Large working space with workpiece loading at 600kg.

High precision encoders on A axis & C axis.

Fully enclosed guarding

Chip removal system including flushing device inside and on bottom guarding

Heidenhain Linear scale

BLUM tool setter system integrated in the table

Kinematics + reference ball

Workpiece probe Heidenhain TS-740+ SE-640

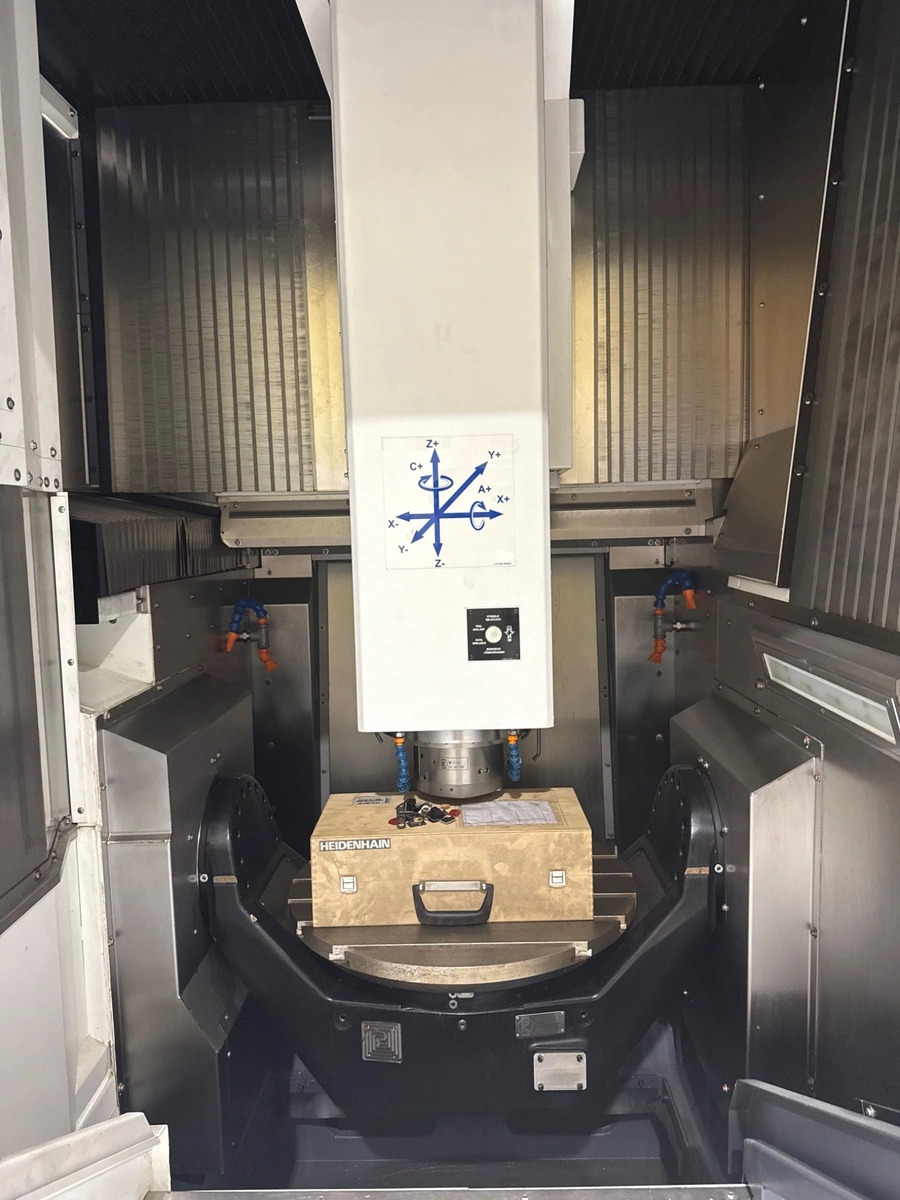

Machine Overview

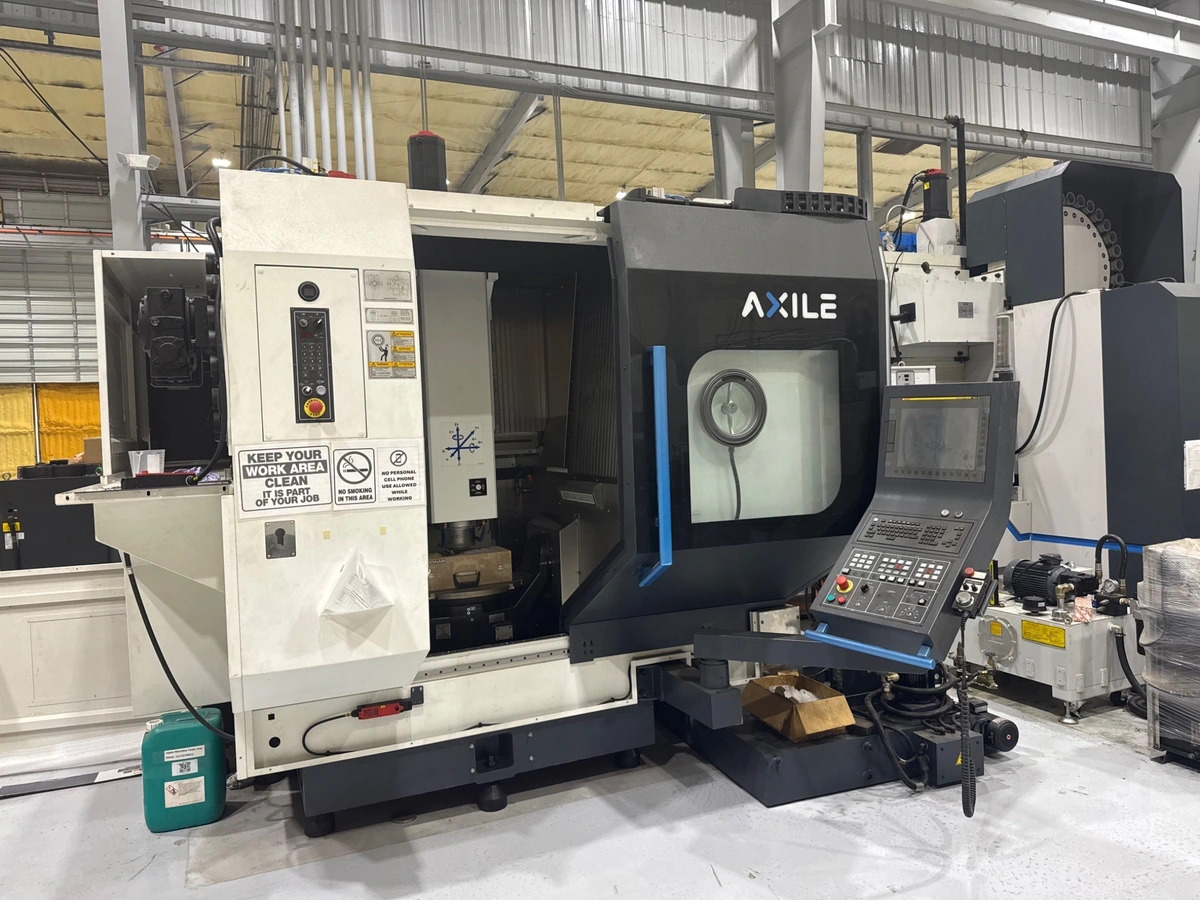

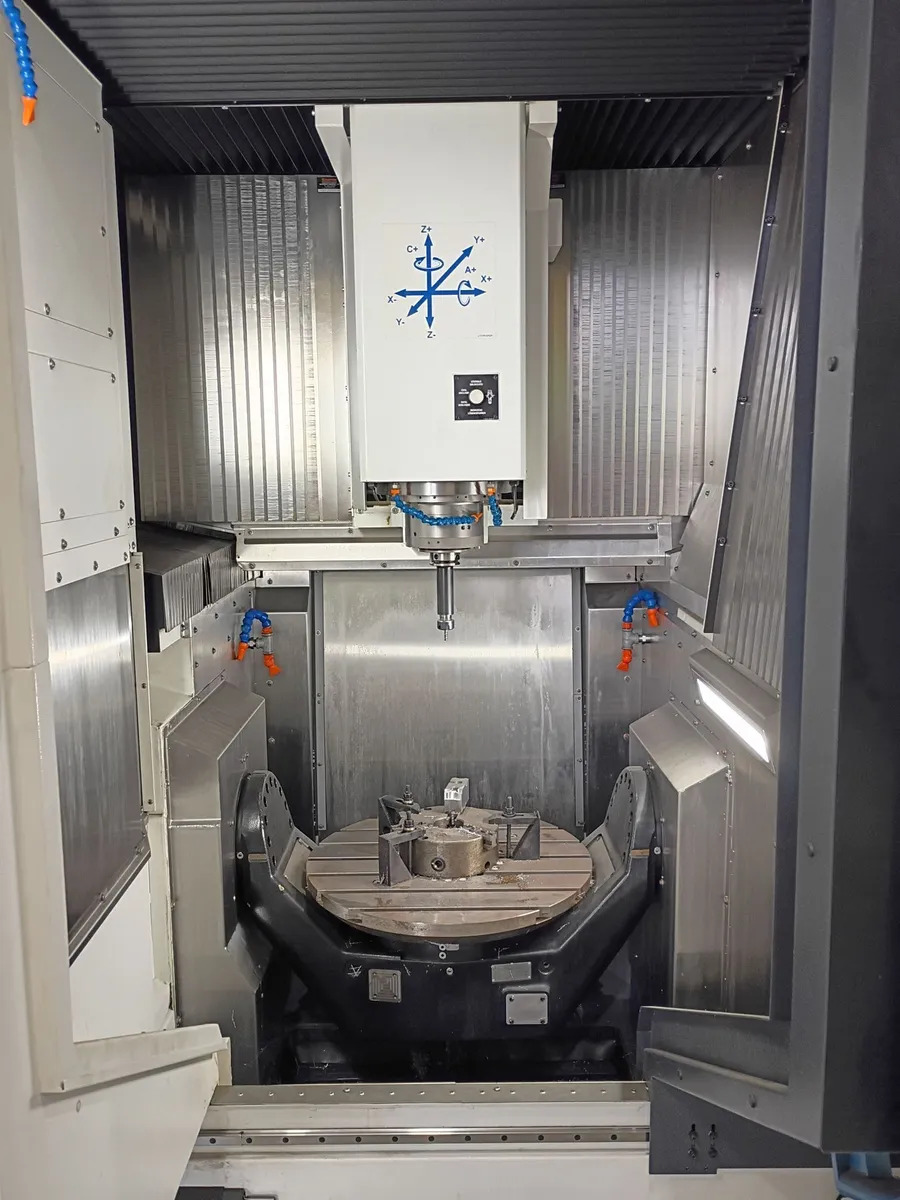

This 2021 Axile G6 5-Axis Vertical Machining Center is designed for 5-sided and simultaneous 5-axis machining. It provides 25.6″ X-axis, 33.5″ Y-axis, and 19.7″ Z-axis travels, a 23.6″ diameter rotary table with ±120-degree A-axis tilt, a 20,000 rpm HSK-A63 spindle rated at 40/60 hp, and an 80-position automatic tool changer.

The machine is equipped with a Fanuc 31i-B5 Plus 5-axis CNC Control, Heidenhain linear scales, BLUM tool setter, Kinematics reference ball, Heidenhain TS-740/SE-640 workpiece probing system, high-precision A- and C-axis encoders, and a chip-removal/flushing system. Its gantry construction, roller linear guideways, precision ballscrews, and torque-motor rotary table support high-accuracy multi-axis machining.
