2017 Amada EG-6013AR
Press Brake • Stock #31200
Machine Highlights
60 ton, 55" bending length, 39.8" between housings, Fully Auto bending system, Amada EG-Robot,
Year2017
ManufacturerAmada
ModelEG-6013AR
Control
Stock #31200
Specifications
Capacity:
Tonnage60 ton
Bed Length55.1 "
Distance Between Housings39.8 "
Length of Stroke5.9 "
Open Height25 "
Equipment & Options
Equippede With:Amada AMNC 3i Control
Fully Automatic Bending System
Amada EG-Robot (22lb Capacity, 6 Articulated Axes & 1 Travel Axis)
Dual Servo Press (DSP) Drive Mechanism
Servo-Electric Motors
Dedicated Enclosure
(4) Part Loading Tables
Unloading Conveyor
Gripper Station
Tool Stocker
Machine Overview

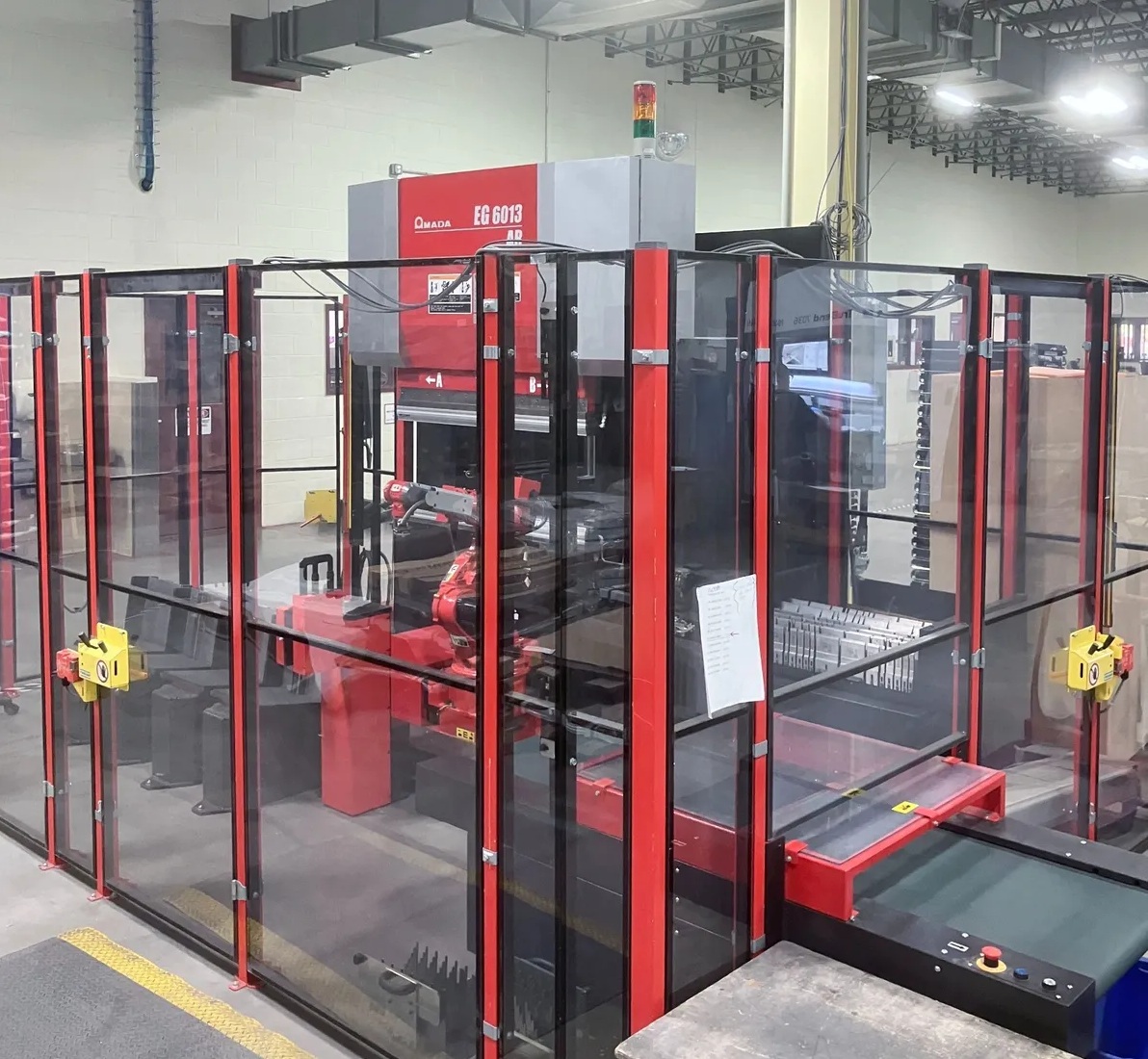

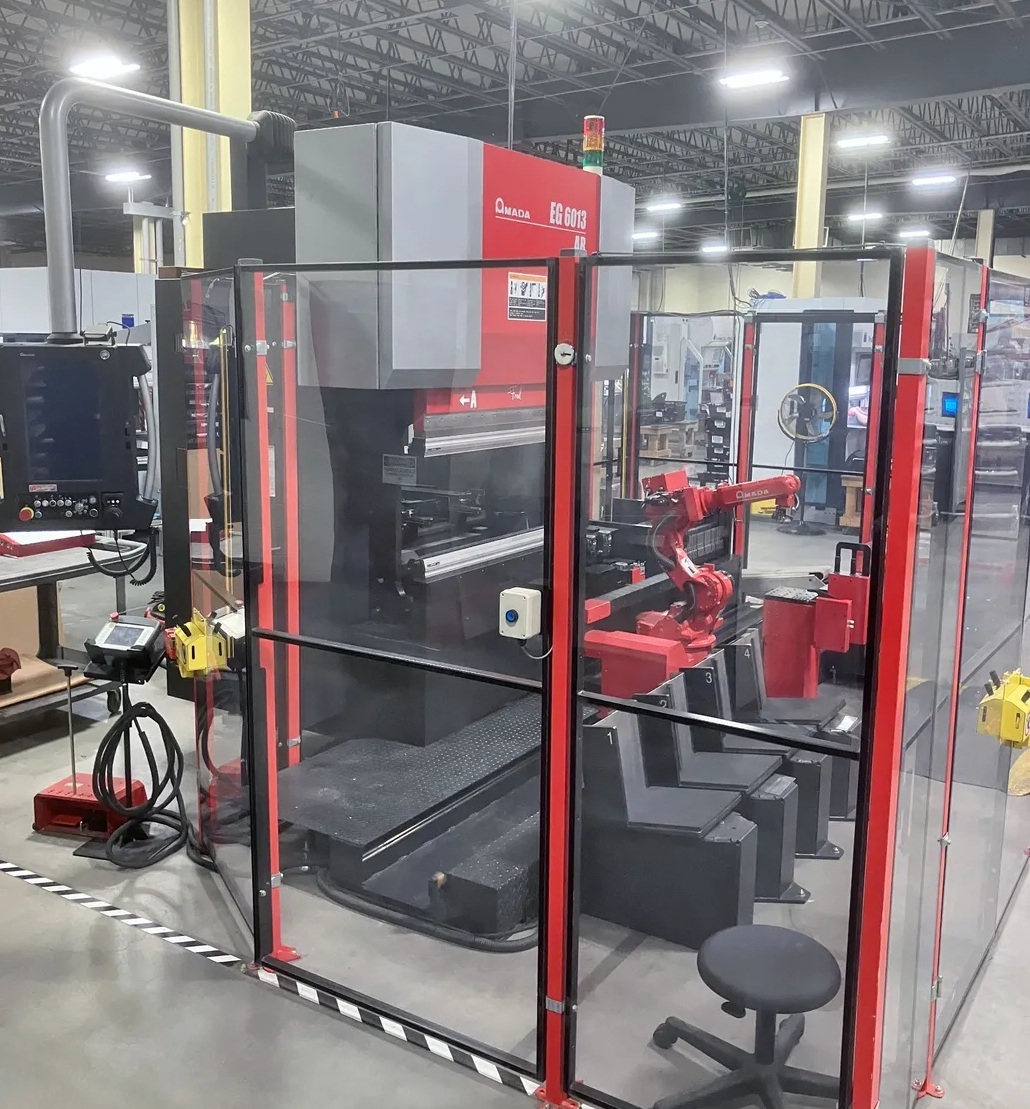

This 2017 Amada EG-6013AR Press Brake is a 60-ton fully automatic bending system with a 55.1″ bed length, 39.8″ distance between housings, 5.9″ stroke, and 25″ open height. The machine uses Amada's Dual Servo Press drive mechanism with servo-electric motors.
The system is equipped with an Amada AMNC 3i Control and Amada EG-Robot with 22 lb capacity, six articulated axes plus one travel axis. Additional automation includes four part-loading tables, unloading conveyor, gripper station, tool stocker, and dedicated enclosure.
