2016 Amada HG1003ARS

Press Brake • Stock #31201

Machine Highlights

100 ton, 120" bend length, 106" between housing, Robotic Bending Cell, Auto Tool/Die Changer

Year2016

ManufacturerAmada

ModelHG1003ARS

Control

Stock #31201

Call (256) 980-1200

Specifications

Capacity:

Tonnage100 ton

Bed Length120.5 "

Distance Between Housings106.3 "

Length of Stroke9.8 "

Open Height23.5 "

Equipment & Options

Equipped With:Amada AMNC 3i CNC Control with Touch Screen

Robotic Bending Cell

Amada HGRobot020/Yaskawa DX100 Robotic Arm (44lb Payload) 7-Axis

Automatic Tool Changer (Capable of Storing up to 15 Punch Stockers & 18 Die Stockers)

Automatic Gripper Changer

Roller Table/Conveyor for Finished Parts (Amada PF-A3)

An Assortment of Dies & Punches

Servo-Hydraulic (Hybrid) Press Brake

Hybrid Drive System That Combines the High Speed & Precision of Electric

Motor With the Power of Hydraulic Cylinders.

Machine Overview

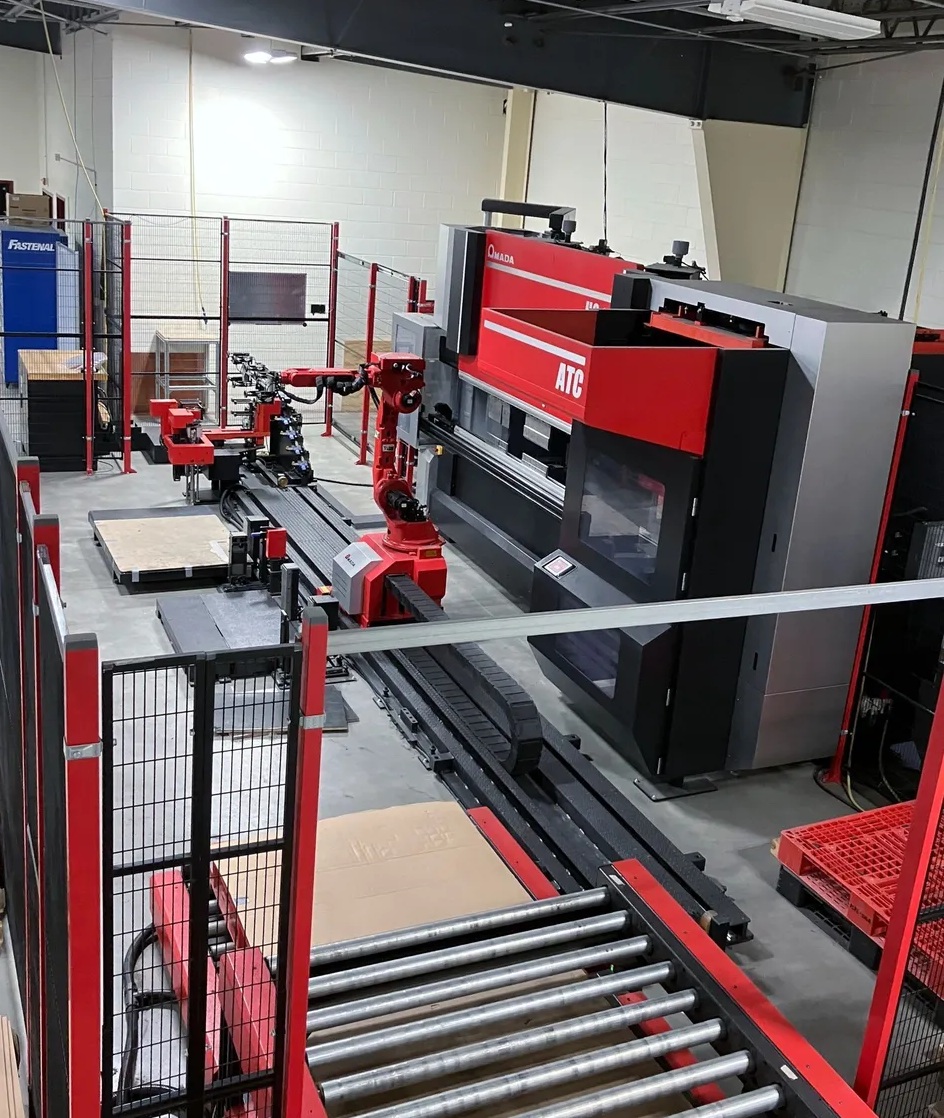

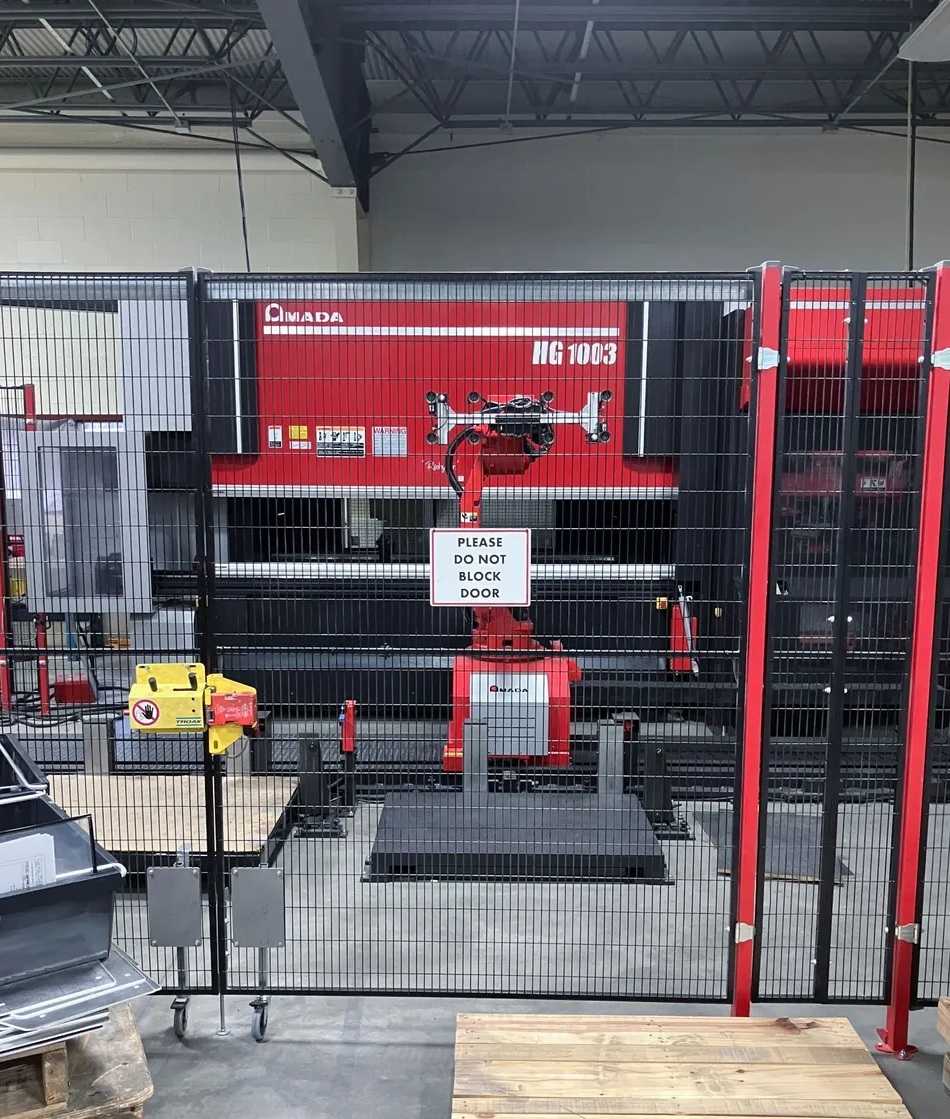

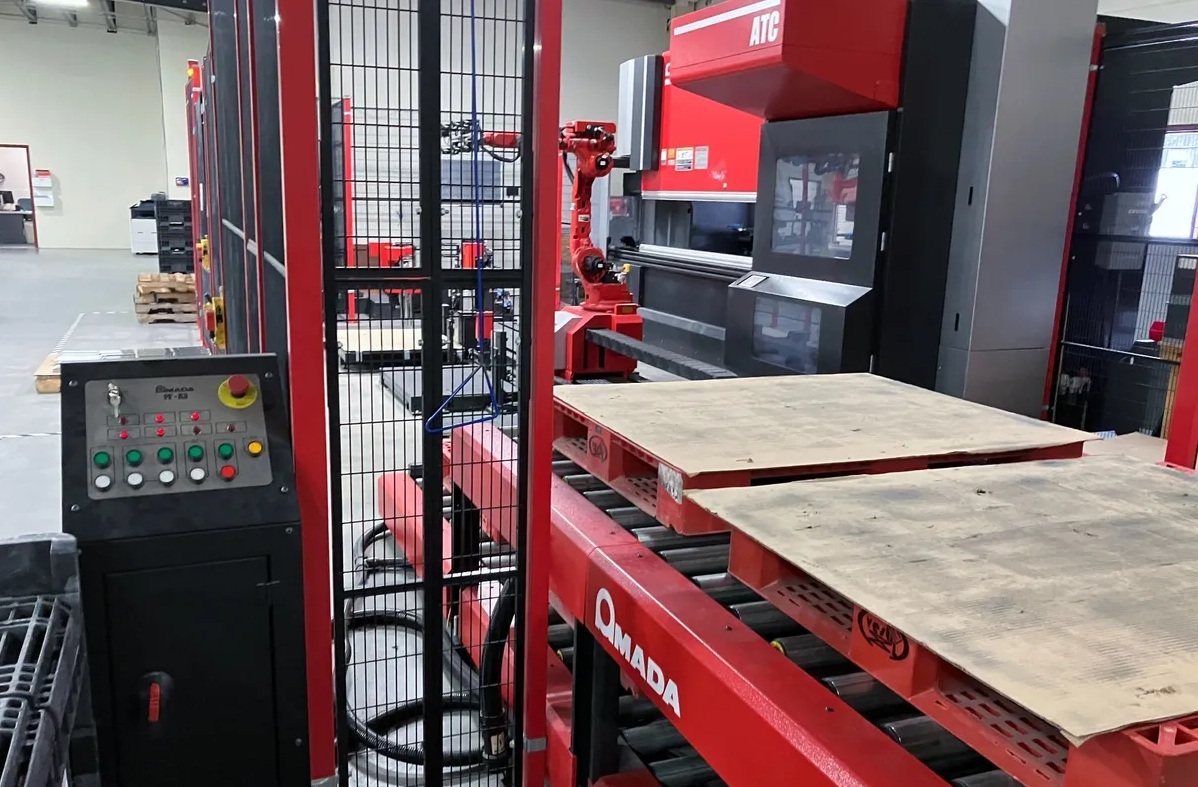

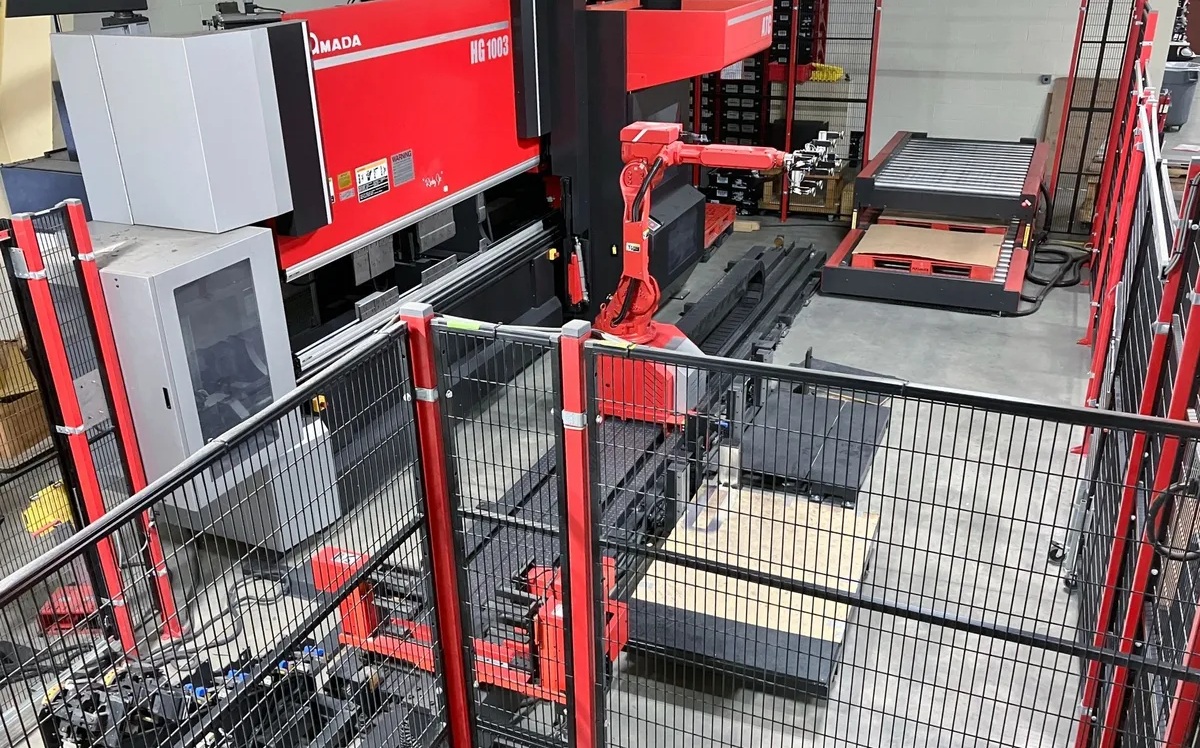

This 2016 Amada HG1003ARS Press Brake is a 100-ton robotic bending cell with a 120.5″ bed length, 106.3″ distance between housings, 9.8″ stroke, and 23.5″ open height. It uses a servo-hydraulic hybrid drive system combining electric-motor control with hydraulic-cylinder power.

The machine is equipped with an Amada AMNC 3i CNC Control with touch screen and an Amada HGRobot020/Yaskawa DX100 7-axis robotic arm with 44 lb payload. Additional automation includes an automatic tool changer capable of storing up to 15 punch stockers and 18 die stockers, automatic gripper changer, Amada PF-A3 roller table/conveyor, and an assortment of dies and punches.
