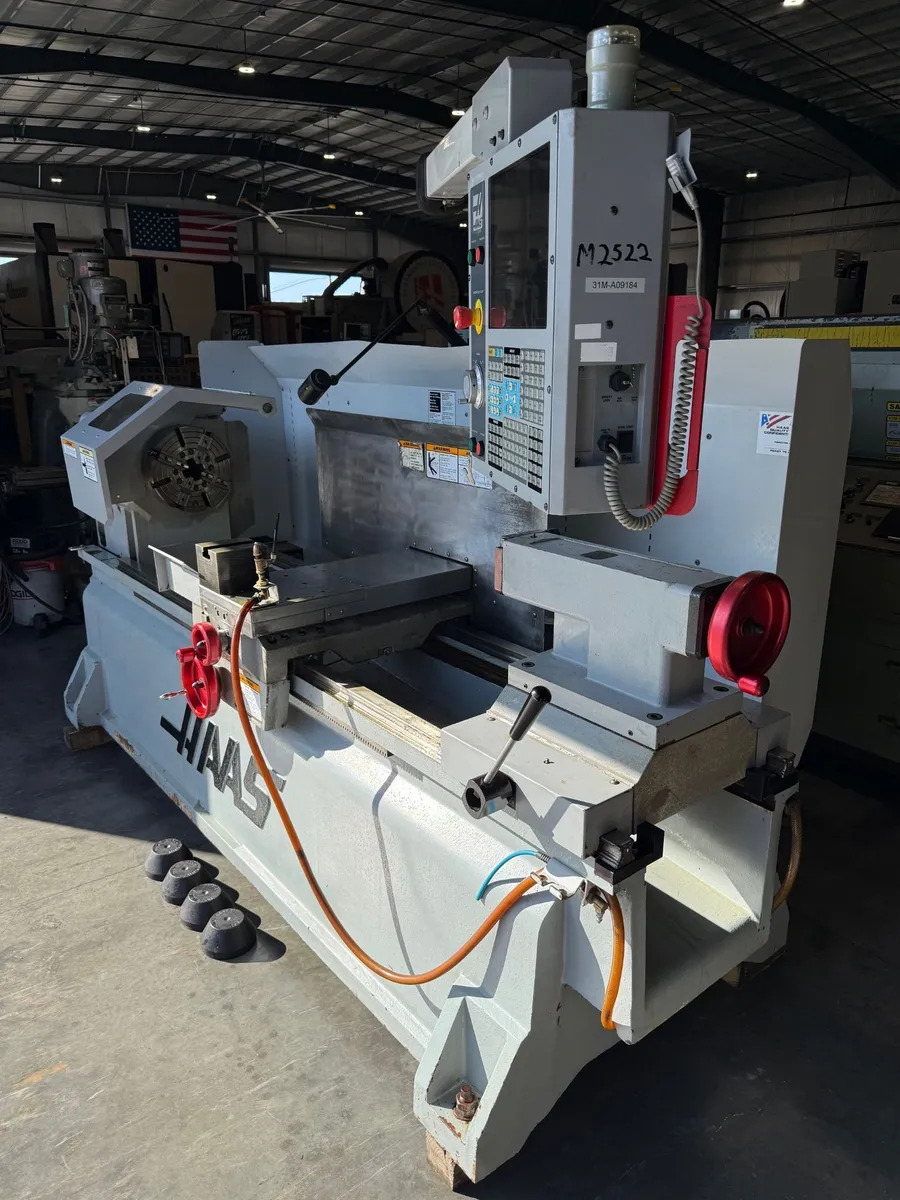

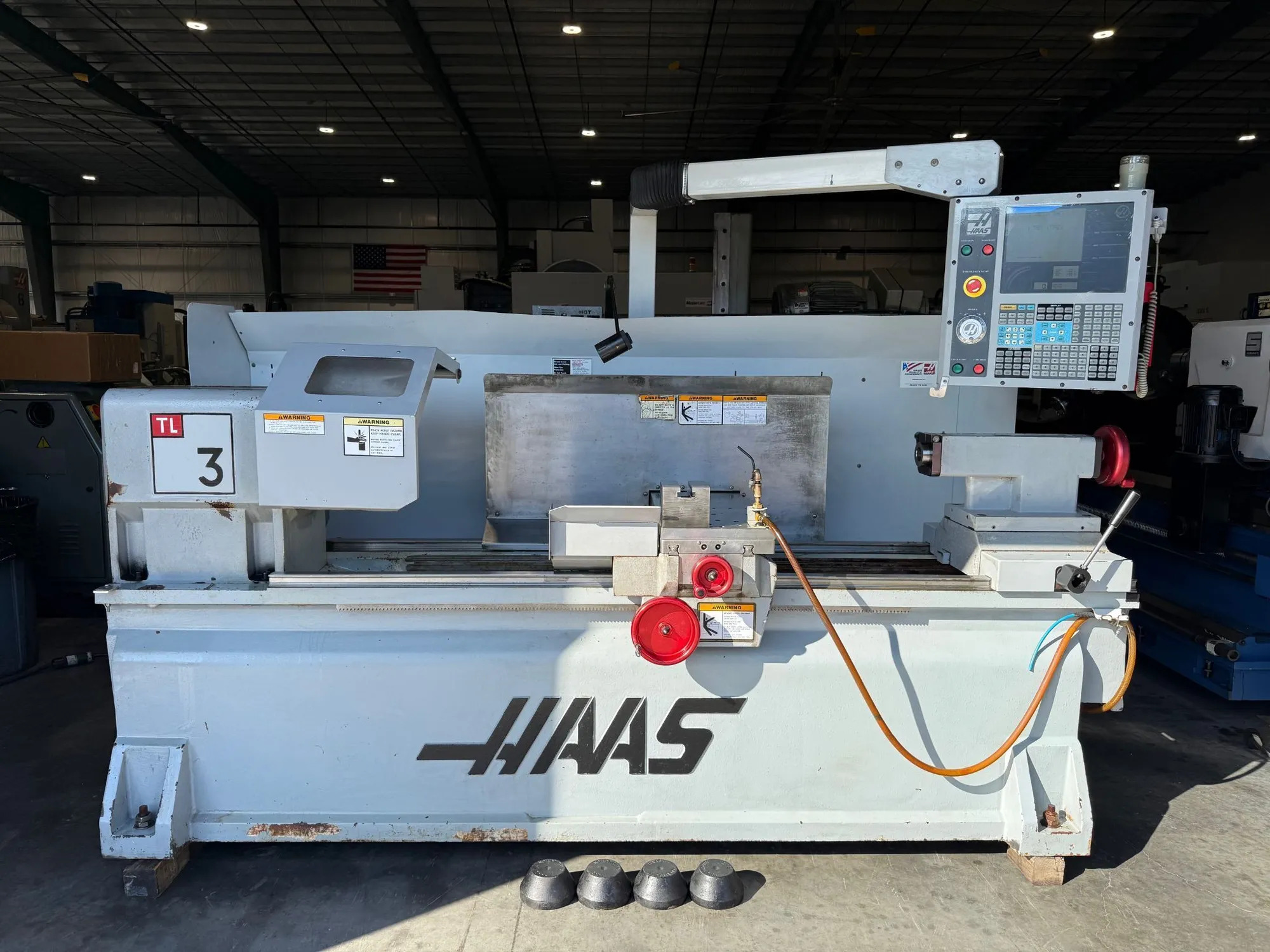

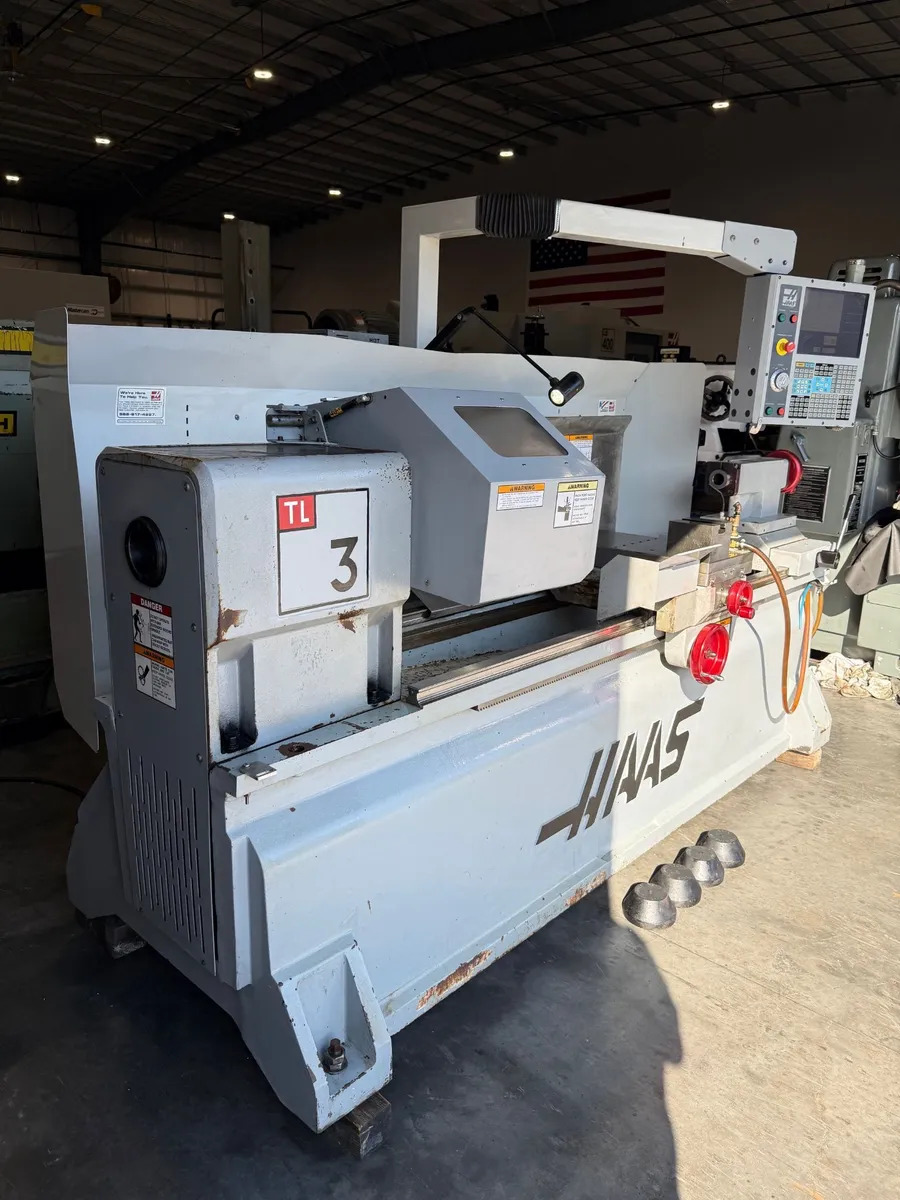

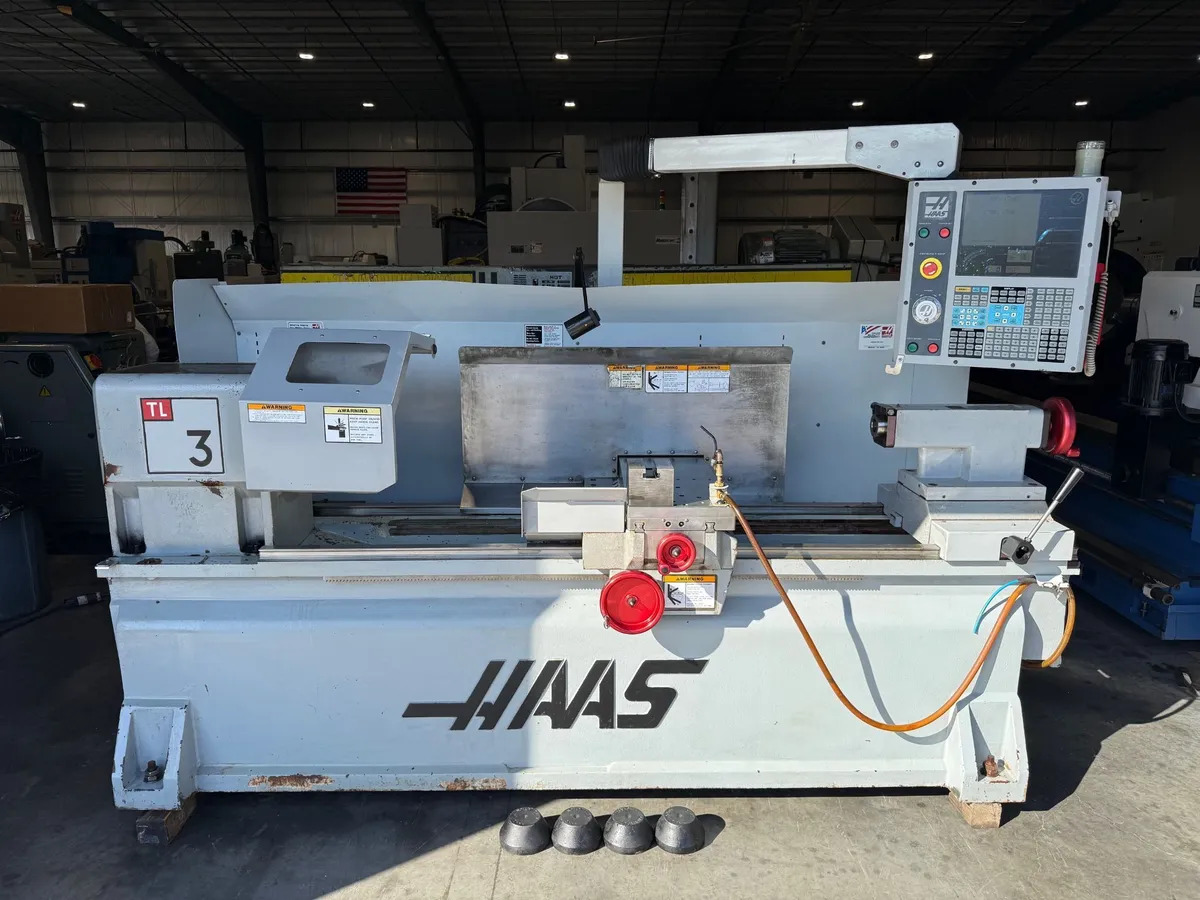

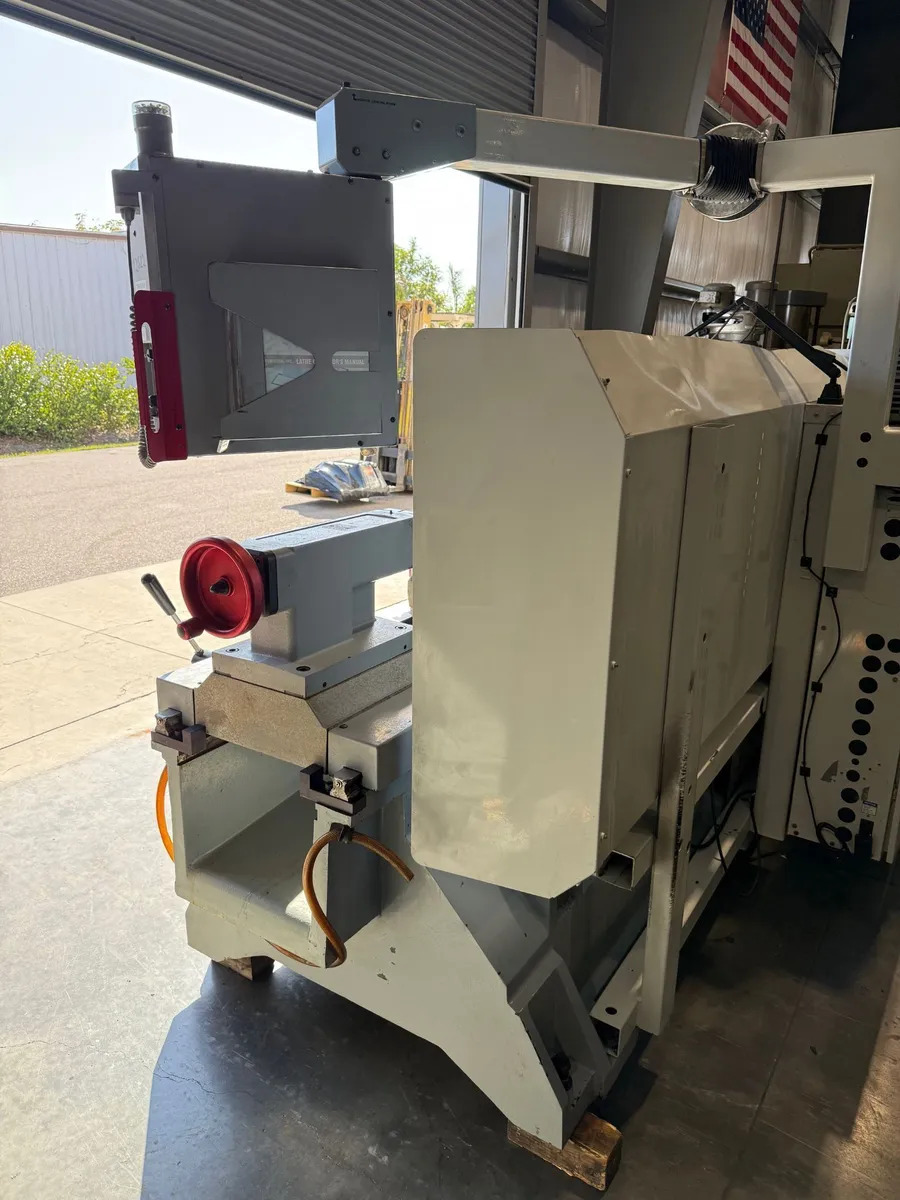

Haas TL-3 CNC Lathe – 2006
CNC Lathes • Stock #31212
Browse used Haas machines →Browse used CNC lathes & turning centers →Research Haas CNC lathe specifications →
Machine Highlights
20" Swg, 60" centers, 3.5" broe, 18 hp, 1800 rp, tailstock, 12" chuck
Year2006
ManufacturerHaas
ModelTL-3
Control
Stock #31212
Specifications
Capacity:
Swing20 "
Swing Over Cross Slide13 "
Maximum Machining Diameter16 "
Distance Between Centers60 "
Spindle:
Spindle Speed: Minimum (RPM)0 rpm
Maximum1800 rpm
Spindle Bore3.5 "
Main Motor18 hp
Spindle NoseA2-6
X-Axis Travel12 "
Z-Axis Travel60 "
Equipment & Options
Equipped With:Haas 2-Axis CNC Control
Quick Code
12” 4 Jaw Chuck
Tailstock
Hand Wheels
Machine Overview
This 2006 Haas TL-3 CNC Lathes is configured for productive CNC turning applications. Key specifications include 20″ swing, 16″ maximum machining diameter, 60″ machining length/center capacity, 3.5″ spindle bore, spindle speeds up to 1800 rpm, 18 hp spindle power.
The machine is equipped with Haas 2-Axis CNC Control, Quick Code, 12” 4 Jaw Chuck, Tailstock, Hand Wheels.
